Installation Procedure

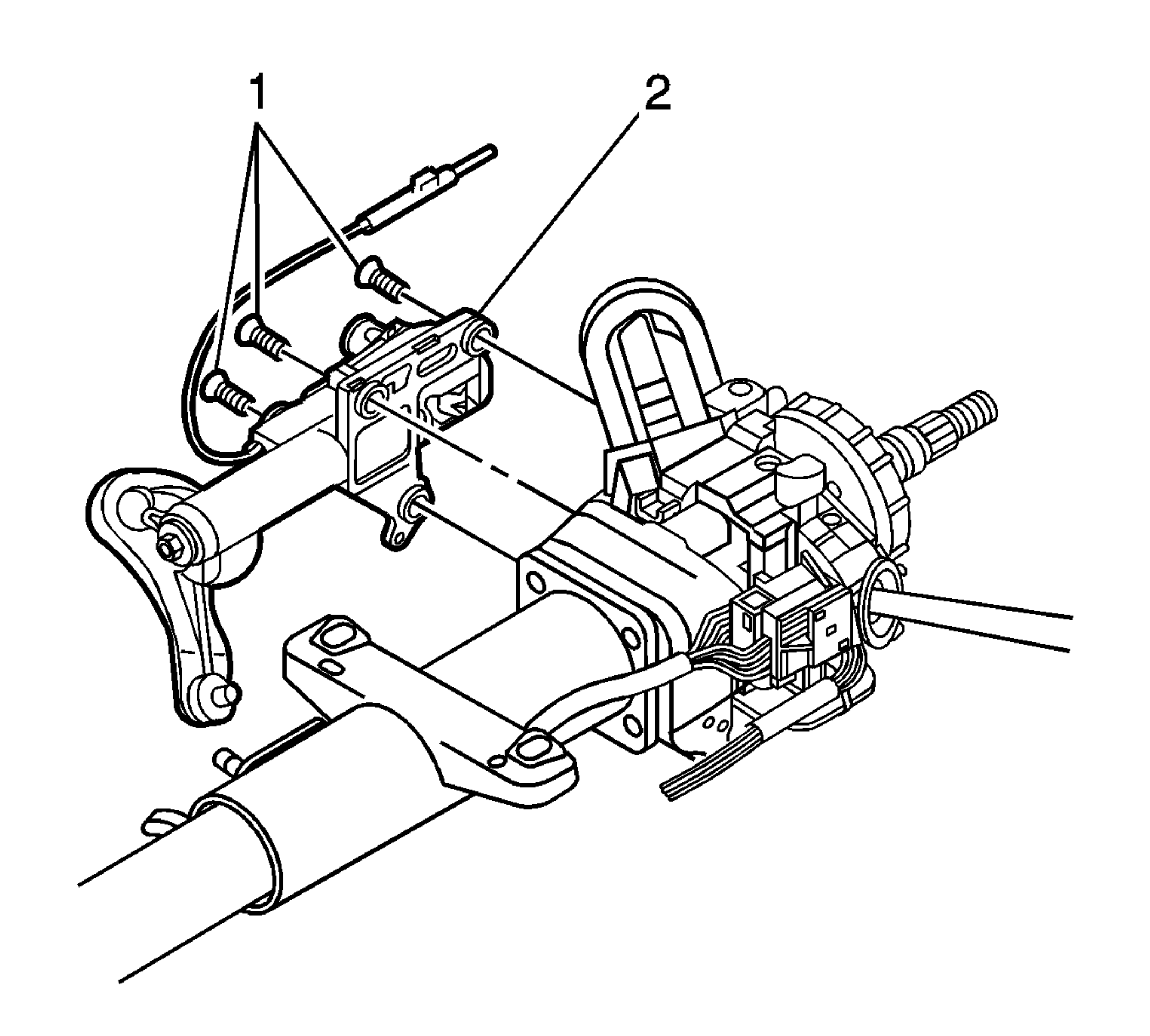

    Fig 1: View Of AT Control & Bolts
    GM1858765Courtesy of GENERAL MOTORS COMPANY
  1. Install the automatic transmission control (2).
    2. CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Move the automatic transmission control as needed to install all the automatic transmission control bolts.

  2. Install the automatic transmission control bolts (1) and tighten to 10 N.m (89 lb in).

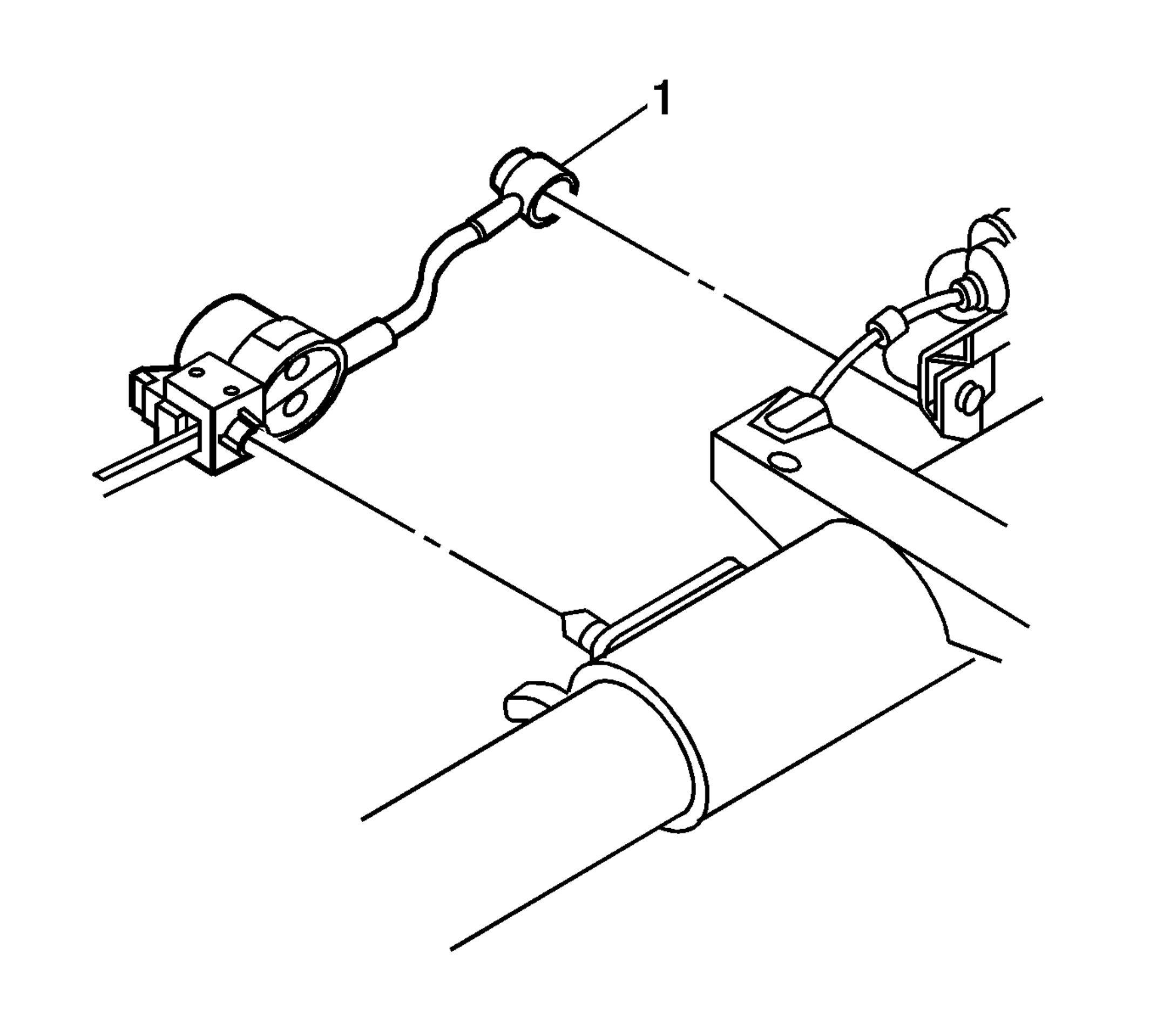

    3. Fig 2: View Of AT Shift Lock Control Actuator
    GM1858766Courtesy of GENERAL MOTORS COMPANY
  3. Connect the automatic transmission shift lock control actuator (1) to the automatic transmission control.
    4. Fig 3: Identifying Park Lock Cable At Ignition Lock Cylinder
    GM324874Courtesy of GENERAL MOTORS COMPANY
  4. Connect the automatic transmission park lock cable (1).
    1. Place the ignition lock cylinder into the OFF position.
    2. Place the automatic transmission control into the PARK position.
    3. Press the locking tab on the end of the automatic transmission park lock cable into the slot in the ignition lock cylinder case.
  5. Install the shift lever. Refer to Shift Lever Replacement .
  6. Install the steering column. Refer to Steering Column Replacement (Without HP2) , Steering Column Replacement (HP2) , Steering Column Replacement (Without HP2 With Electric Tilt Column) .
