Turn Signal Multifunction Switch Replacement

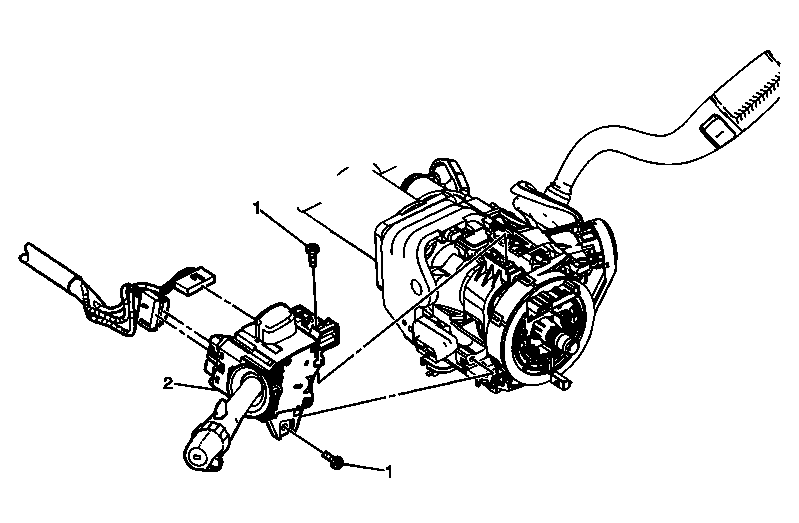

Fig 1: View Of Multifunction Turn Signal Switch & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Remove the steering wheel. Refer to Steering Wheel Replacement . Remove the steering column shroud. Refer to Steering Column Shroud Replacement (With Electronic Tilt Steering) , Steering Column Shroud Replacement (Without Electronic Tilt Steering) .
1	Turn Signal Multifunction Switch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 3 (27 lb in)
2	Turn Signal Multifunction Switch Procedure Disconnect any electrical connectors as needed. NOTE: The wiper and washer switches are integral to the turn signal multifunction switch.

Callout

Component Name

WARNING:

Preliminary Procedure

Turn Signal Multifunction Switch Bolt (Qty: 2)

CAUTION:

Tighten
3 (27 lb in)

Turn Signal Multifunction Switch
Procedure
Disconnect any electrical connectors as needed.

NOTE:

The wiper and washer switches are integral to the turn signal multifunction switch.
