Seat Temperature Control Module: Locations

Passenger Compartment/Roof Component Views

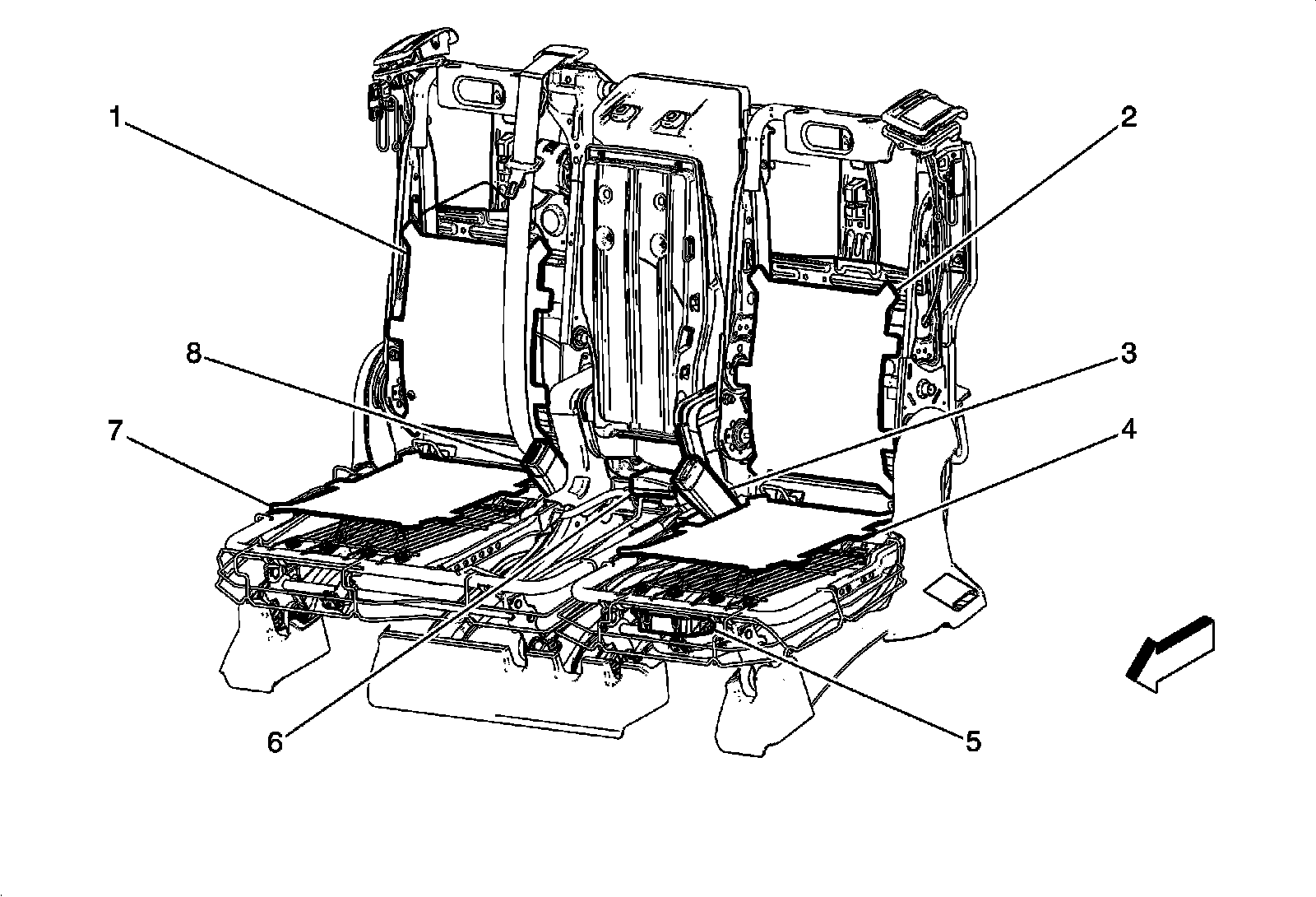

Rear Passenger Seat Components




1 - E14G Seat Heating Element - Right Rear Back (KA6)
2 - E14E Seat Heating Element - Left Rear Back (KA6)
3 - B88LR Seat Belt Switch - Left Rear
4 - E14F Seat Heating Element - Left Rear Cushion (KA6)
5 - K29R Seat Heating Control Module - Rear (KA6)
6 - B88MR Seat Belt Switch - Rear Middle
7 - E14H Seat Heating Element - Right Rear Cushion (KA6)
8 - B88RR Seat Belt Switch - Right Rear
