Arm/Disarm Switch, Antitheft

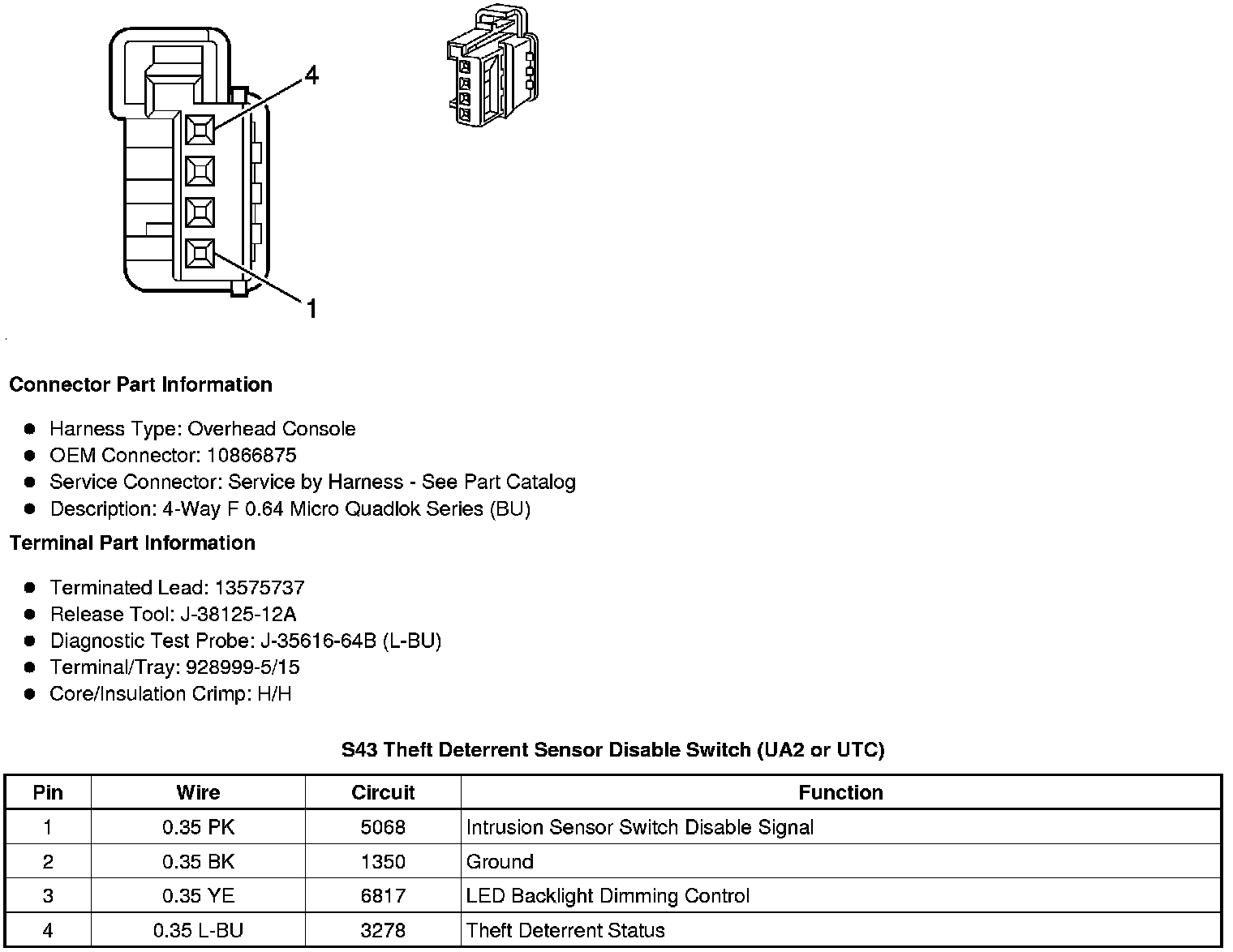

Component Connector End Views
S43 Theft Deterrent Sensor Disable Switch (UA2 or UTC)
