Front Object Sensor - Left Middle (UD5)

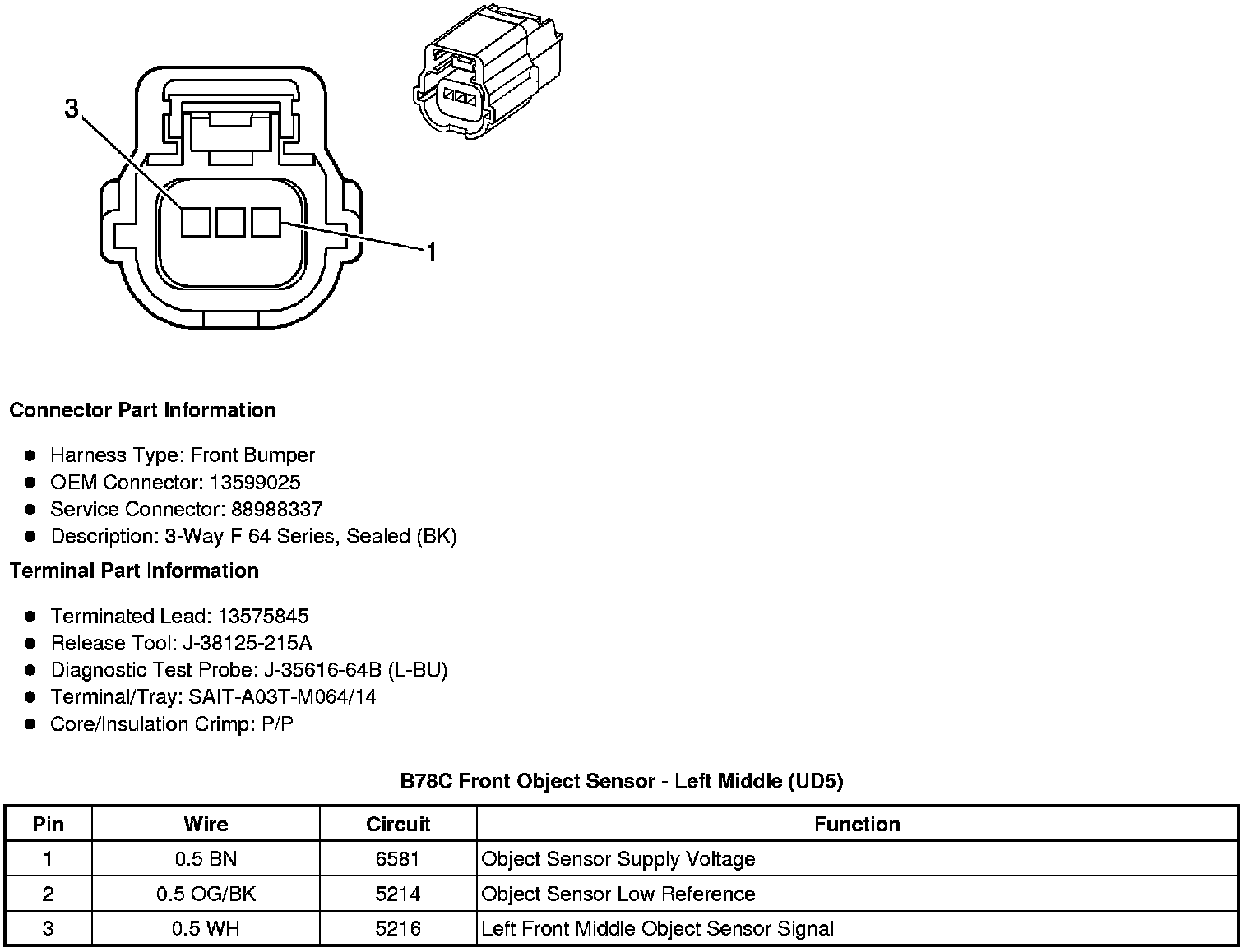

Component Connector End Views
B78C Front Object Sensor - Left Middle (UD5)
