Headlamp Leveling Control Module X1 (TT6, TT7, or TT8)

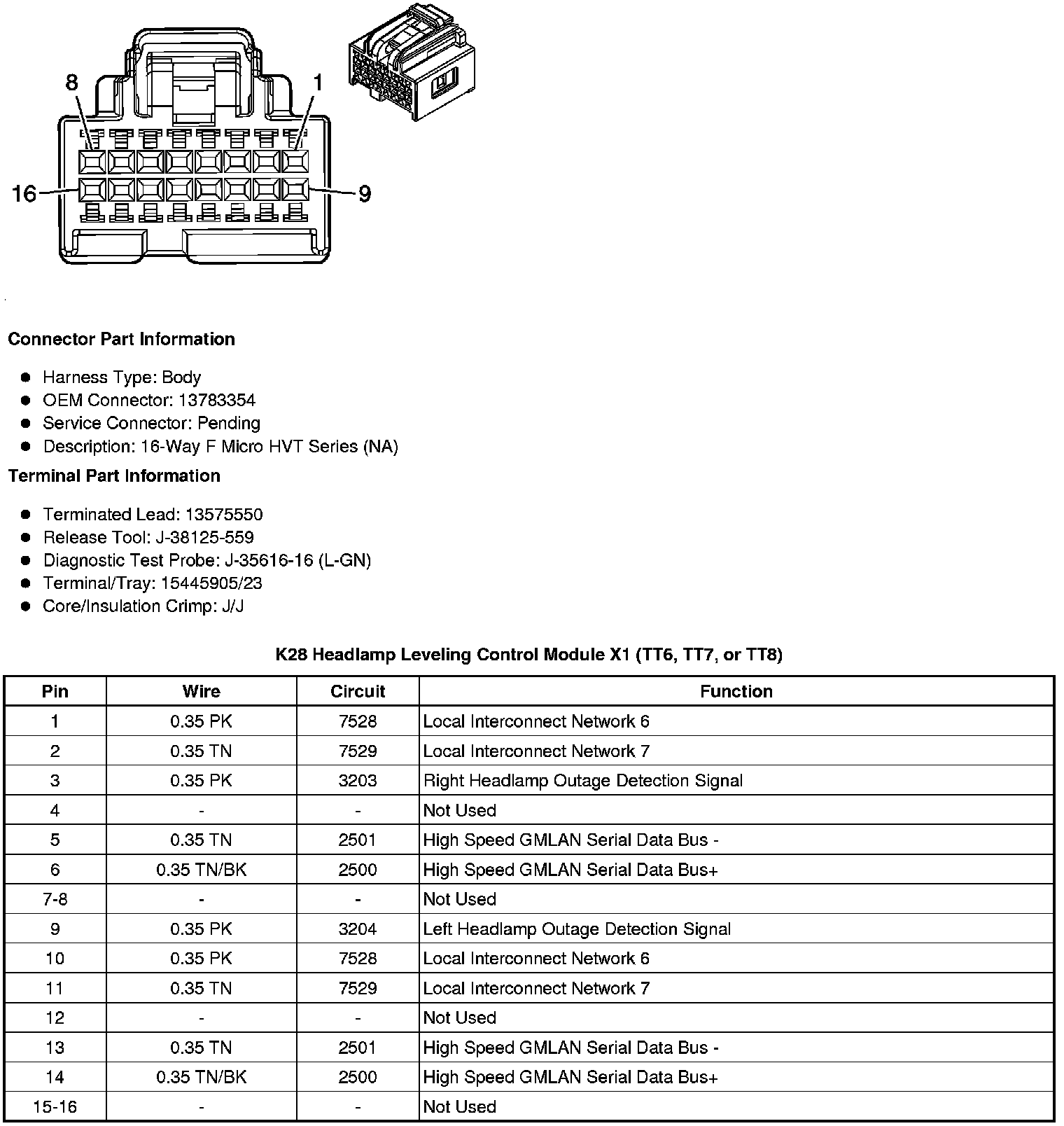

Component Connector End Views
K28 Headlamp Leveling Control Module X1 (TT6, TT7, or TT8)
