Trailer Lighting Module: Locations

Luggage Compartment/Rear of Vehicle Component Views

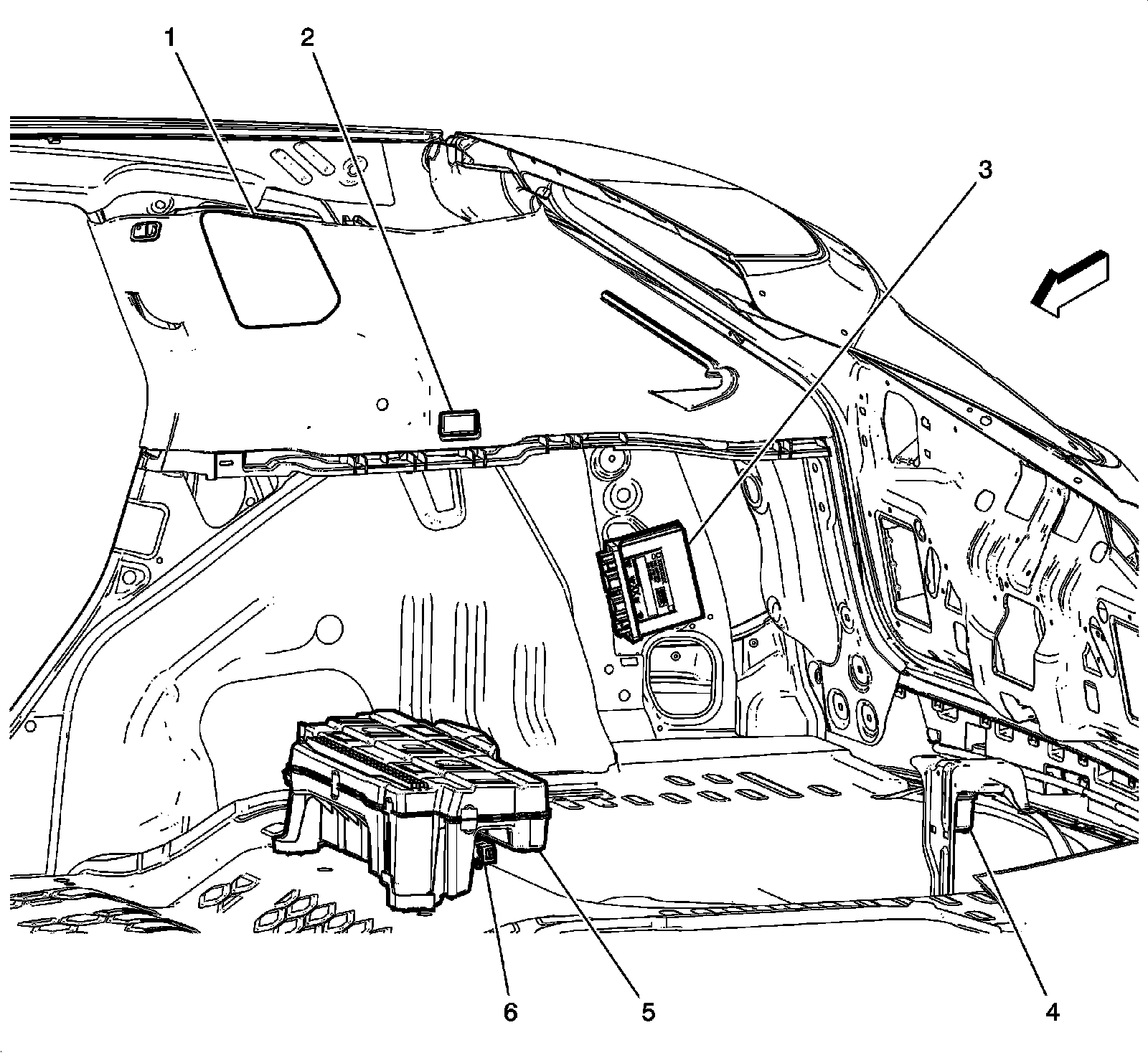

Right Side of the Luggage Compartment Components




1 - B67A Ultrasonic Intrusion Sensor 1
2 - E33R Cargo Lamp - Right
3 - K84 Keyless Entry Control Module
4 - K68 Trailer Lighting Control Module
5 - P19AC Speaker - Subwoofer
6 - T10E Keyless Entry Antenna - Rear Compartment
