Fuel Pressure Sensor: Locations

Wheels/Vehicle Underbody Component Views

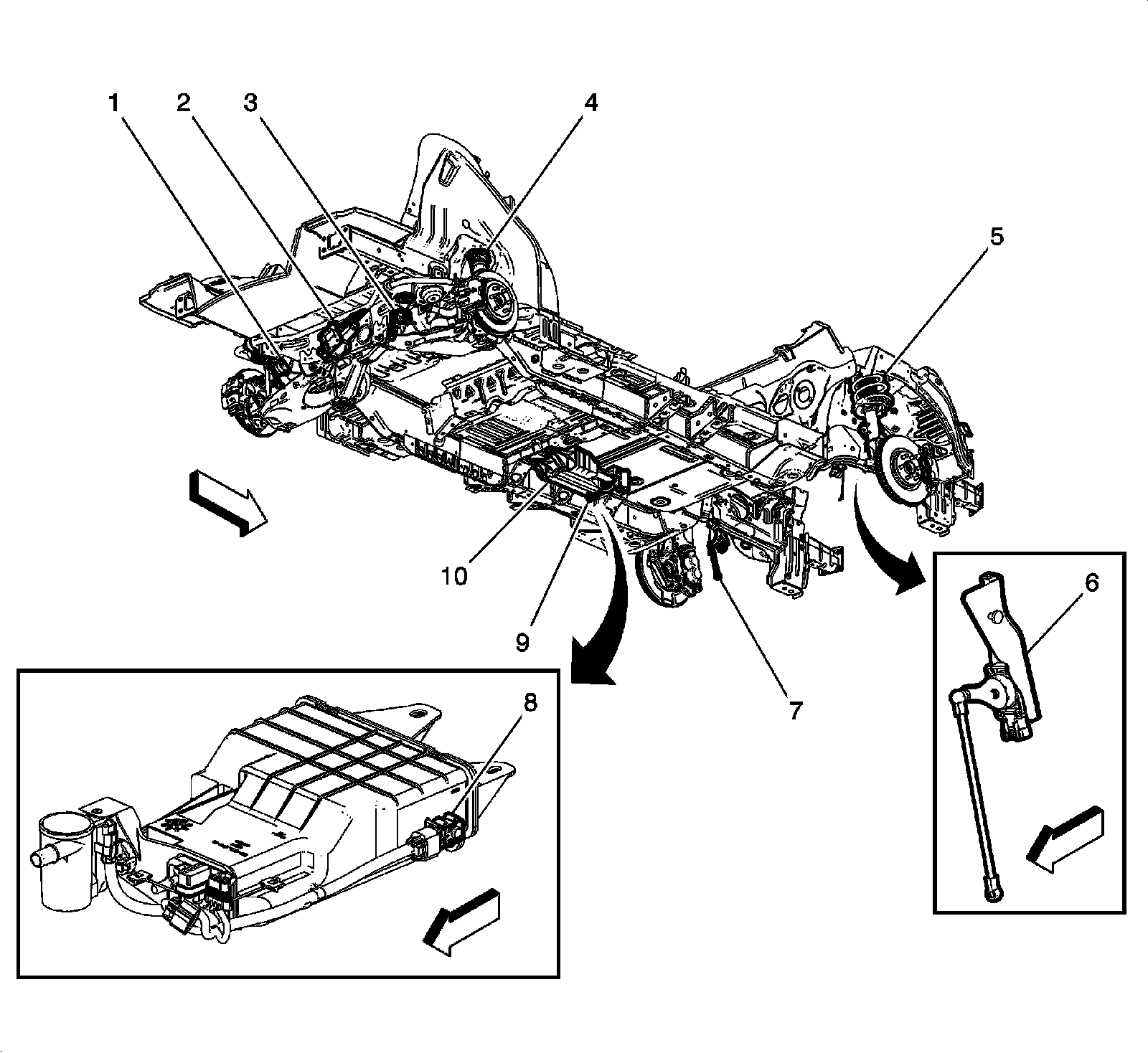

Right Rear Frame and Underbody Components




1 - B51R Headlamp Leveling Sensor - Rear (T84 or T85)
2 - K83 Parking Brake Control Module
3 - B152RR Suspension Position Sensor - Right Rear (F55)
4 - Q37RR Shock Absorber Actuator - Right Rear (F45)
5 - Q37RF Shock Absorber Actuator - Right Front (F45)
6 - B152RF Suspension Position Sensor - Right Front (F55)
7 - B51F Headlamp Leveling Sensor - Front (T84 or T85)
8 - B150 Fuel Tank Pressure Sensor
9 - B47 Fuel Pressure Sensor
10 - Q13 Evaporative Emission Vent Solenoid Valve
