Radio Control Assembly Replacement

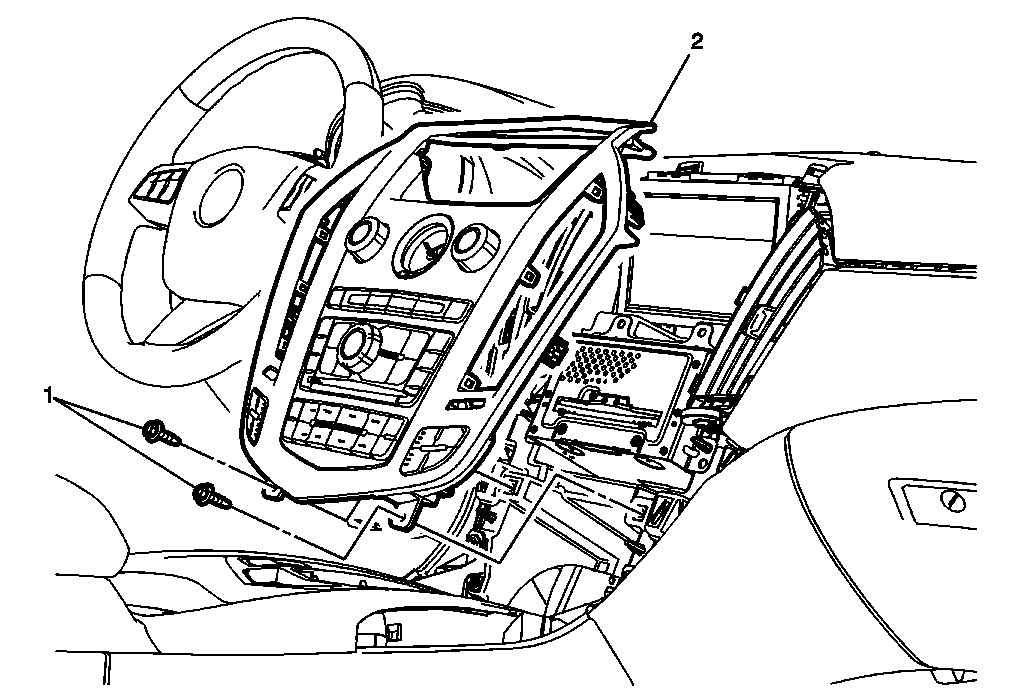

Fig 1: Radio Control Assembly

GM2729803

Courtesy of GENERAL MOTORS COMPANY

Radio Control Assembly Replacement

Callout

Component Name

Preliminary Procedure

Remove the navigation information display bezel (must be in the up position). Refer to Navigation Information Display Bezel Replacement .
Remove the front floor console trim plate assembly. Refer to Front Floor Console Trim Plate Replacement
Remove the instrument panel center compartment. Refer to Instrument Panel Center Compartment Replacement .

1

Radio Control Screws (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Radio Control Assembly

Procedure

Disconnect the electrical connections.
When replacing the radio control assembly, transfer all necessary components.
Refer to Control Module References for programming and setup information.
