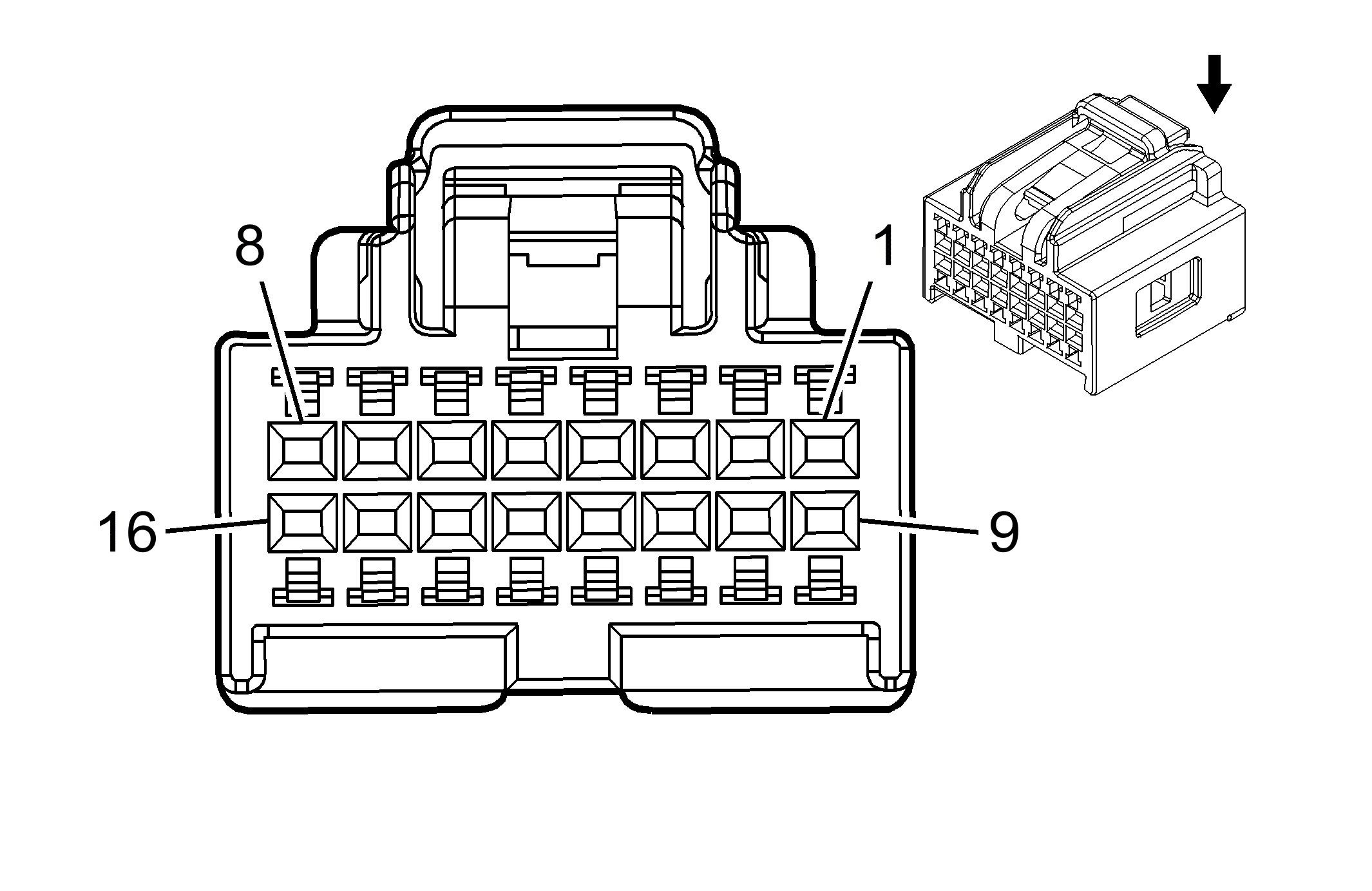

A13 Rear Audio Control Module (ULD)
 Courtesy of
|
Connector Part Information
- Harness Type: Floor Console
- OEM Connector: 13783350
- Service Connector: 13580577
- Description: 16-Way F Mirco HVT Series (GY)
|
Terminal Part Information
- Terminated Lead: 13575550
- Release Tool: J-38125-559
- Diagnostic Test Probe: J-35616-16 (L-GN)
- Terminal/Tray: 15445905/23
- Core/Insulation Crimp: J/J
|
A13 Rear Audio Control Module (ULD)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 L-BU |
5312 |
RSA Left Audio Signal |
| 2 |
0.35 L-GN |
5313 |
RSA Right Audio Signal |
| 3 |
0.35 TN |
3352 |
RSA Audio Common Signal |
| 4-5 |
- |
- |
Not Used |
| 6 |
0.35 D-GN |
5060 |
Low Speed GMLAN Serial Data |
| 7 |
- |
- |
Not Used |
| 8 |
0.35 BK/WH |
1551 |
Ground |
| 9 |
0.35 OG/BK |
5329 |
Left Rear Low Level Audio Signal (+) (UWG) |
| 10 |
0.35 PU/WH |
5330 |
Right Infrared Audio Signal (UWG) |
| 11 |
0.35 D-BU/WH |
3360 |
Infra Red Audio Common Signal (UWG) |
| 12 |
0.35 BARE |
5332 |
Infra Red Audio Drain Wire (UWG) |
| 13-15 |
- |
- |
Not Used |
| 16 |
0.35 RD/WH |
3240 |
Battery Positive Voltage |
