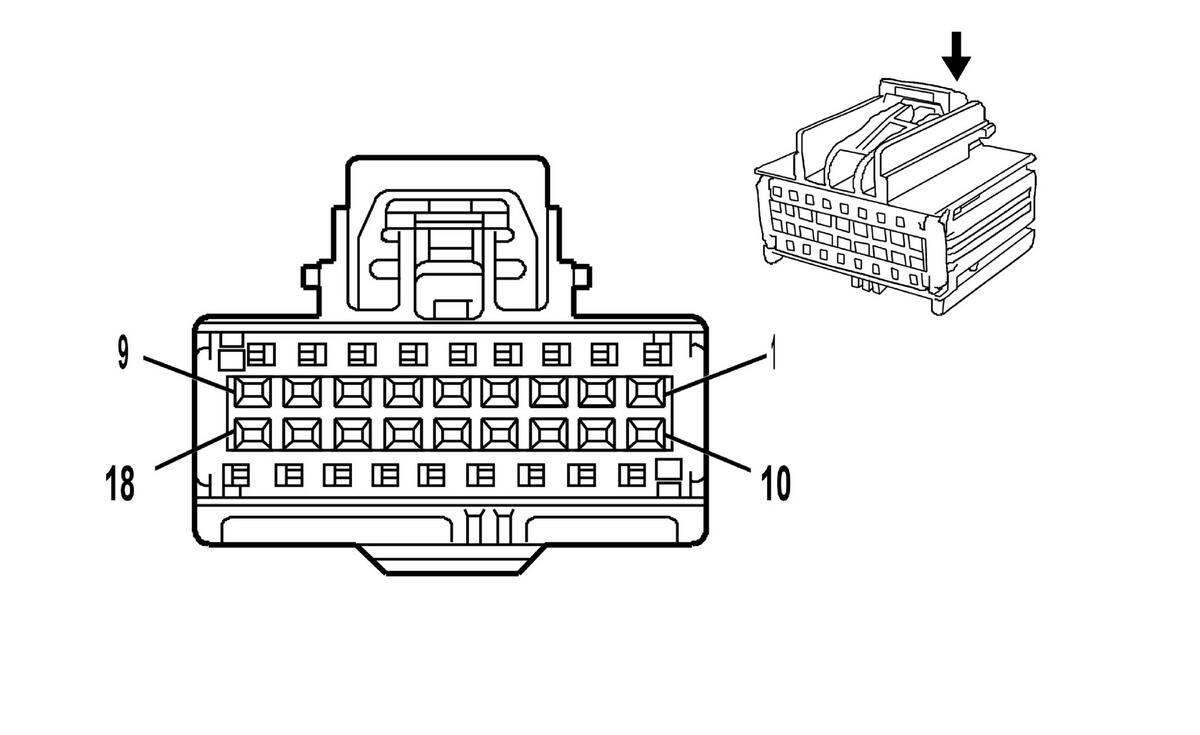

K40 Seat Memory Control Module X1 (AAB)
 Courtesy of
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 13548562
- Service Connector: 89047360
- Description: 18-Way F 0.64 Kaizen Series (BK)
|
Terminal Part Information
- Terminated Lead: Pins: 1, 5-6, 9-11, 15-18 - 13575867
- Terminated Lead: Pins: 2-4, 7-8, 12-13 - 13575845
- Release Tool: J-38125-215A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: SAIT-A03T-M064/14
- Core/Insulation Crimp: P/P
|
K40 Seat Memory Control Module X1 (AAB)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 WH |
5908 |
Right Heated/Cooled Seat Mode Signal |
| 2 |
0.5 D-GN |
1518 |
Power Seat Front Vertical Up Switch Signal |
| 3 |
0.5 YE |
1519 |
Power Seat Rear Vertical Up Switch Signal |
| 4 |
0.5 L-BU |
1521 |
Power Seat Rear Vertical Down Switch Signal |
| 5 |
0.35 PU |
5286 |
Adjustable Pedals Forward Switch Signal |
| 6 |
0.35 OG/BK |
5285 |
Adjustable Pedals Rearward Switch Signal |
| 7 |
0.5 GY/BK |
1269 |
Power Seat Recline Forward Switch Signal |
| 8 |
0.5 D-GN/WH |
1270 |
Power Seat Recline Rearward Switch Signal |
| 9 |
0.35 TN |
6207 |
Memory Sensor High Reference |
| 10 |
0.35 D-GN |
5906 |
Left Heated/Cooled Seat Mode Signal |
| 11 |
0.35 WH |
7530 |
Local Interconnect Network 8 |
| 12 |
0.5 D-BU |
1520 |
Power Seat Front Vertical Down Switch Signal |
| 13 |
0.5 OG/WH |
3298 |
Reference Voltage |
| 14 |
- |
- |
Not Used |
| 15 |
0.35 D-GN |
569 |
Horizontal Seat Motor Position Sensor Signal |
| 16 |
0.35 TN |
568 |
Rear Vertical Seat Motor Position Sensor Signal |
| 17 |
0.35 BN/WH |
557 |
Front Vertical Seat Motor Position Sensor Signal |
| 18 |
0.35 WH/BK |
570 |
Driver Seat Recline Motor Position Sensor Signal |
