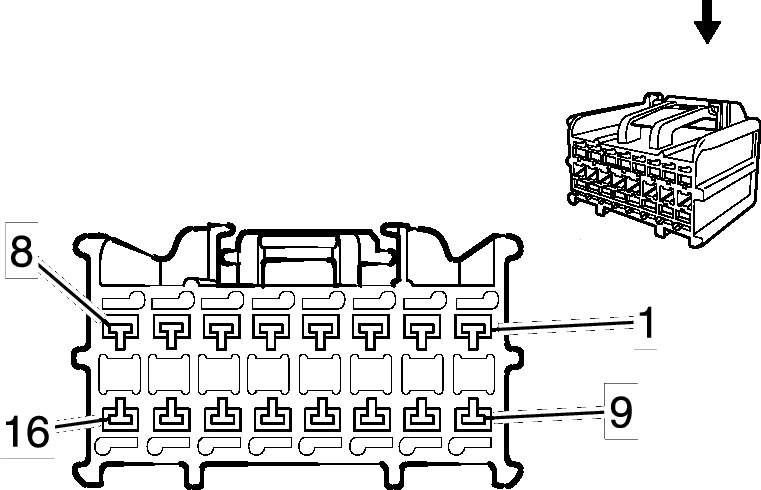

K40 Seat Memory Control Module X3 (AAB)
 Courtesy of
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 13520382
- Service Connector: 13503876
- Description: 16-Way F GT FBT 150 (BK)
|
Terminal Part Information
- Pins: 1, 12
- Terminated Lead: 13575480
- Release Tool: J-38125-29
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 13526680/Not Available
- Core/Insulation Crimp: Not Available
- Pins: 4, 6, 10-11
- Terminated Lead: 13575480
- Release Tool: J-38125-29
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 13526678/PO
- Core/Insulation Crimp: 2/A
|
K40 Seat Memory Control Module X3 (AAB)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 PK |
2435 |
Passenger Heated Seat Cushion Temperature Sensor Low Reference |
| 2-3 |
- |
- |
Not Used |
| 4 |
0.8 L-BU |
2433 |
Passenger Heated Seat Back Element Control |
| 5 |
- |
- |
Not Used |
| 6 |
0.8 PU |
2424 |
Driver Heated Seat Back Element Control |
| 7-9 |
- |
- |
Not Used |
| 10 |
0.8 D-BU |
2479 |
Passenger Heated Seat Element Supply Voltage |
| 11 |
0.8 PK |
2077 |
Heated Seat Cushion Element Supply Voltage |
| 12 |
0.35 YE |
2080 |
Driver Heated Seat Cushion Temperature Sensor Low Reference |
| 13-16 |
- |
- |
Not Used |
