Passive Entry Door Lock References (ATH)

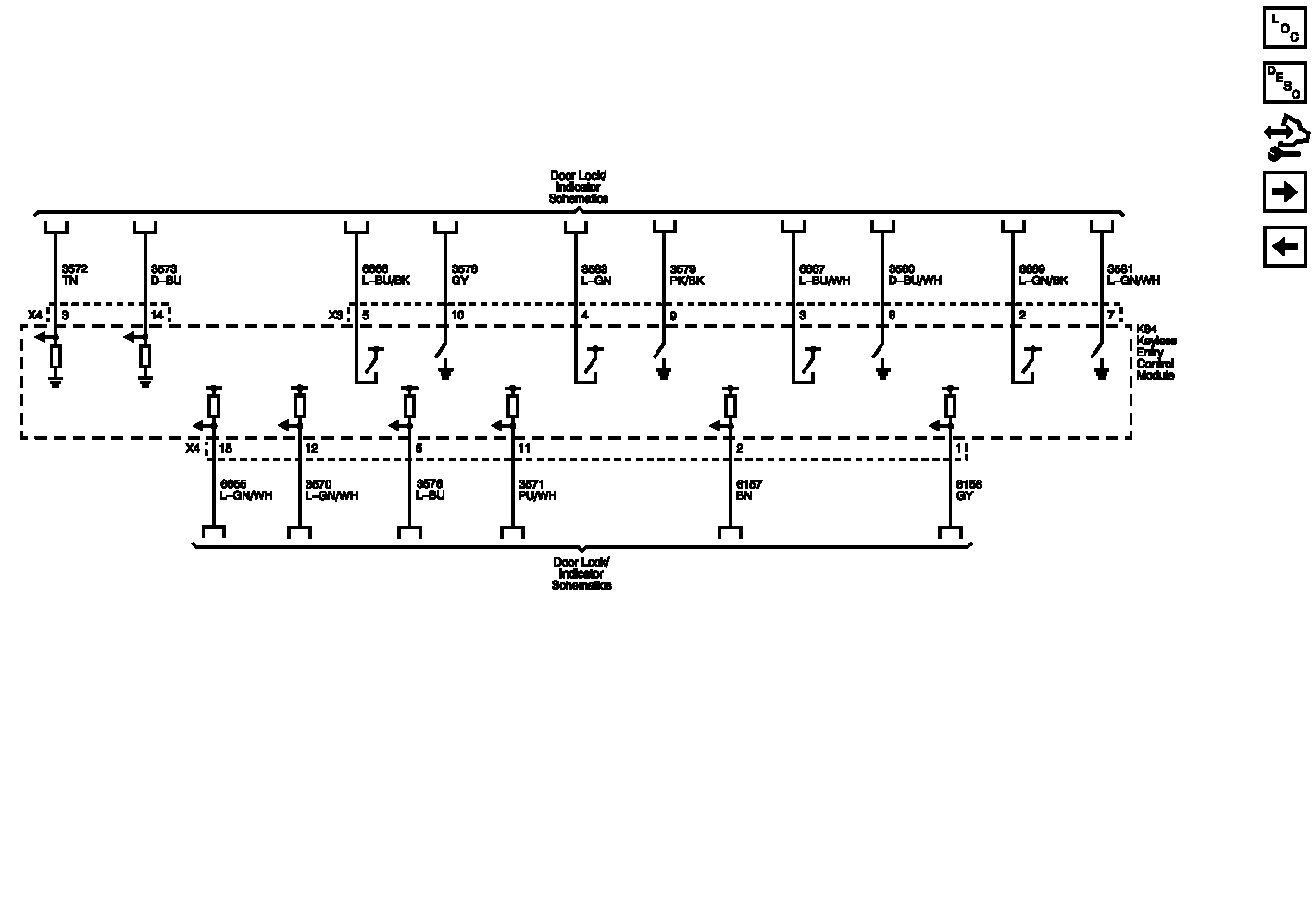

Fig 1: Passive Entry Door Lock References (ATH) Wiring Schematic
GM2624965Courtesy of GENERAL MOTORS COMPANY
