Remote Device Enable

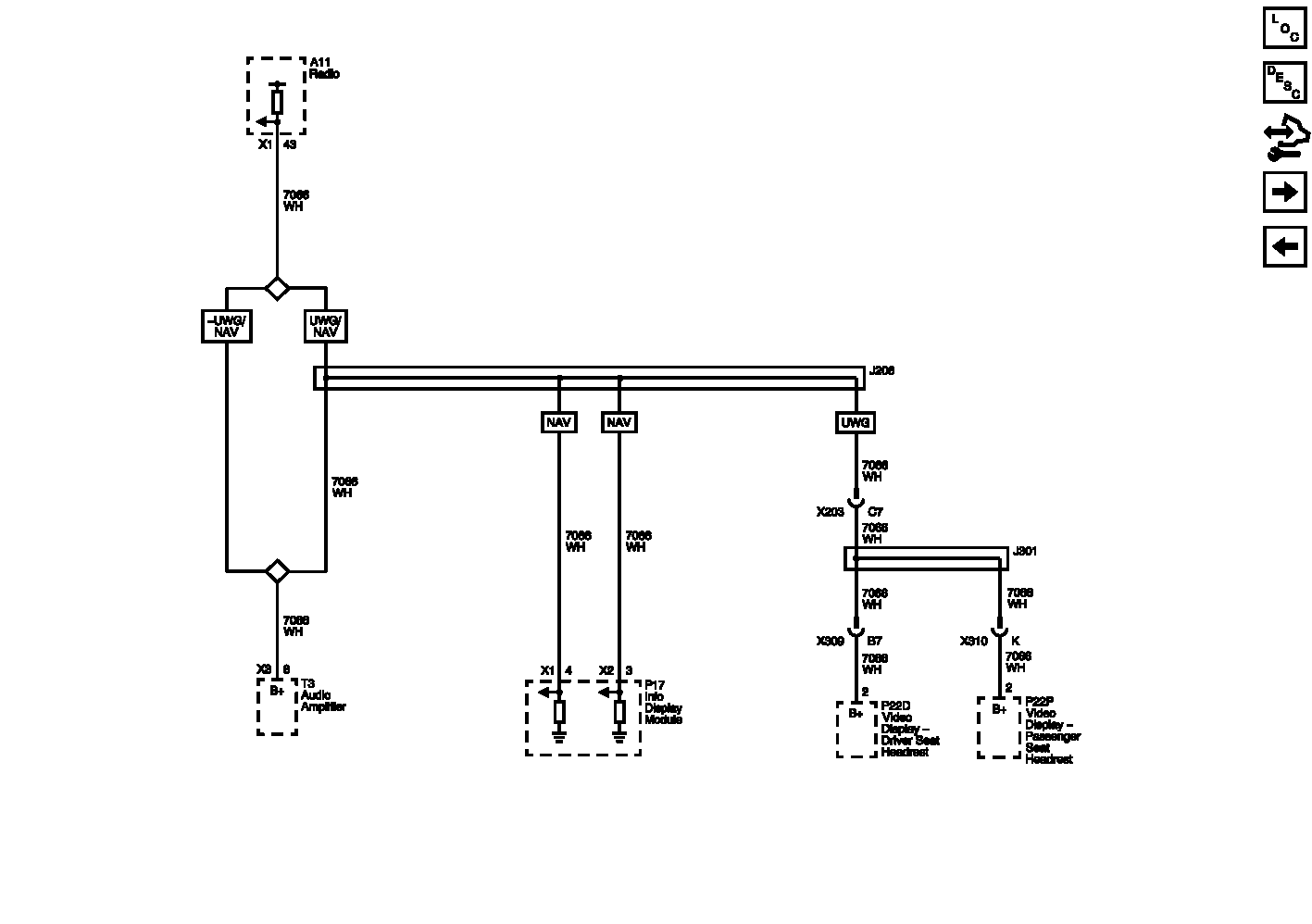

Fig 1: Remote Device Enable Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
