Traffic Data (UYW)

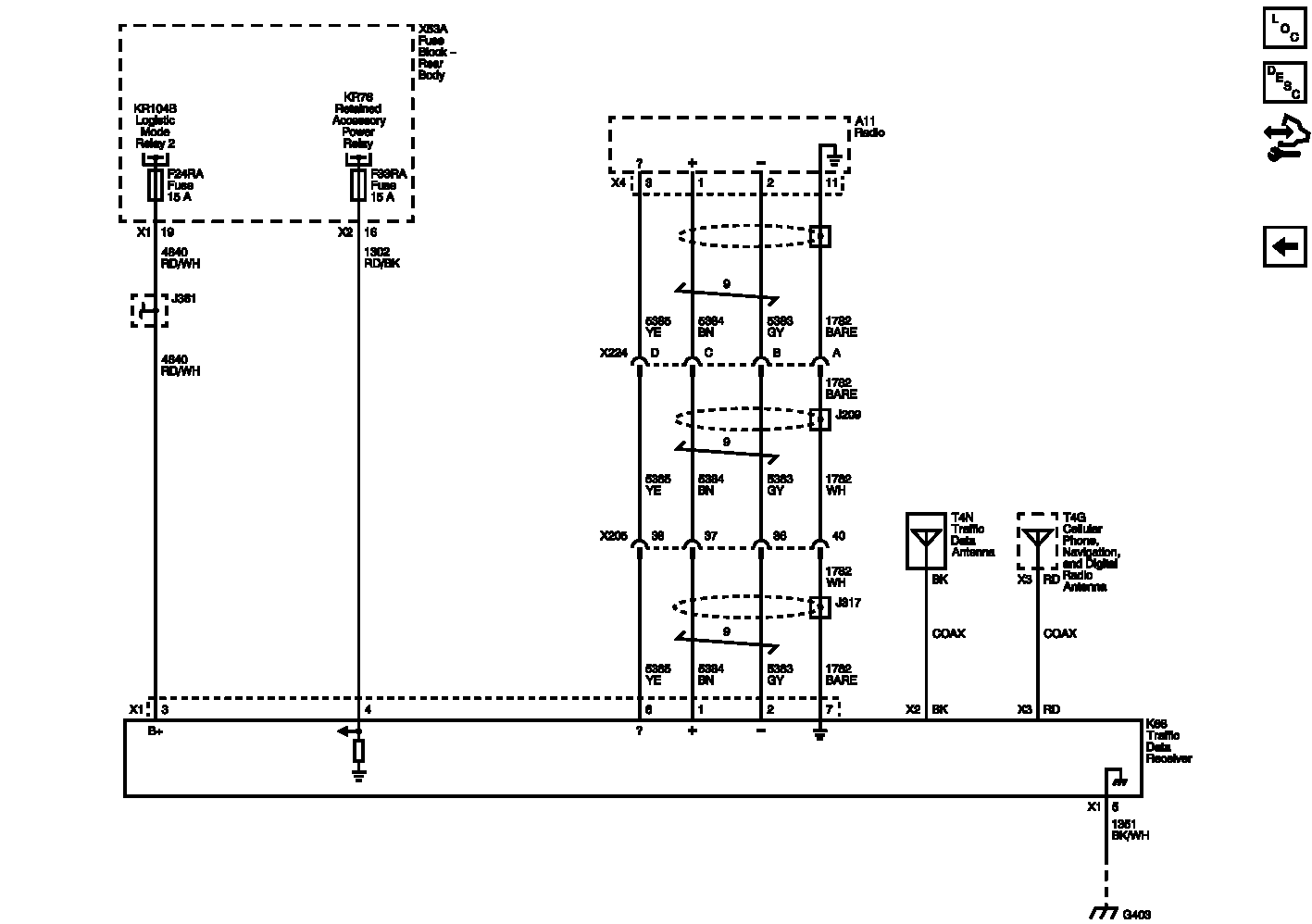

Fig 1: Traffic Data (UYW) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
