Accelerator Pedal with Position Sensor Assembly Replacement

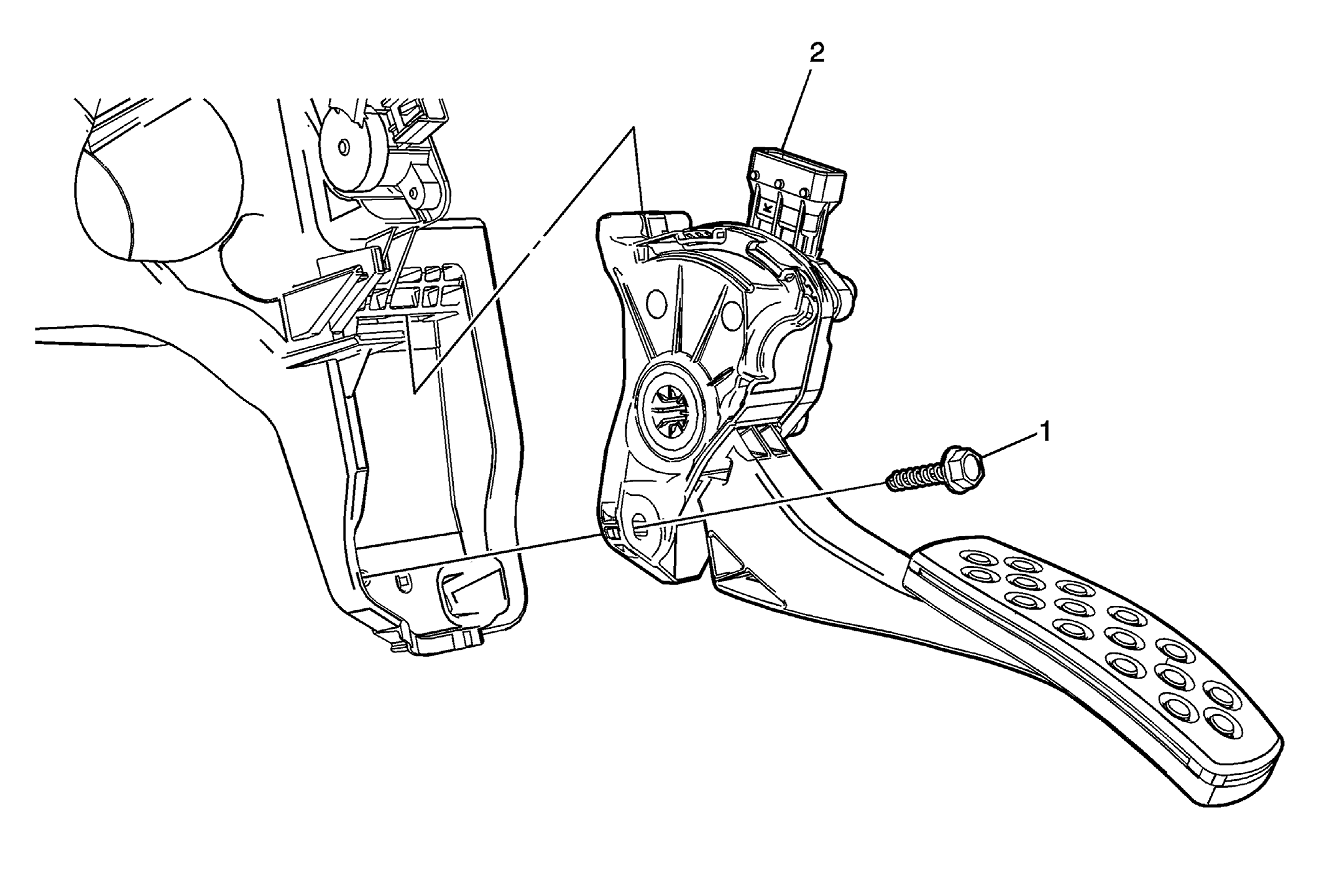

Fig 1: Identifying Accelerator Pedal With Position Sensor Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Accelerator Pedal Position Sensor Assembly Bolt CAUTION: Refer to Fastener Caution Tighten 9 N.m(80 lb in)
2	Accelerator Pedal Position Sensor Assembly
