Heater and Air Conditioning and Radio Control Module Replacement
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

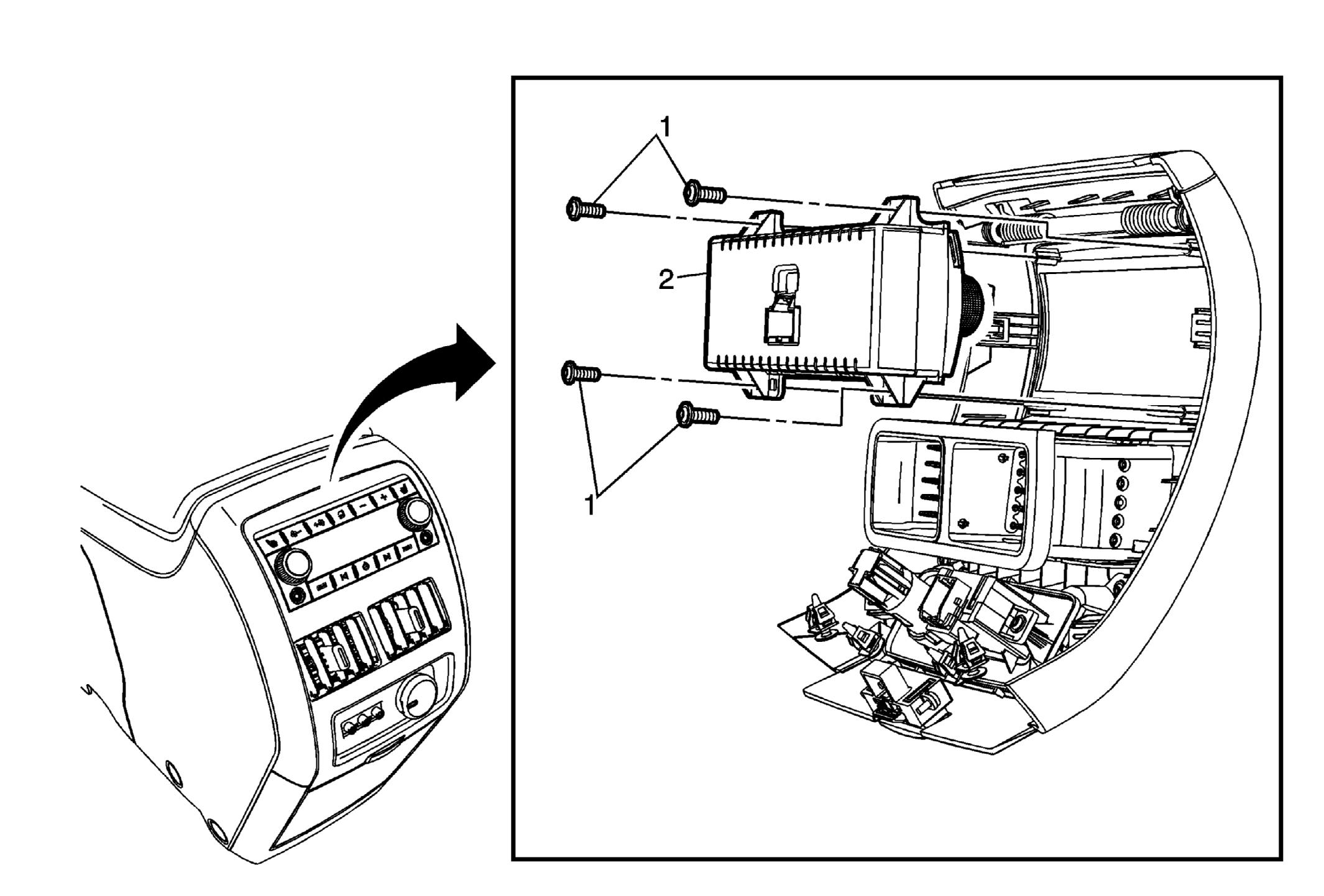

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console rear trim panel - upper. Refer to Front Floor Console Rear Trim Panel Replacement - Upper . |
|
| 1 | Heater and Air Conditioning and Radio Control Module Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Heater and Air Conditioning and Radio Control Module |
