Blower Motor Control Module - Auxiliary X2 (CJ4)

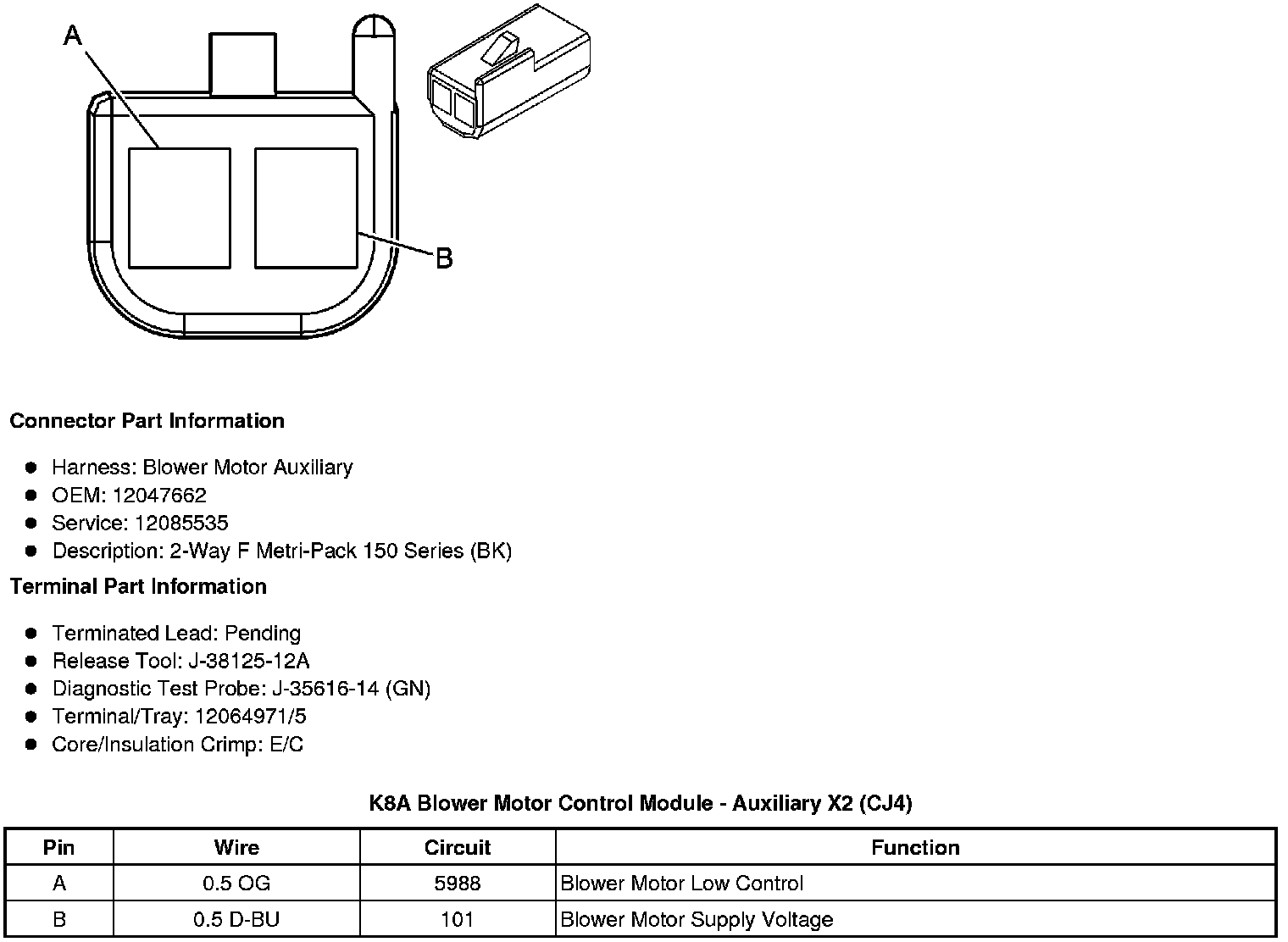

Component Connector End Views

K8A Blower Motor Control Module - Auxiliary X2 (CJ4)
