System Reference (2 of 3)

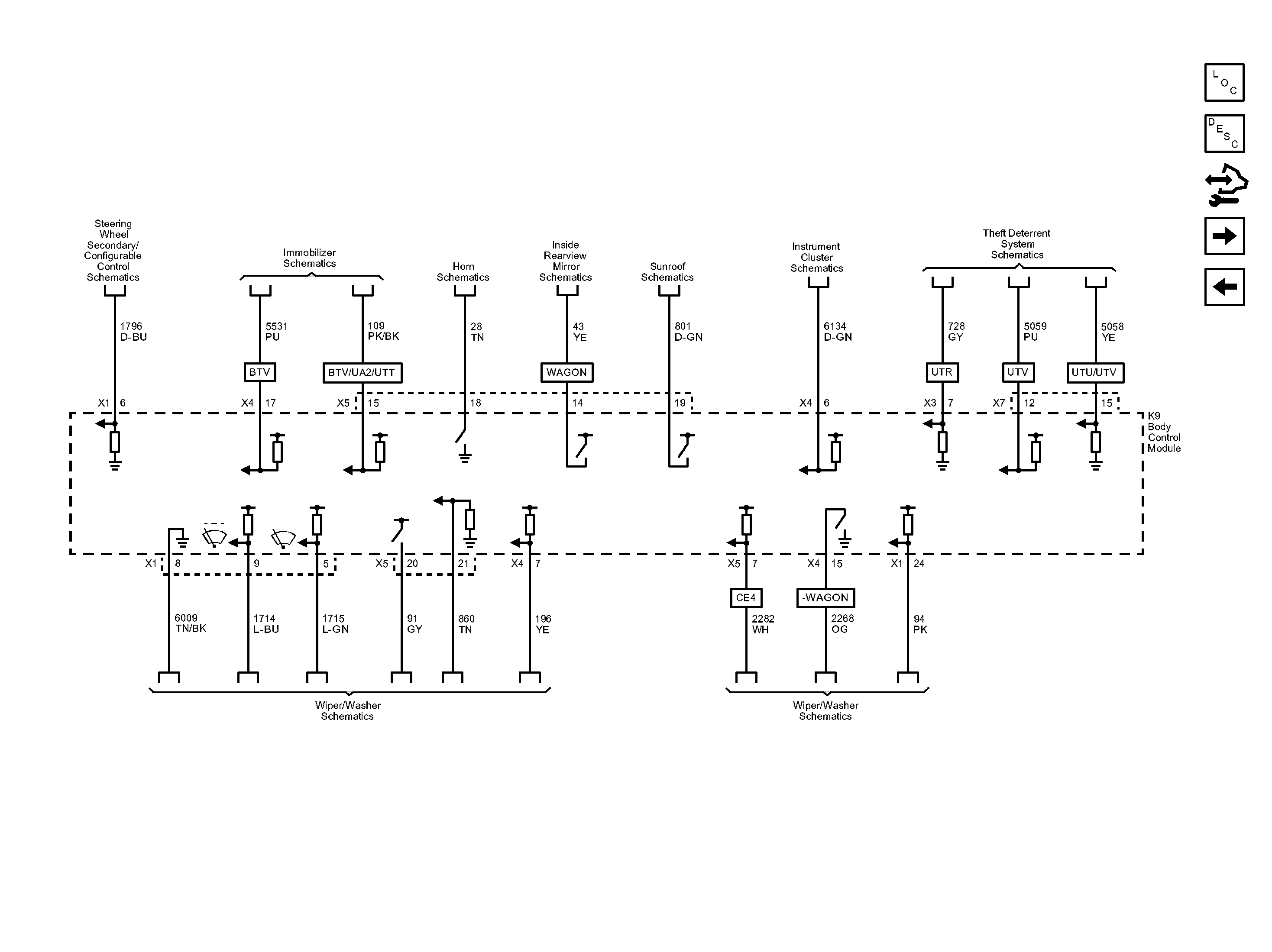

Fig 1: System Reference Wiring Schematic (2 of 3)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
