System Reference (3 of 3)

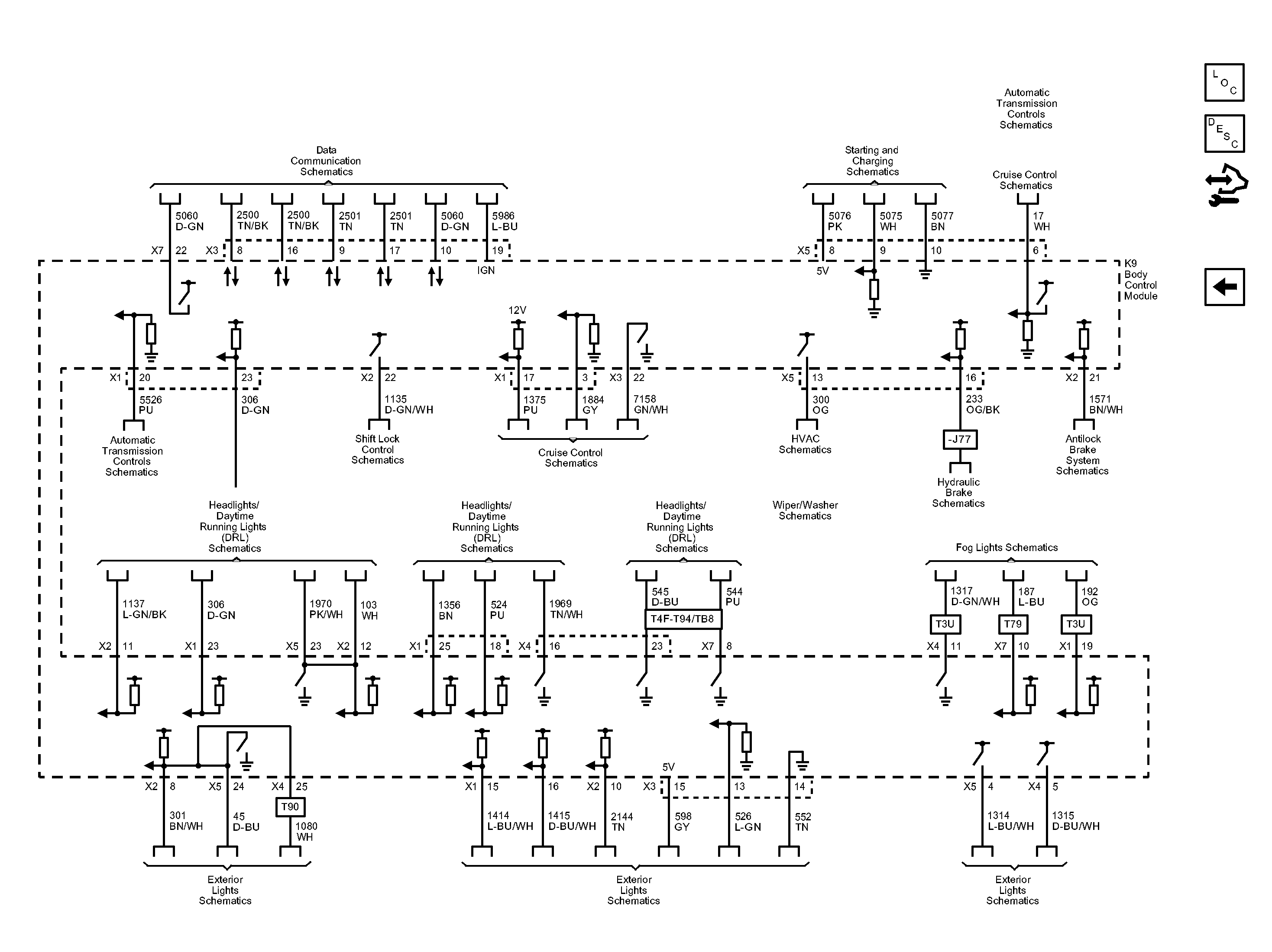

Fig 1: System Reference Wiring Schematic (3 of 3)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
