Behind the Instrument Panel Components (Left Hand Drive)

Items
1: S35 Instrument Panel Compartment Lamp Switch S35 Instrument Panel Compartment Lamp Switch
2: E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp
3: K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 (UE1)K73 Telematics Communication Interface Control Module X2 (UE1)
4: A11 Radio A11 Radio X1
5: T4P Navigation Antenna (UAV or U2Y)
6: E8J Instrument Panel Courtesy Lamp - Left E8J Instrument Panel Courtesy Lamp - Left
7: K9 Body Control Module K9 Body Control Module X1 K9 Body Control Module X2 K9 Body Control Module X3 K9 Body Control Module X4 K9 Body Control Module X5 K9 Body Control Module X6 K9 Body Control Module X7
8: E8K Instrument Panel Courtesy Lamp - Right E8K Instrument Panel Courtesy Lamp - Right
9: K33 HVAC Control Module K33 HVAC Control Module X2
10: K69 Transfer Case Control Module (MX7) K69 Transfer Case Control Module X1 (MX7)K69 Transfer Case Control Module X2 (MX7)
11: K42 Pedestrian Impact Detection Control Module (B3T) K42 Pedestrian Impact Detection Control Module X1 (B3T)K42 Pedestrian Impact Detection Control Module X2 (B3T)

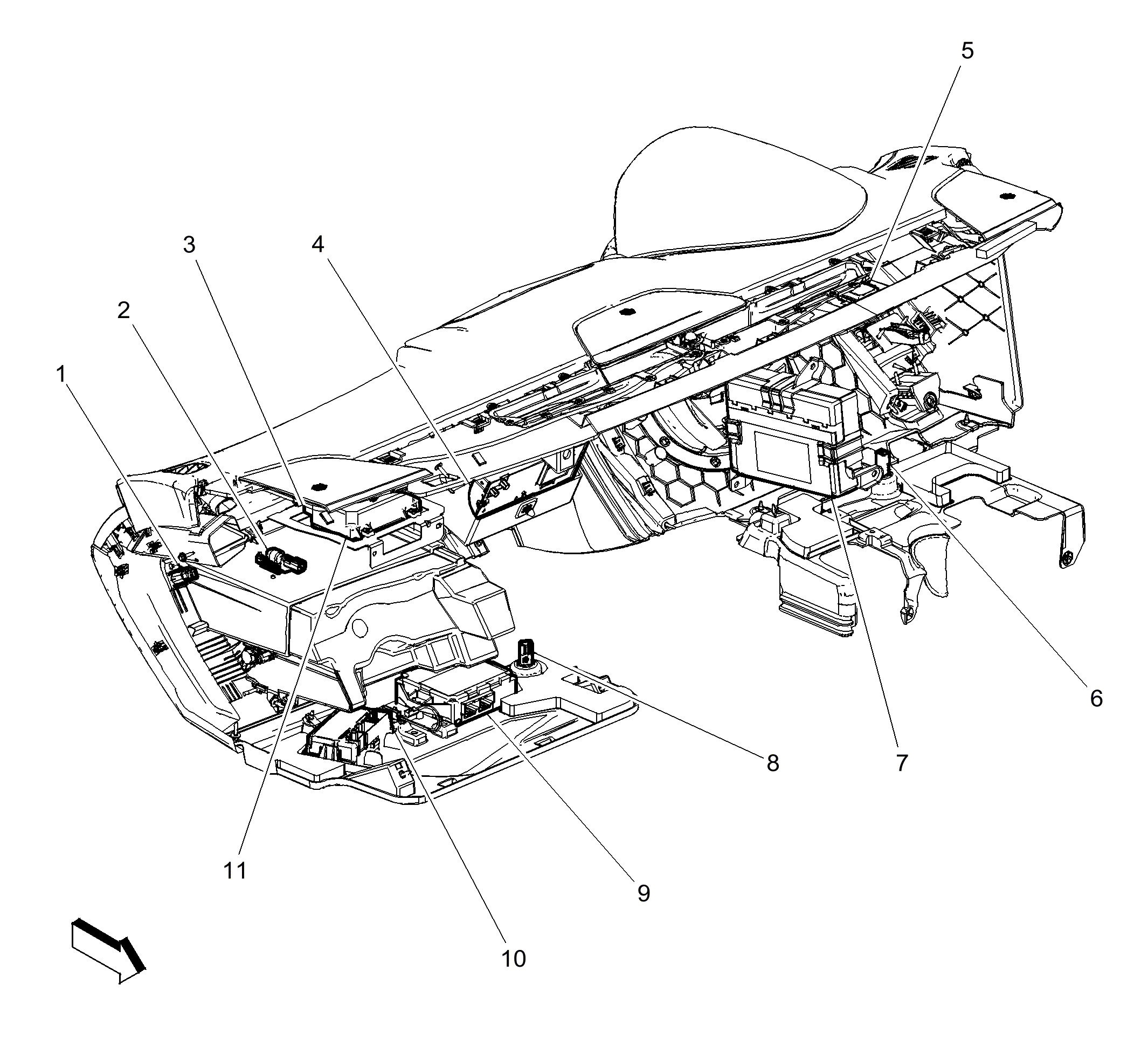

Fig 1: Behind the Instrument Panel Components (Left Hand Drive)

Courtesy of GENERAL MOTORS COMPANY
