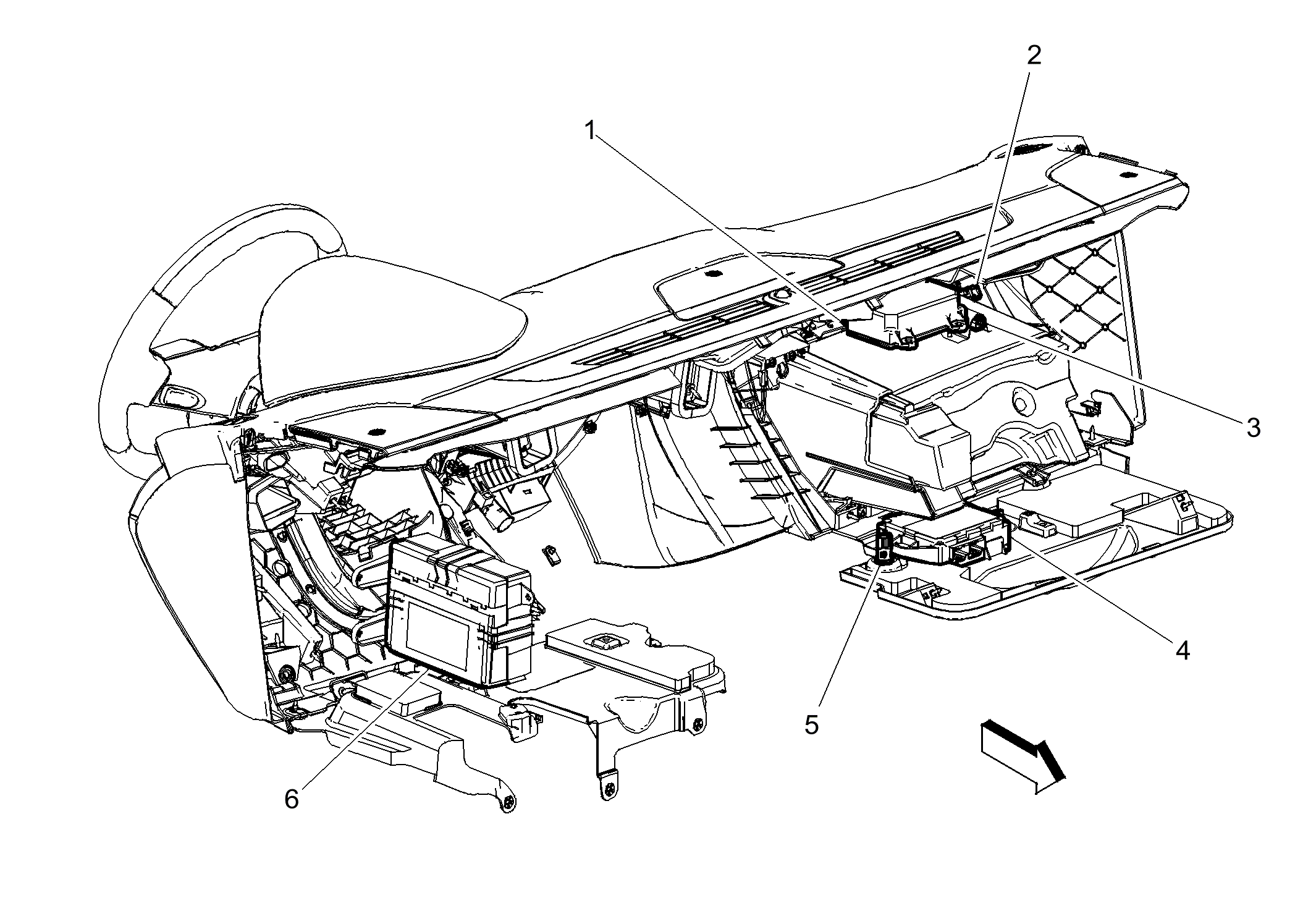

Behind the Instrument Panel Components (RHD)
Behind the Instrument Panel Components (RHD)
| Items |
|---|
| 1: K42 Pedestrian Impact Detection Control Module (B3T) K42 Pedestrian Impact Detection Control Module X1 (B3T)K42 Pedestrian Impact Detection Control Module X2 (B3T) |
| 2: S35 Instrument Panel Compartment Lamp Switch S35 Instrument Panel Compartment Lamp Switch |
| 3: E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp |
| 4: K33 HVAC Control Module K33 HVAC Control Module X2 |
| 5: E8J Instrument Panel Courtesy Lamp - Left E8J Instrument Panel Courtesy Lamp - Left |
| 6: K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7 |
