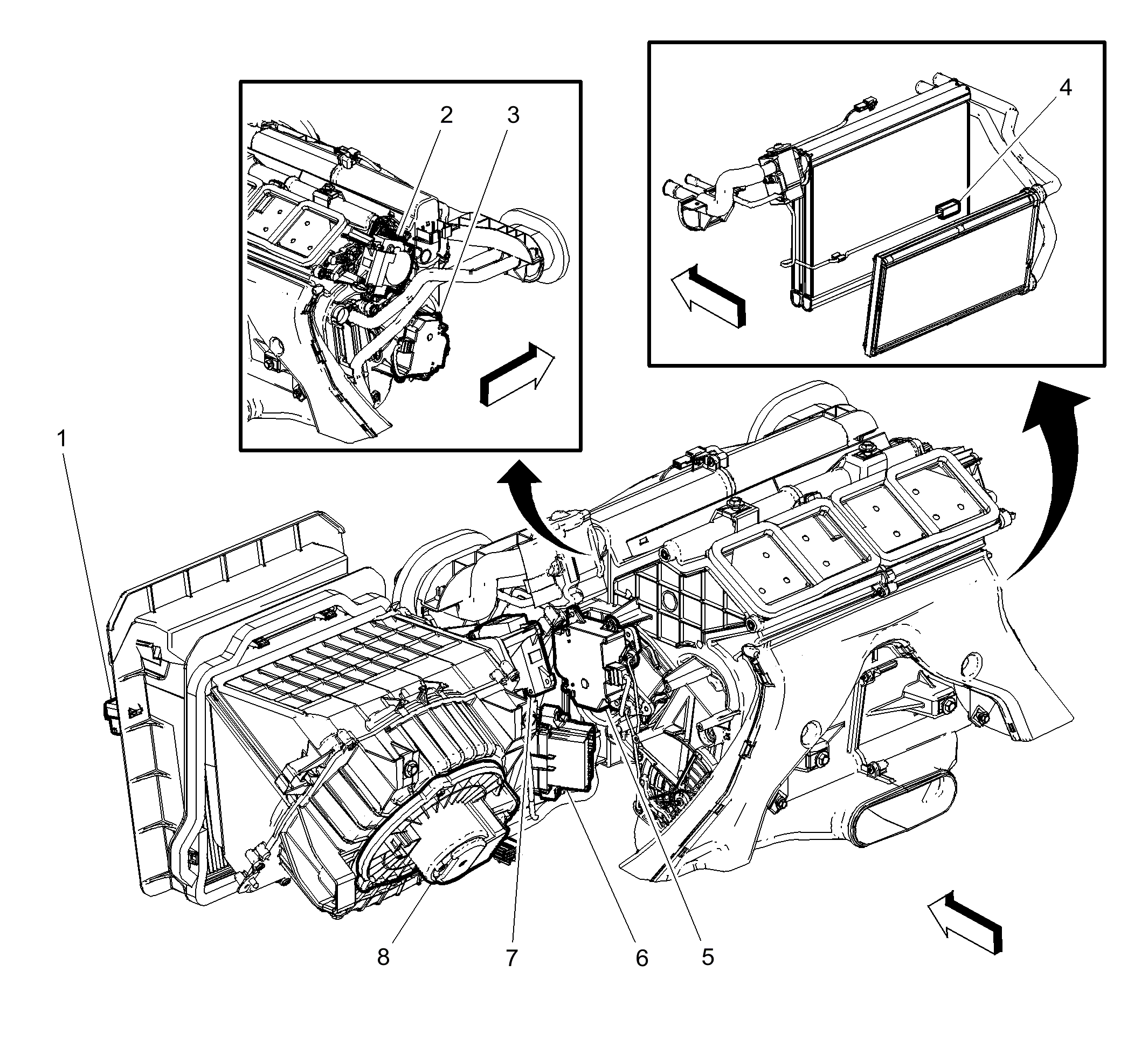

HVAC Components (RHD)
HVAC Components (RHD)
| Items |
|---|
| 1: B108 Air Quality Sensor (K14) B108 Air Quality Sensor (K14) |
| 2: M37 Mode Door Actuator M37 Mode Door Actuator |
| 3: M6R Air Temperature Door Actuator - Right M6R Air Temperature Door Actuator - Right |
| 4: B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor |
| 5: M6L Air Temperature Door Actuator - Left M6L Air Temperature Door Actuator - Left |
| 6: K8 Blower Motor Control Module K8 Blower Motor Control Module X1K8 Blower Motor Control Module X2 |
| 7: M46 Air Recirculation Door Actuator M46 Air Recirculation Door Actuator |
| 8: M8 Blower Motor M8 Blower Motor |
