Instrument Panel Components (Left Hand Drive)

Instrument Panel Components (Left Hand Drive)

Items
1:  P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter (UQA) (Sedan)P19H Speaker - Left Front Tweeter (UQA) (Wagon)
2:  S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch X1S78 Turn Signal/Multifunction Switch X2
3:  S70L Steering Wheel Controls Switch - Left S70L Steering Wheel Controls Switch - Left
4:  P16 Instrument Cluster P16 Instrument Cluster
5:  S70R Steering Wheel Controls Switch - Right S70R Steering Wheel Controls Switch - Right
6:  S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch (Coupe or Sedan)S82 Windshield Wiper/Washer Switch (Wagon)
7:  B10B Ambient Light/Sunload Sensor
8:  P17 Info Display Module (UAV, U2X, or U2Y) P17 Info Display Module X1 (UAV, U2X, or U2Y)P17 Info Display Module X2 (UAV, U2X, or U2Y)
9:  P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel
10:  P6 Clock
11:  F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1F101 Passenger Instrument Panel Air Bag X2
12:  P19AH Speaker - Right Front Door P19AH Speaker - Right Front Door (Coupe with UQS)P19AH Speaker - Right Front Door (Coupe/Wagon with UQA)P19AH Speaker - Right Front Door (Sedan with UQA)
13:  E1H Accent Lamp - Right Instrument Panel (TSQ) E1H Accent Lamp - Right Instrument Panel (TSQ)
14:  E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp
15:  A20 Radio/HVAC Controls A20 Radio/HVAC Controls
16:  A20 Radio/HVAC Controls A20 Radio/HVAC Controls
17:  X80H Accessory Power Receptacle - Center Console
18:  A20 Radio/HVAC Controls A20 Radio/HVAC Controls
19:  E32F Cigarette Lighter Receptacle - Front E32F Cigarette Lighter Receptacle - Front
20:  A20 Radio/HVAC Controls A20 Radio/HVAC Controls
21:  B7A Inside Air Temperature Sensor B7A Inside Air Temperature Sensor
22:  F107 Steering Wheel Air Bag F107 Steering Wheel Air Bag X1F107 Steering Wheel Air Bag X2
23:  X84 Data Link Connector X84 Data Link Connector
24:  S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch
25:  S16 Driver Information Center Switch S16 Driver Information Center Switch
26:  E1G Accent Lamp - Left Instrument Panel (TSQ) E1G Accent Lamp - Left Instrument Panel (TSQ)

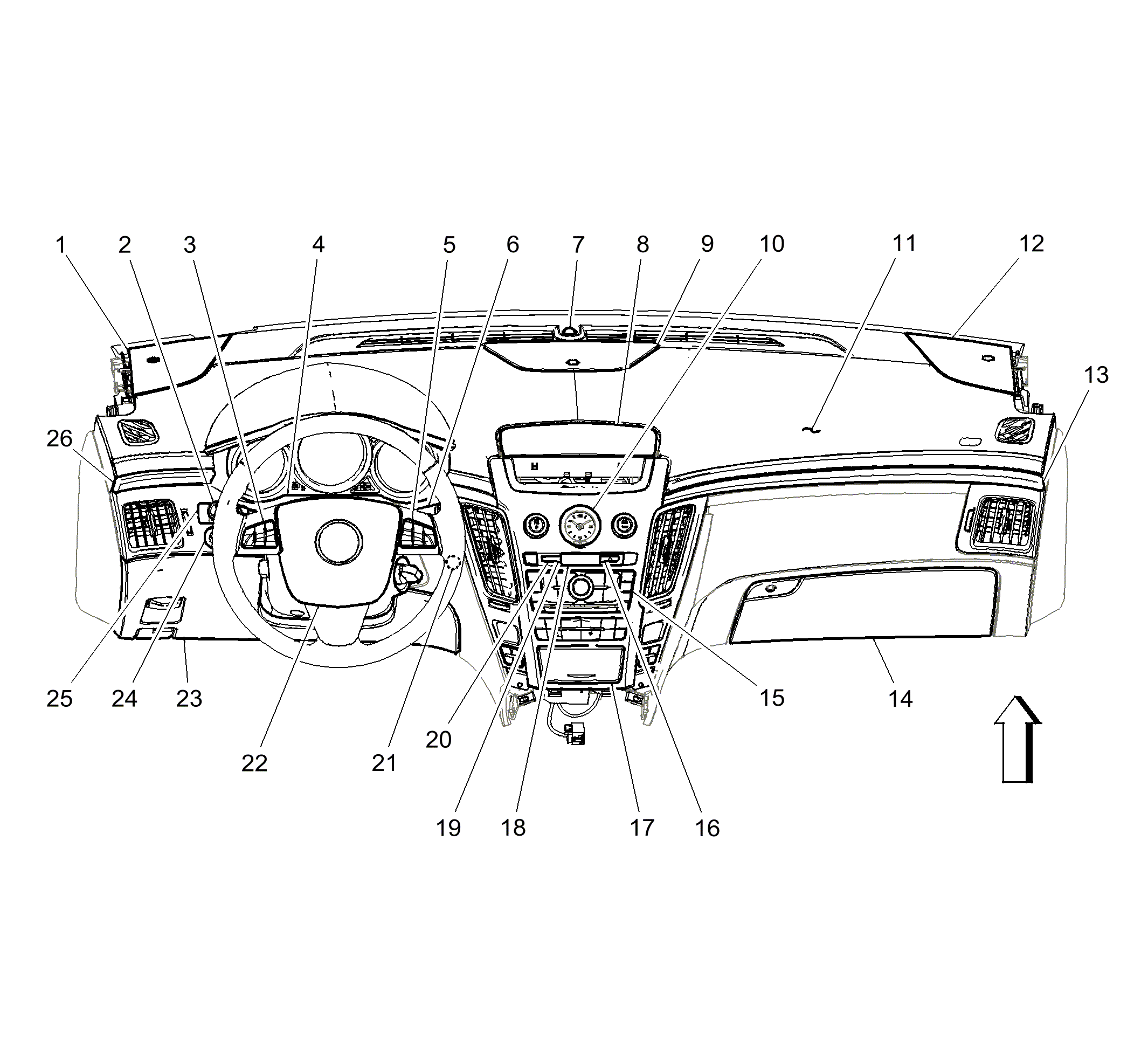

Fig 1: Instrument Panel Components (Left Hand Drive)
GM2218182Courtesy of GENERAL MOTORS COMPANY
