Instrument Panel Components (Right Hand Drive)

Instrument Panel Components (Right Hand Drive)

Items
1:  P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter (UQA) (Sedan)P19H Speaker - Left Front Tweeter (UQA) (Wagon)
2:  F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1F101 Passenger Instrument Panel Air Bag X2
3:  P6 Clock
4:  P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel
5:  P17 Info Display Module (UAV, U2X, or U2Y) P17 Info Display Module X1 (UAV, U2X, or U2Y)P17 Info Display Module X2 (UAV, U2X, or U2Y)
6:  B10B Ambient Light/Sunload Sensor
7:  S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch X1S78 Turn Signal/Multifunction Switch X2
8:  S70L Steering Wheel Controls Switch - Left S70L Steering Wheel Controls Switch - Left
9:  P16 Instrument Cluster P16 Instrument Cluster
10:  S70R Steering Wheel Controls Switch - Right S70R Steering Wheel Controls Switch - Right
11:  S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch (Coupe or Sedan)S82 Windshield Wiper/Washer Switch (Wagon)
12:  P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter (Sedan with UQA)P19V Speaker - Right Front Tweeter (UQS)P19V Speaker - Right Front Tweeter (Wagon with UQA)
13:  E1H Accent Lamp - Right Instrument Panel (TSQ) E1H Accent Lamp - Right Instrument Panel (TSQ)
14:  S16 Driver Information Center Switch S16 Driver Information Center Switch
15:  S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch
16:  X84 Data Link Connector X84 Data Link Connector
17:  F107 Steering Wheel Air Bag F107 Steering Wheel Air Bag X1F107 Steering Wheel Air Bag X2
18:  B7A Inside Air Temperature Sensor B7A Inside Air Temperature Sensor
19:  A20 Radio/HVAC Controls A20 Radio/HVAC Controls
20:  X80H Accessory Power Receptacle - Center Console
21:  A20 Radio/HVAC Controls A20 Radio/HVAC Controls
22:  A20 Radio/HVAC Controls A20 Radio/HVAC Controls
23:  E32F Cigarette Lighter Receptacle - Front E32F Cigarette Lighter Receptacle - Front
24:  A20 Radio/HVAC Controls A20 Radio/HVAC Controls
25:  E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp
26:  E1G Accent Lamp - Left Instrument Panel (TSQ) E1G Accent Lamp - Left Instrument Panel (TSQ)

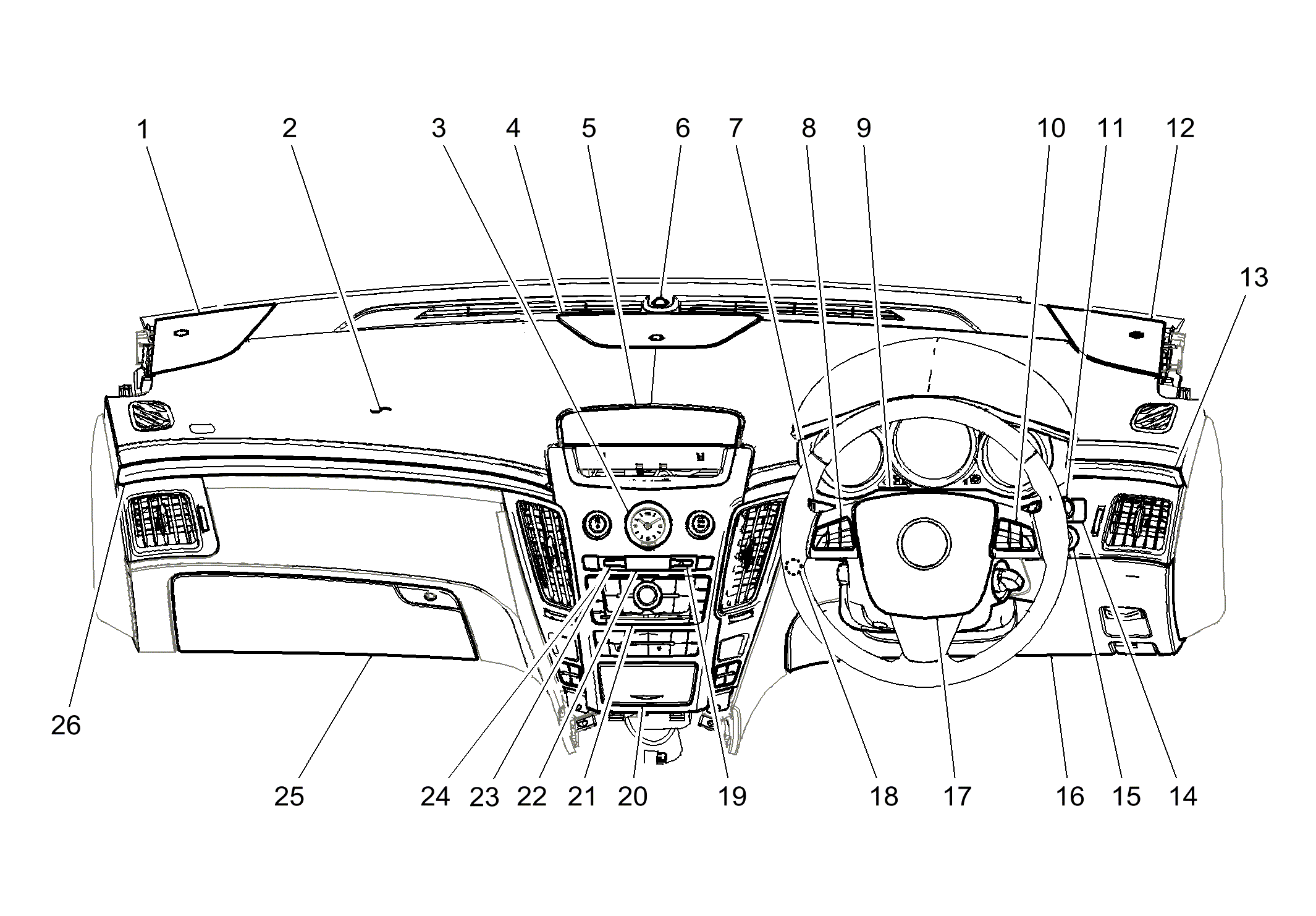

Fig 1: Instrument Panel Components (Right Hand Drive)
GM2366554Courtesy of GENERAL MOTORS COMPANY
