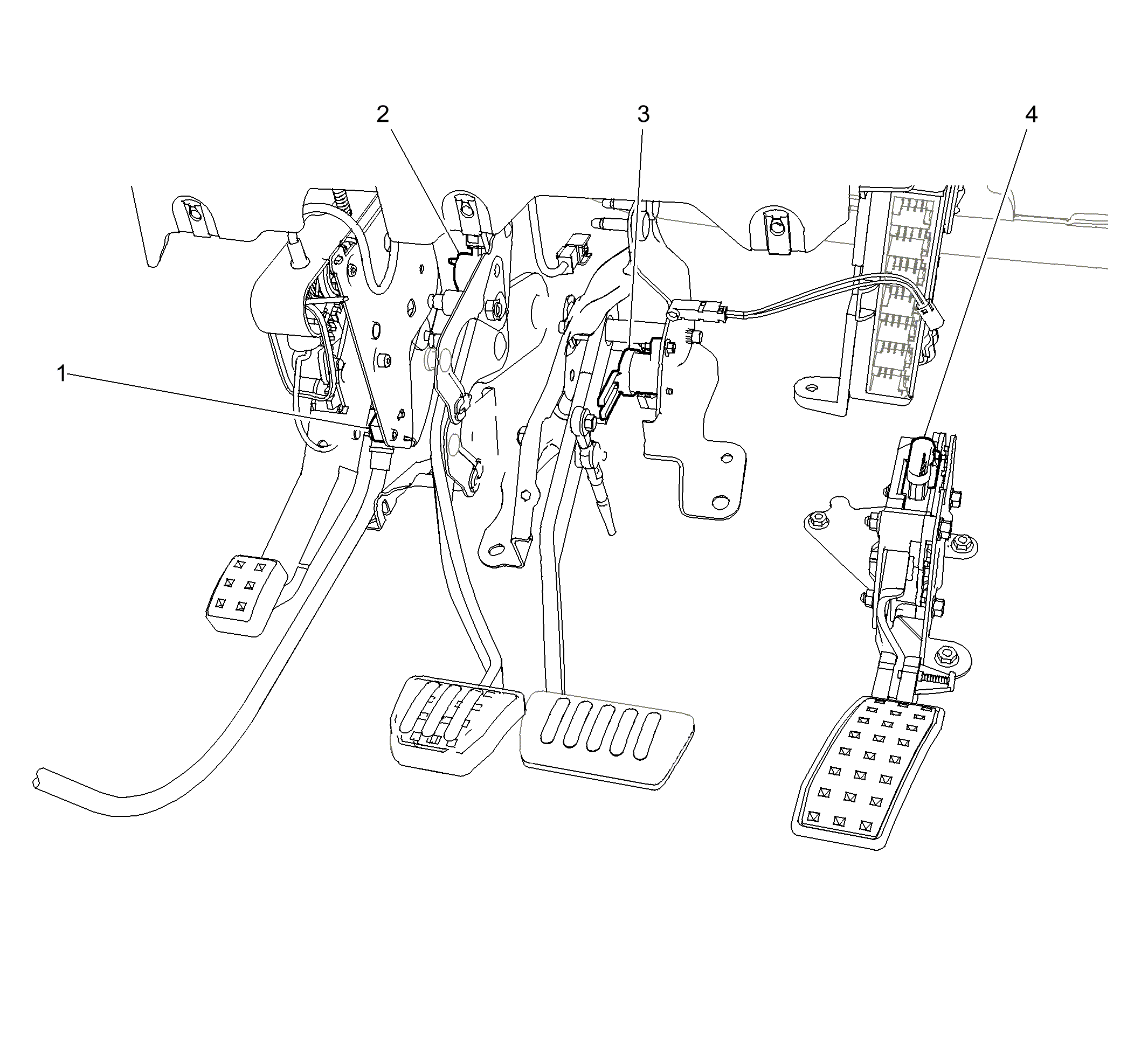

Lower Left Side of the Instrument Panel Components (Left Hand Drive)
Lower Left Side of the Instrument Panel Components (Left Hand Drive)
| Items |
|---|
| 1: B80 Park Brake Switch (without J77) B80 Park Brake Switch (without J77) |
| 2: B25B Clutch Pedal Position Sensor (MV7 or MG9) B25B Clutch Pedal Position Sensor (MV7 or MG9) |
| 3: B22 Brake Pedal Position Sensor |
| 4: B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor |
