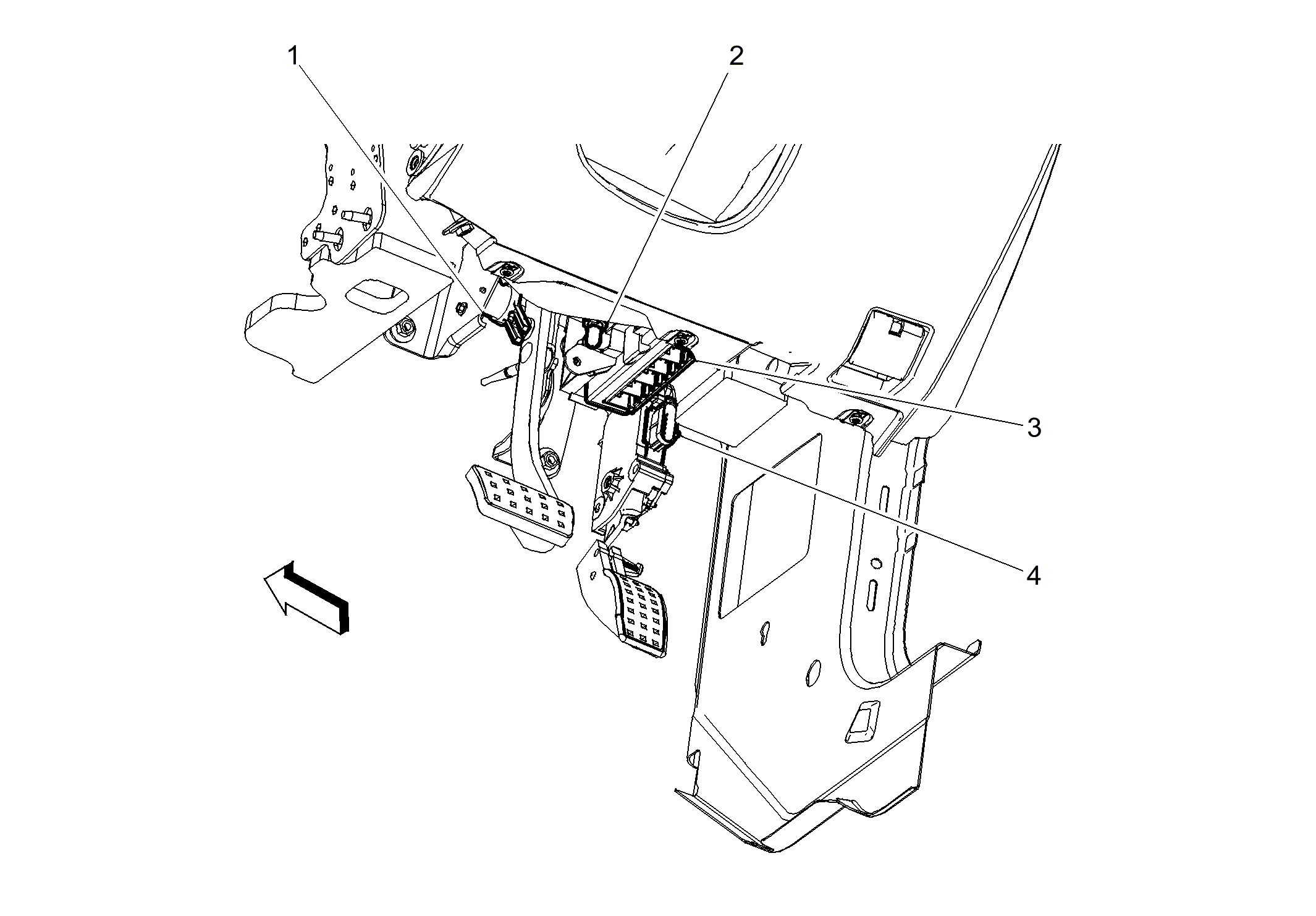

Lower Right Side of the Instrument Panel Components (RHD)
Lower Right Side of the Instrument Panel Components (RHD)
| Items |
|---|
| 1: B22 Brake Pedal Position Sensor |
| 2: E8K Instrument Panel Courtesy Lamp - Right E8K Instrument Panel Courtesy Lamp - Right |
| 3: K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7 |
| 4: B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor |
