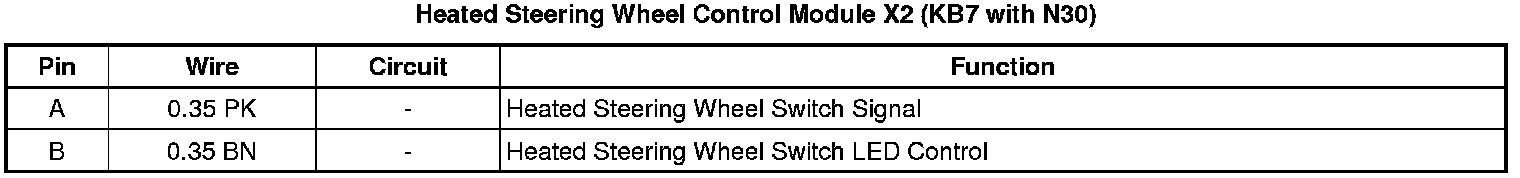

Heated Steering Wheel Control Module X2 (KB7 with N30)

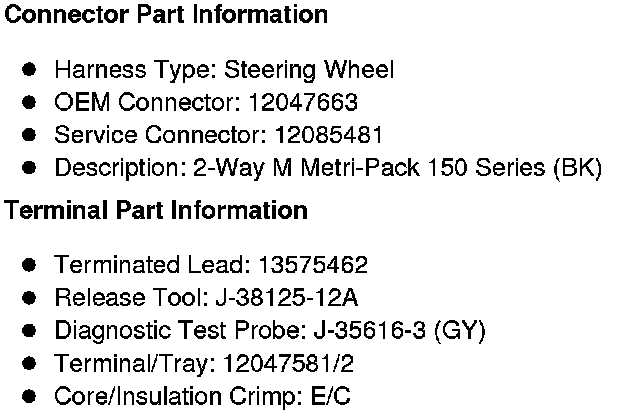

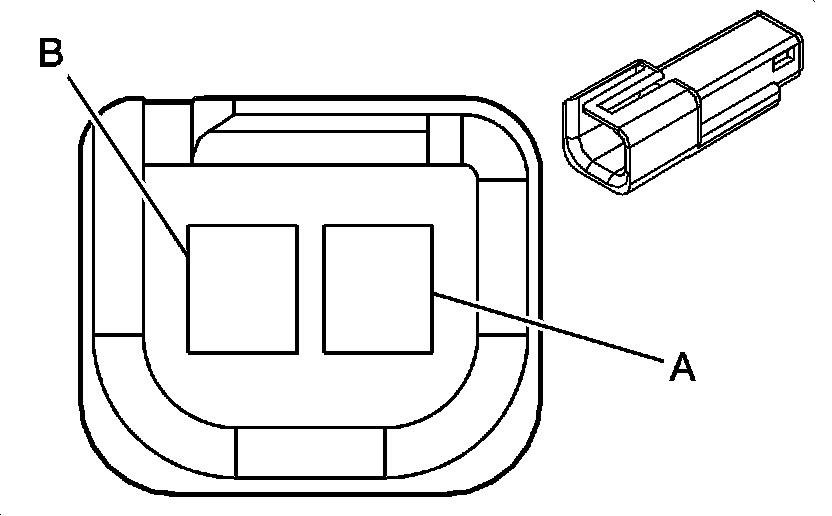

Component Connector End Views
Heated Steering Wheel
Control Module
X2 (KB7 with N30)
