Behind the Instrument Panel Components (Left Hand Drive)

Instrument Panel/Center Console Component Views

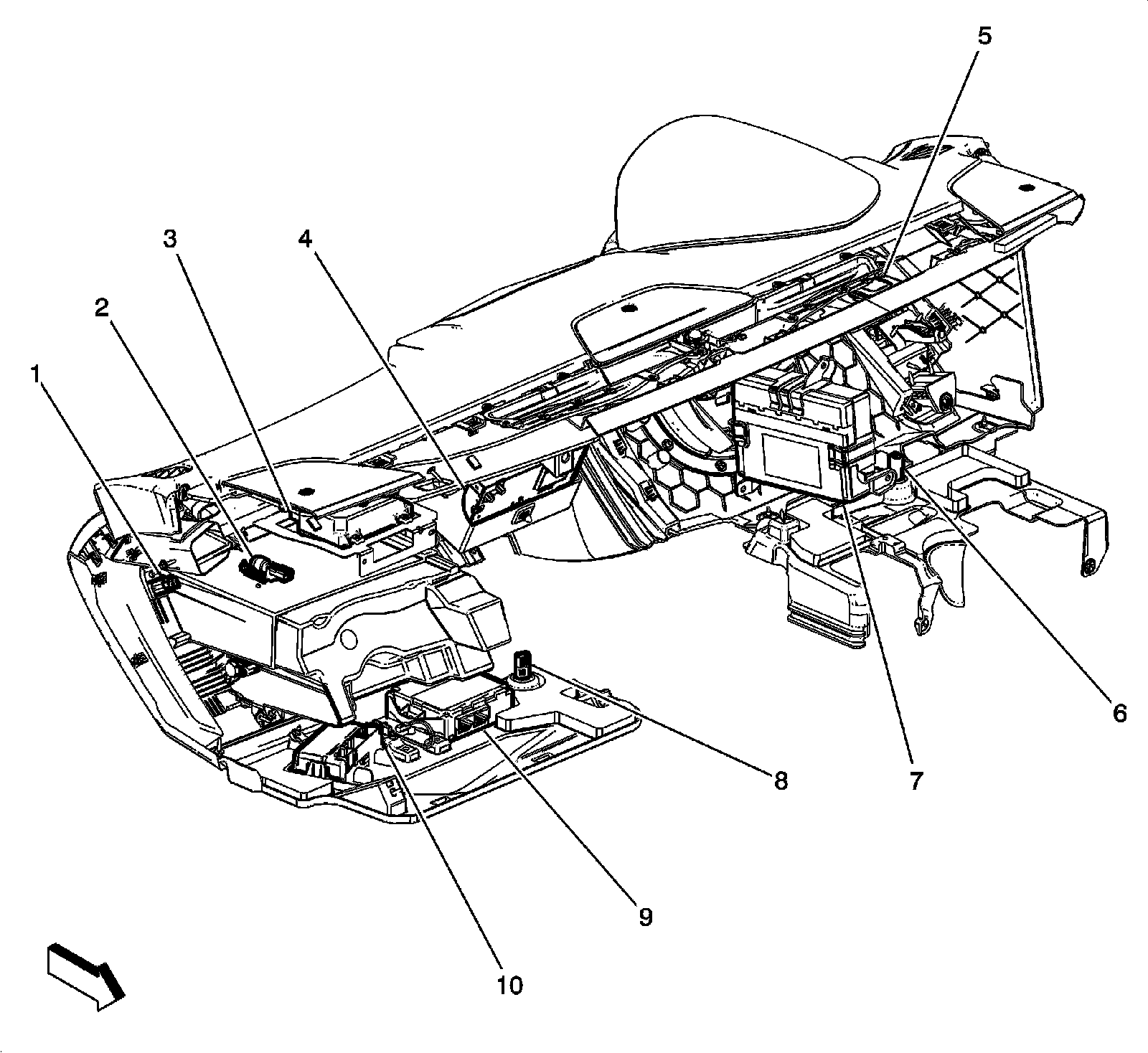

Behind the Instrument Panel Components (Left Hand Drive)





1 - I/P Compartment Lamp Switch

2 - I/P Compartment Lamp

3 - Vehicle Communication Interface Module (VCIM) (UE1) or Pedestrian Impact Detection Module (B3T)

4 - Radio

5 - Navigation Antenna (U2U, U2V or UAV)

6 - I/P Courtesy Lamp- Left

7 - Body Control Module (BCM)

8 - I/P Courtesy Lamp- Right

9 - HVAC Control Module

10 - Transfer Case Shift Control Module (MX7)
