Part 2
Thread Repair Specifications (Continued)

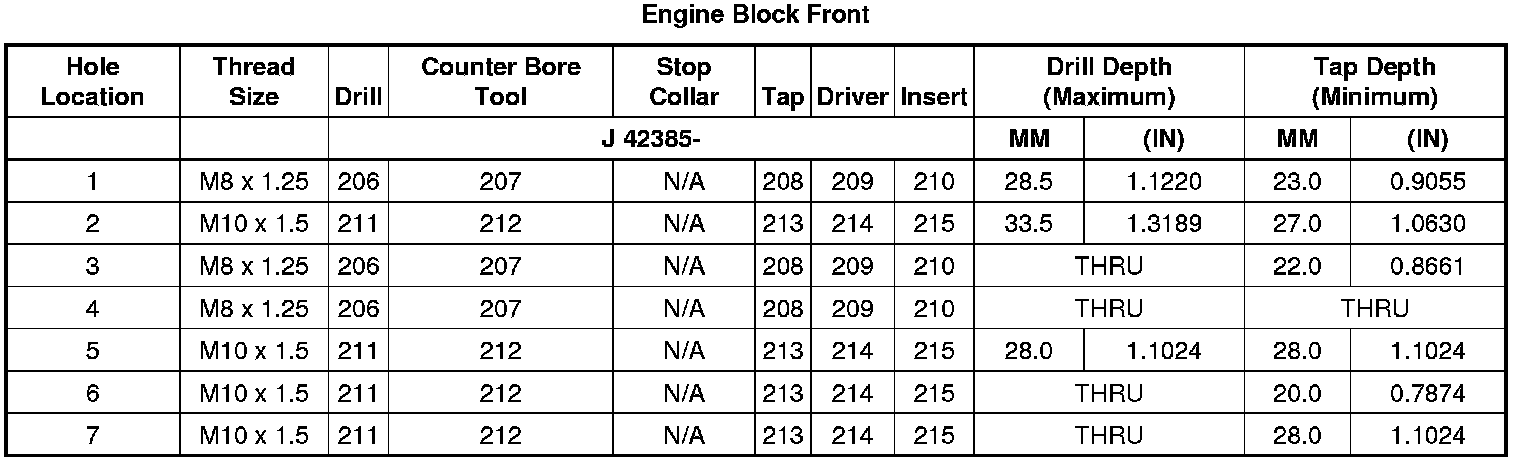

Engine Block Front

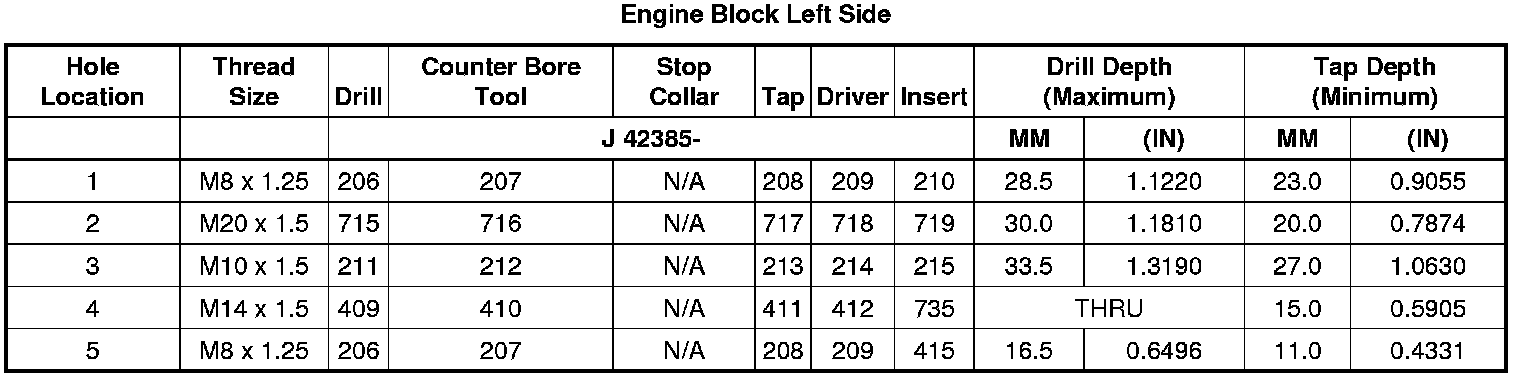

Engine Block Left Side

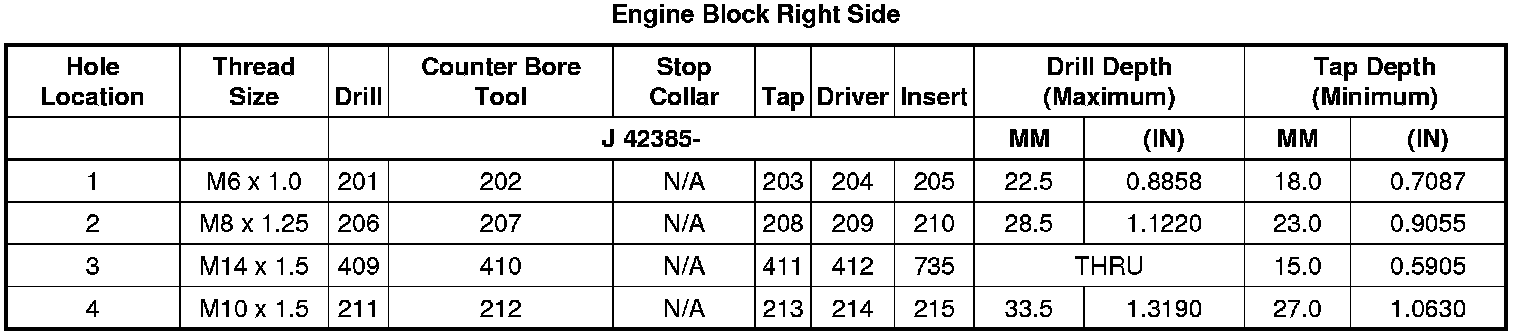

Engine Block Right Side

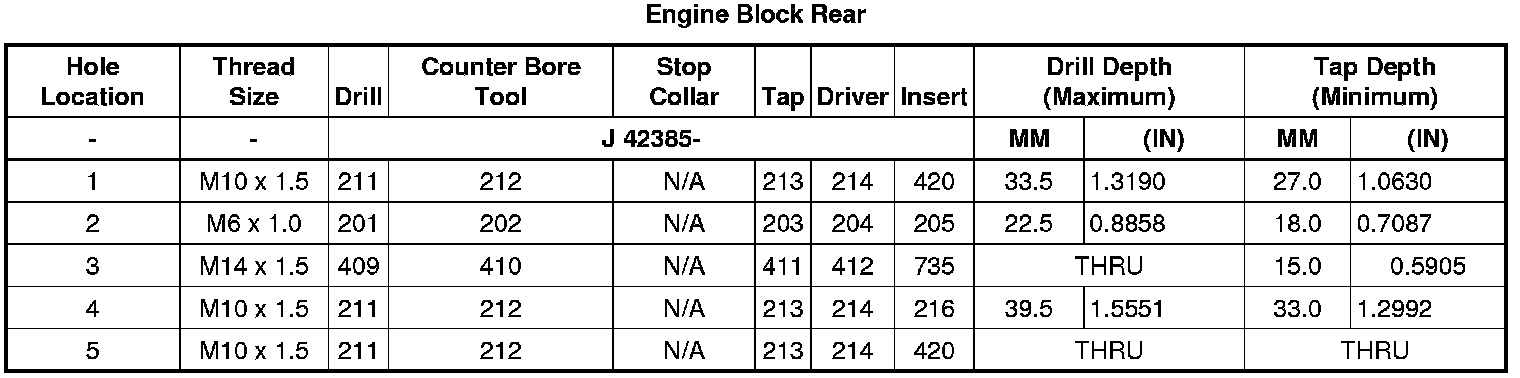

Engine Block Rear

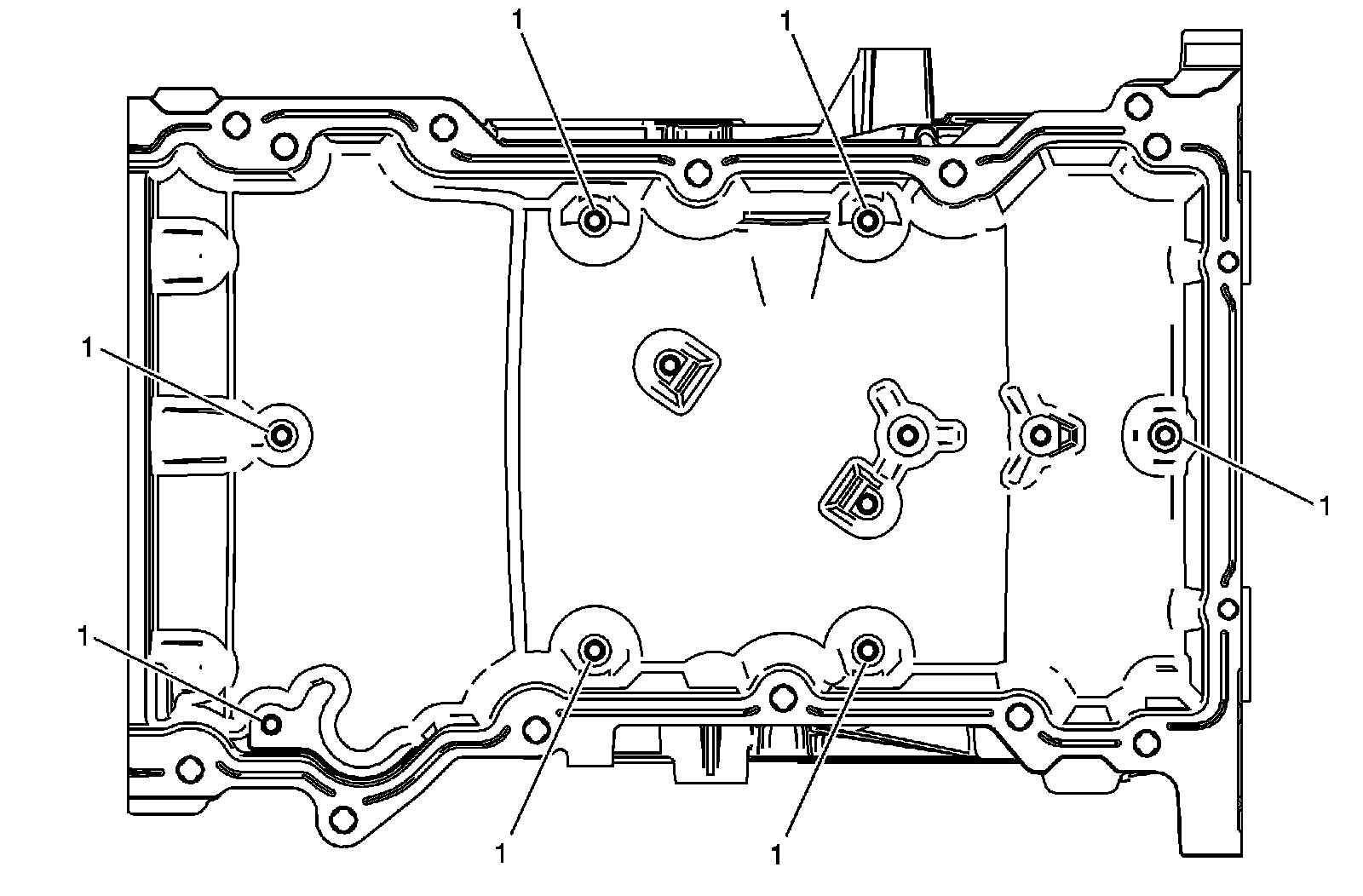

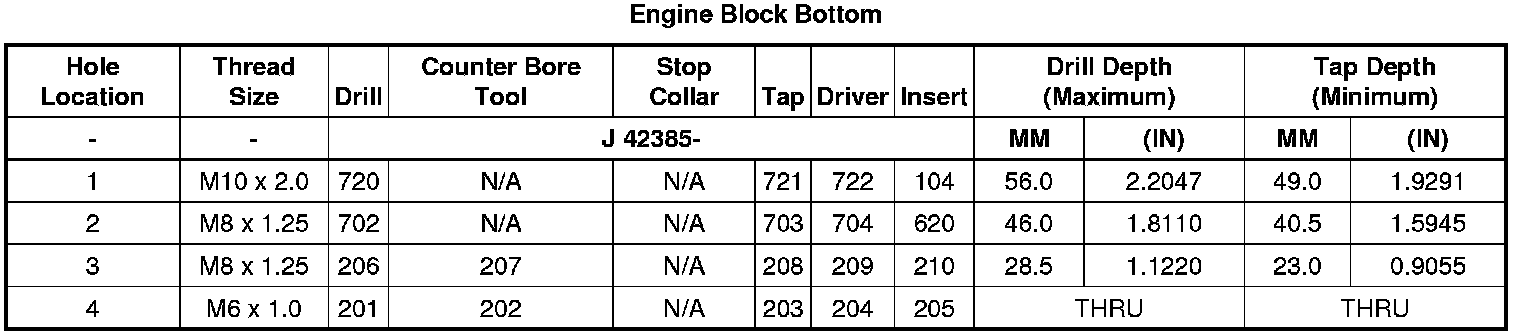

Engine Block Bottom

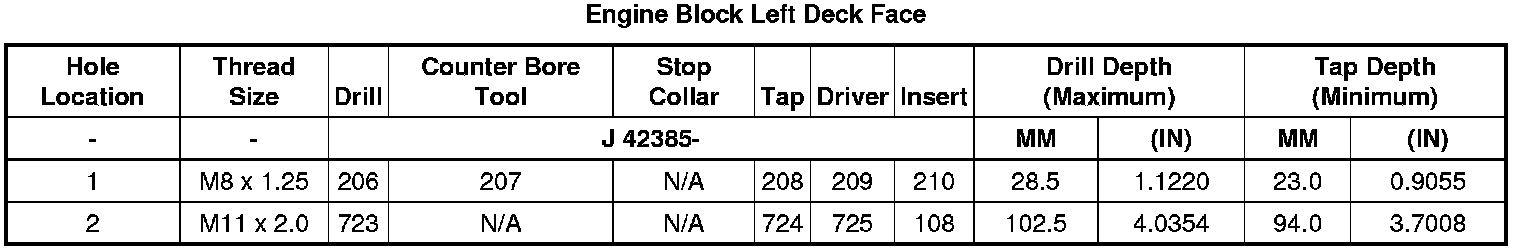

Engine Block Left Deck Face

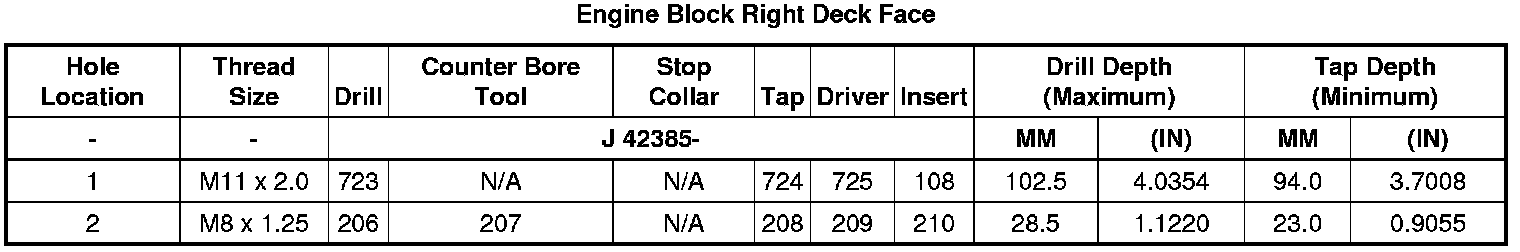

Engine Block Right Deck Face

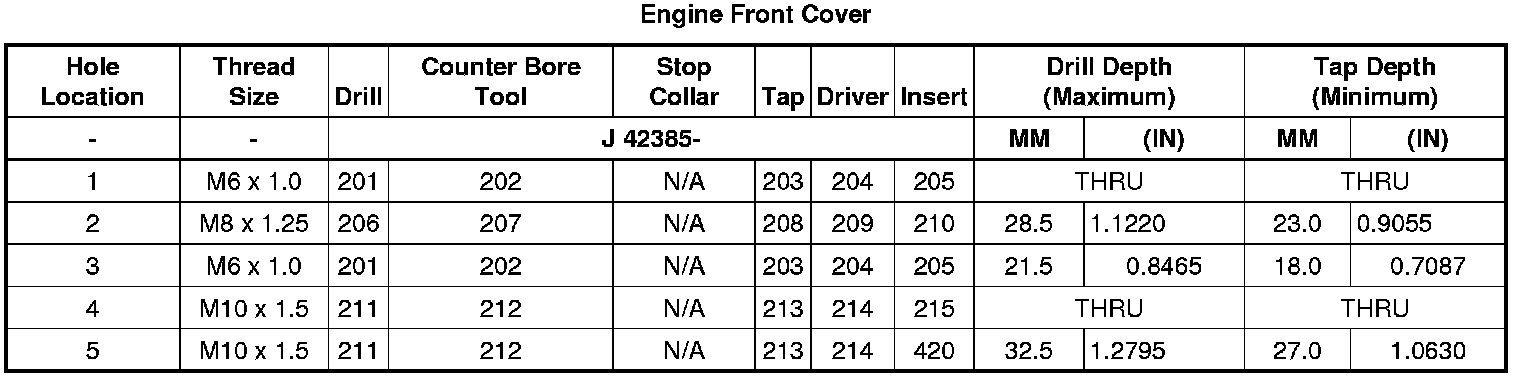

Engine Front Cover

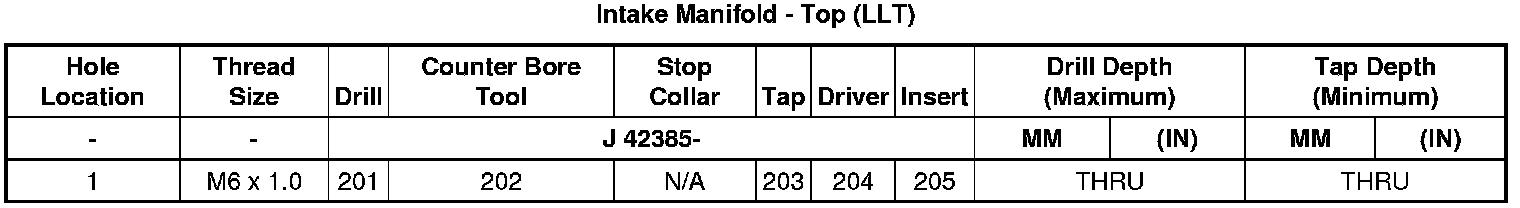

Intake Manifold - Top (LLT)
Intake Manifold - Front (LLT)
Intake Manifold - Rear (LLT)

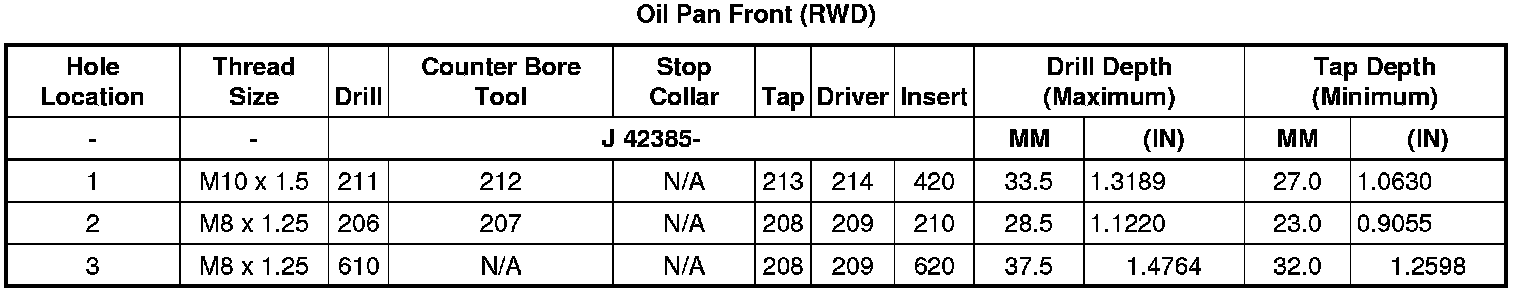

Oil Pan Front (RWD)

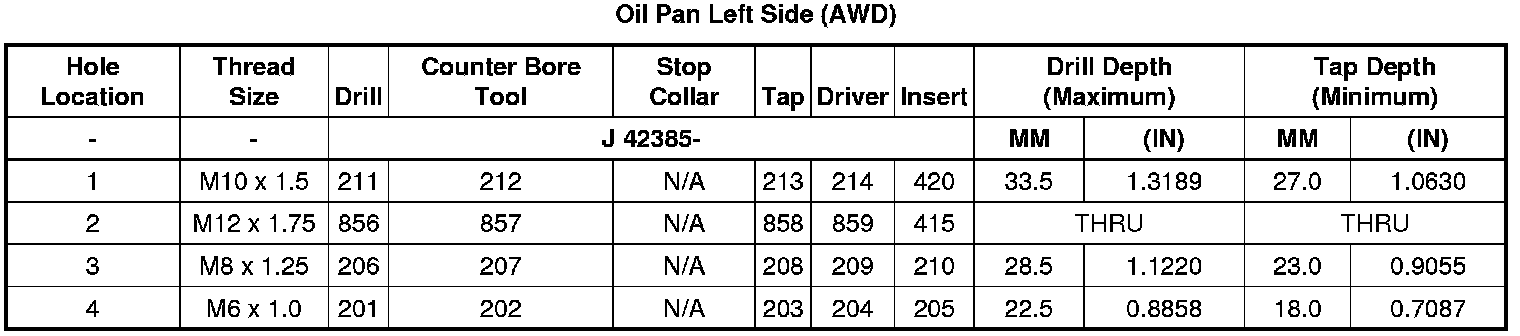

Oil Pan Left Side (AWD)

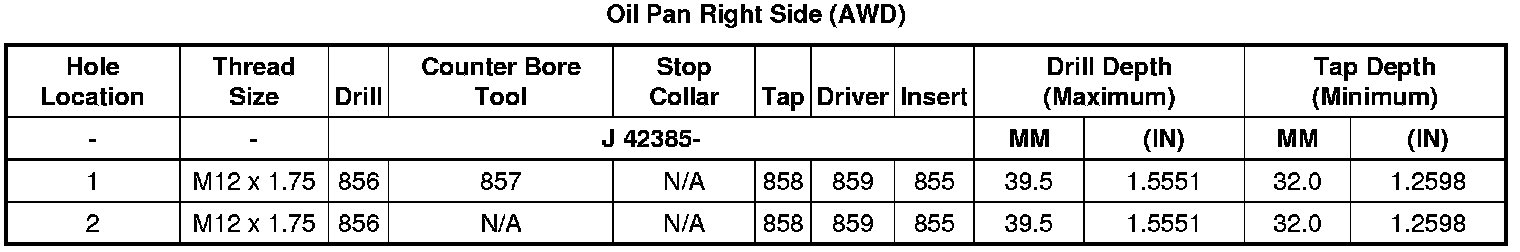

Oil Pan Right Side (AWD)

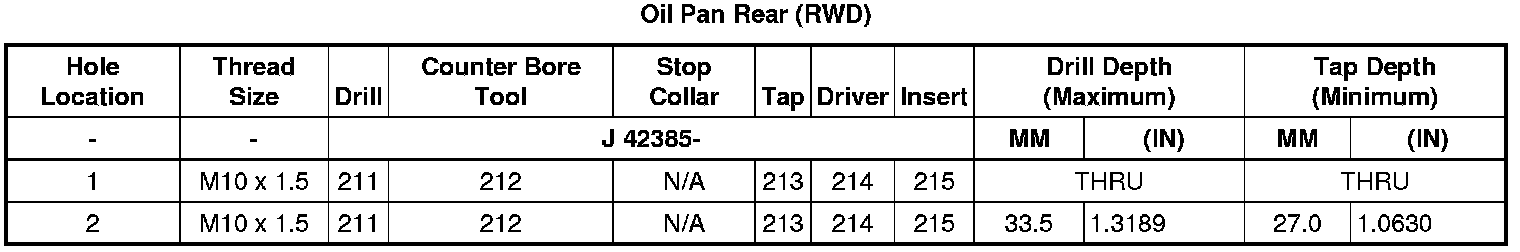

Oil Pan Rear (RWD)
Oil Pan Rear (AWD)
