Blower Motor Control Module - Auxiliary

Luggage Compartment/Rear of Vehicle Component Views

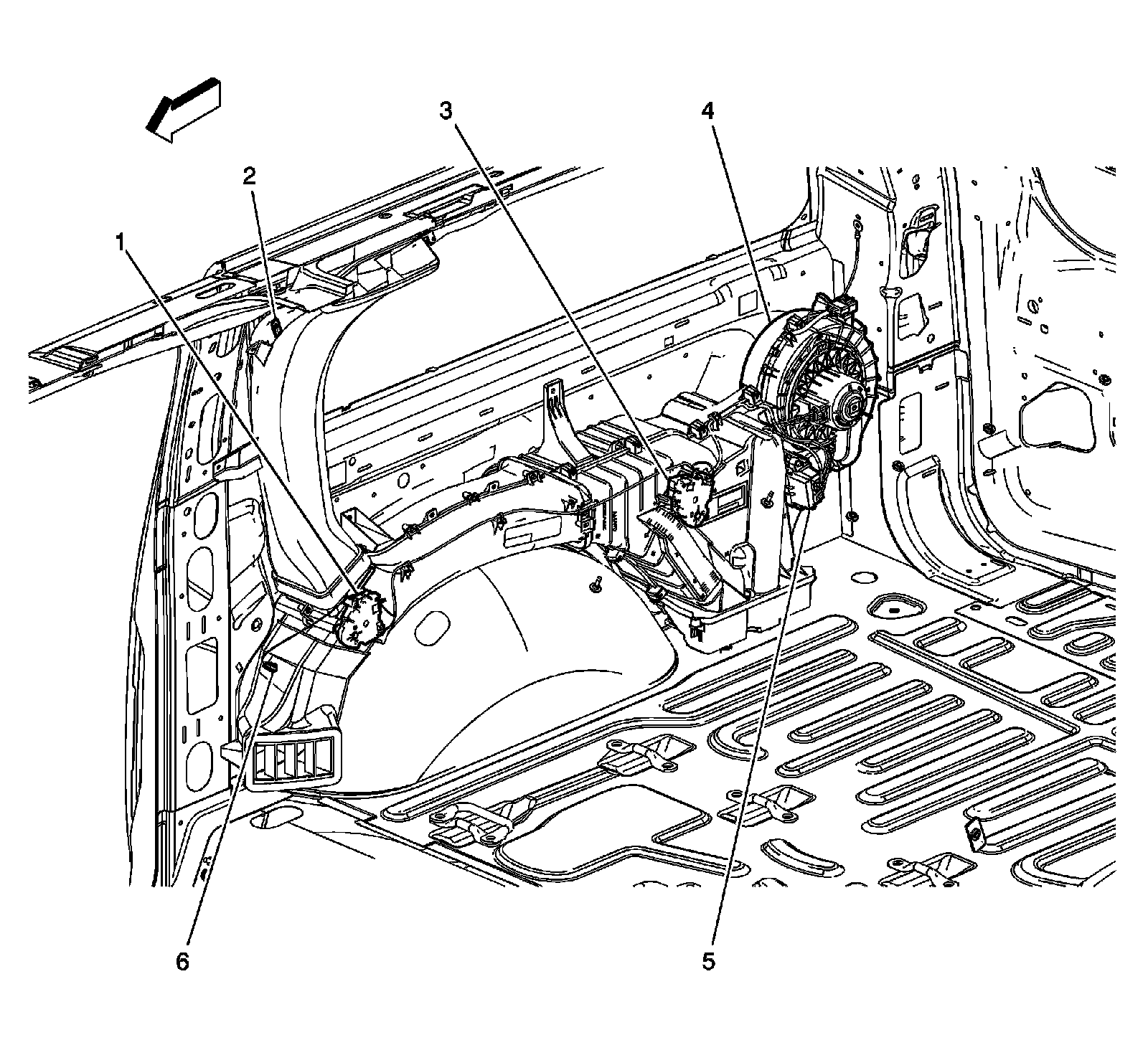

Auxiliary HVAC Components (LWB with C69)





1 - Mode Actuator - Auxiliary

2 - Air Temperature Sensor - Upper Auxiliary (CJ2)

3 - Air Temperature Actuator - Auxiliary

4 - Blower Motor - Auxiliary

5 - Blower Motor Control Module - Auxiliary

6 - Air Temperature Sensor - Lower Auxiliary
