Timing Cover

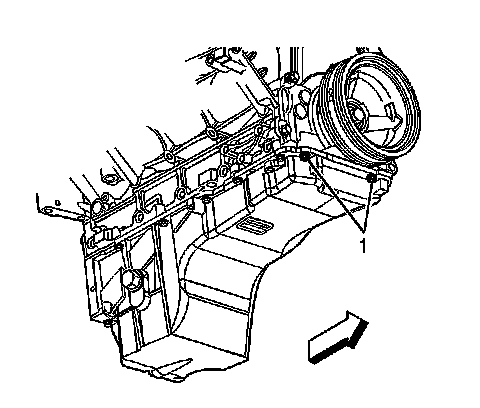

Tighten the oil pan to front cover bolts to 25 Nm (18 lb ft).

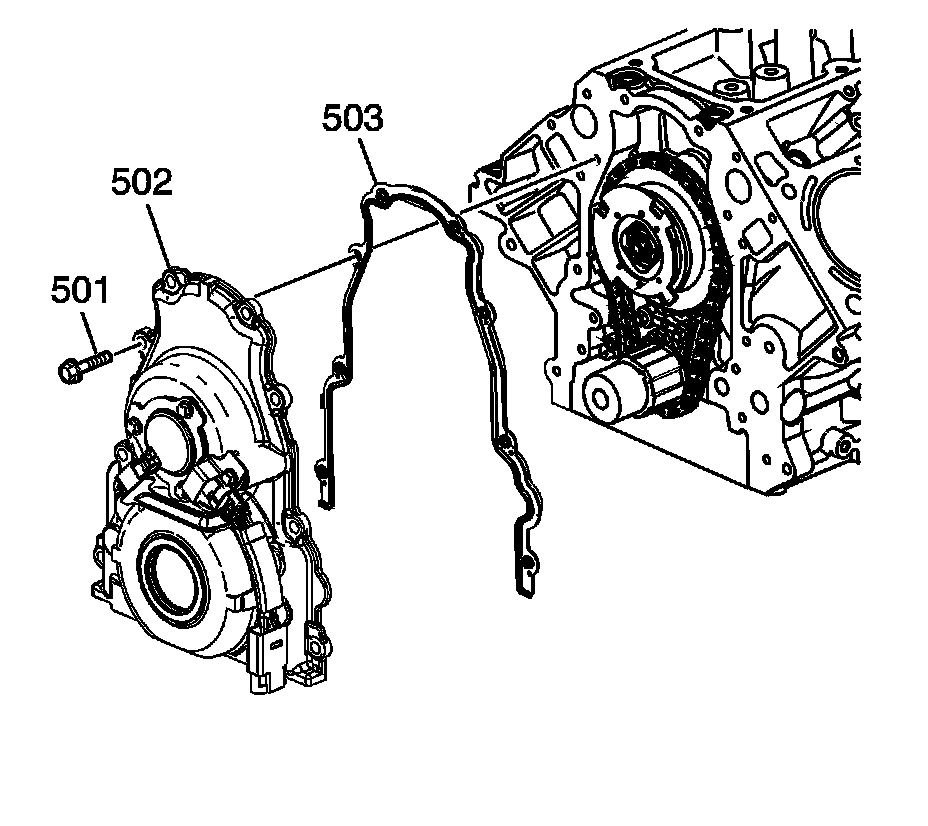

Tighten the engine front cover bolts to 25 Nm (18 lb ft).
