Module Power, Ground, Serial Data, and Front Switch (E61)

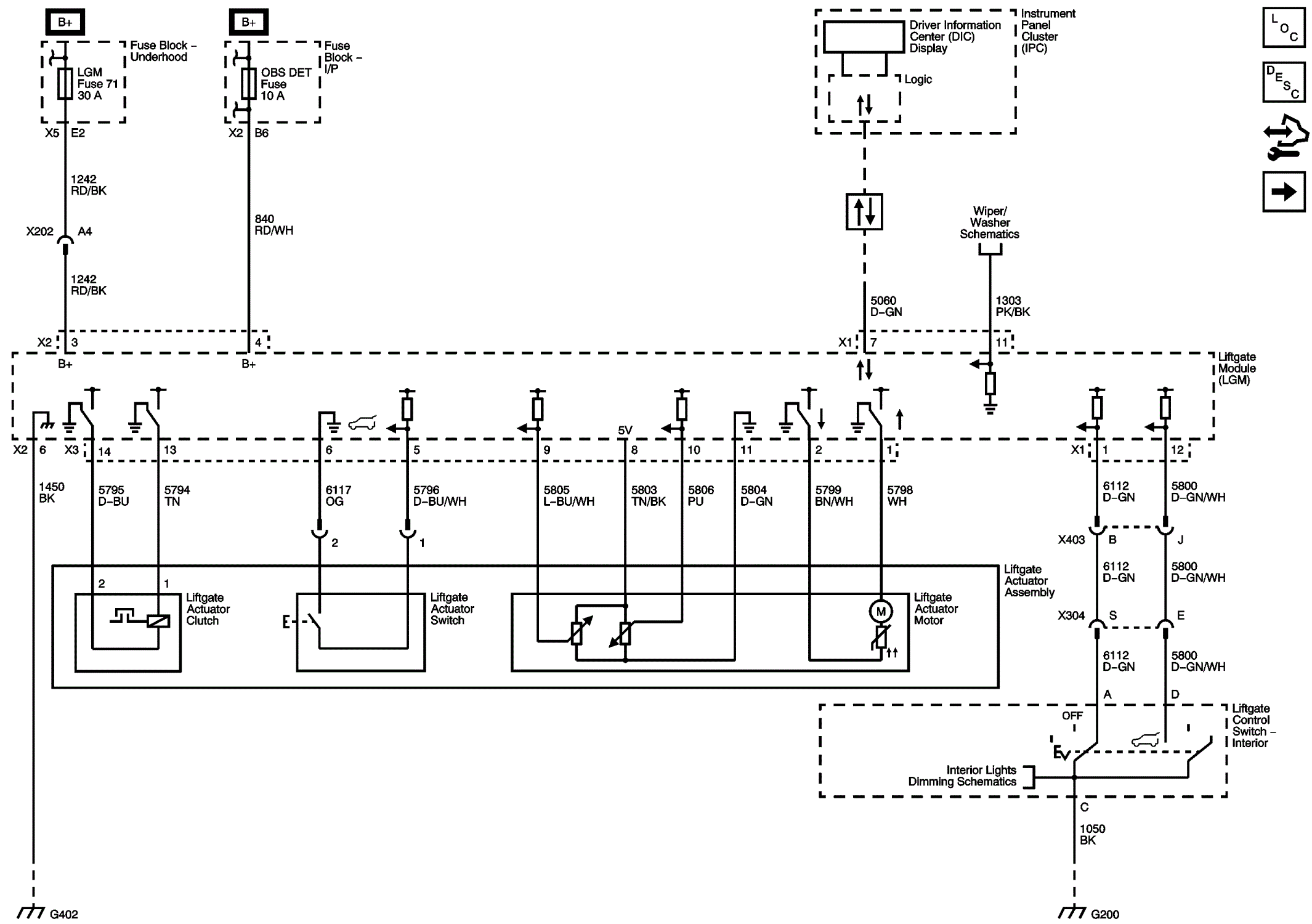

Fig 1: Module Power, Ground, Serial Data, and Front Switch Wiring Schematic (E61)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
