Automatic Level Control Sensor Replacement

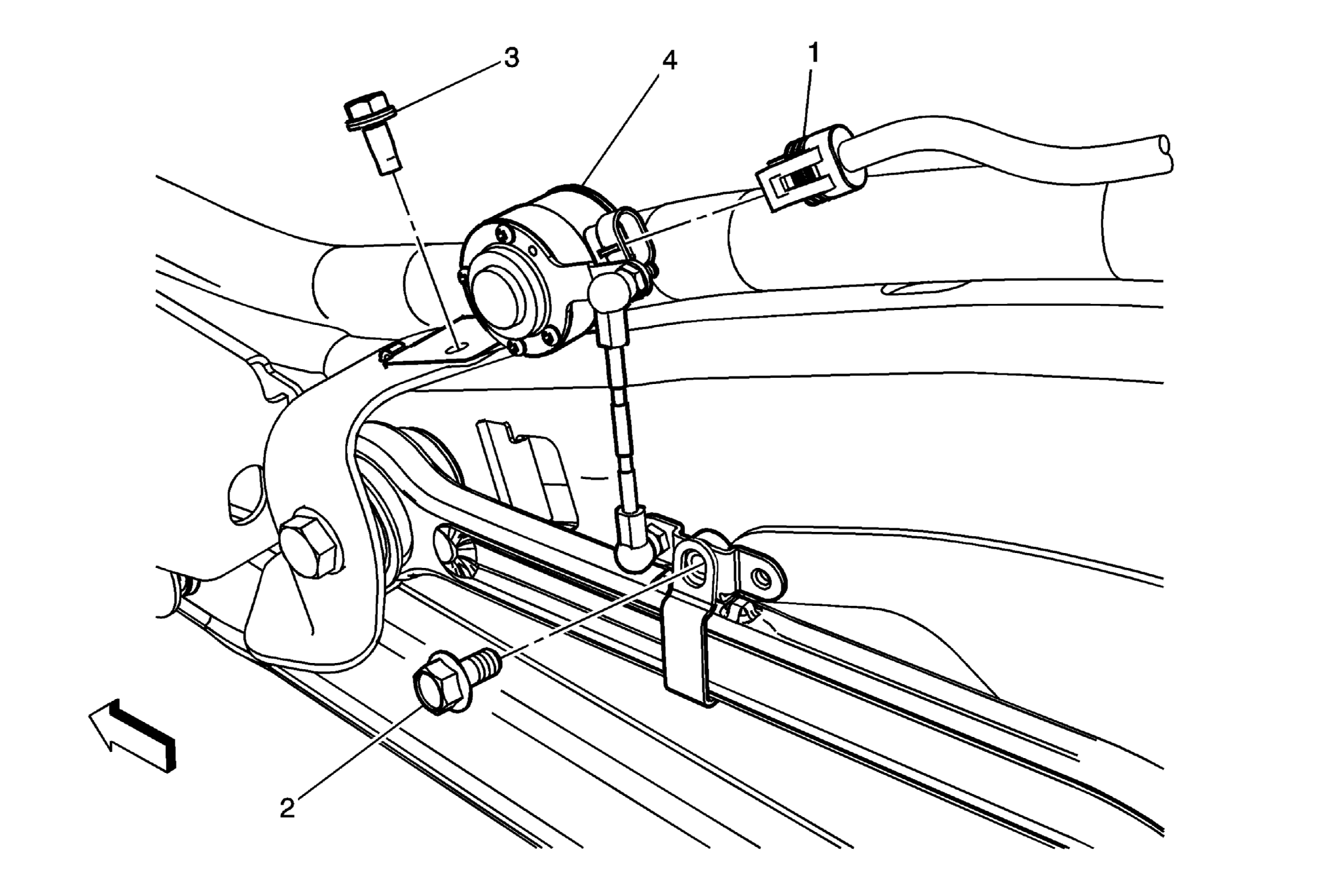

Fig 1: View Of Electronic Suspension Position Sensor & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the left rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (6-Lug Wheel) , Tire and Wheel Removal and Installation (8-Lug Wheel) .
1	Electrical Connector
2	Position Sensor Servo Arm Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 17 N.m (13 lb ft)
3	Position Sensor Bracket Bolt Tighten 12 N.m (106 lb in)
4	Electronic Suspension Position Sensor Procedure Program the electronic suspension control module. Refer to Control Module References .
