Video Player Signal Splitter Replacement
Courtesy of GENERAL MOTORS COMPANY Video Player Signal Splitter Replacement
| Callout |
Component Name |
Preliminary Procedure
Lower only rear end portion of the headliner. Refer to Headlining Trim Panel Replacement (LWB w/U42 w/o CF5)
, Headlining Trim Panel Replacement (LWB w/CJ2)
, Headlining Trim Panel Replacement (SWB w/o CF5 and U42)
, Headlining Trim Panel Replacement (LWB w/CJ3)
, Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/CF5 w/o U42)
, Headlining Trim Panel Replacement (SWB w/CF5 w/o U42)
, Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/U24 w/o CF5)
, Headlining Trim Panel Replacement (LWB w/CF5 and U42)
, Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/CF5 and U42)
, Headlining Trim Panel Replacement (Avalanche/Escalade EXT w/CJ3)
, Headlining Trim Panel Replacement (SWB w/CF5 and U42)
, Headlining Trim Panel Replacement (SWB w/U42 w/o CF5)
, Headlining Trim Panel Replacement (LWB w/CF5 w/o U42)
, Headlining Trim Panel Replacement (SWB w/CJ3)
, Headlining Trim Panel Replacement (Avalanche w/CJ2 w/o CF5 and U42)
. |

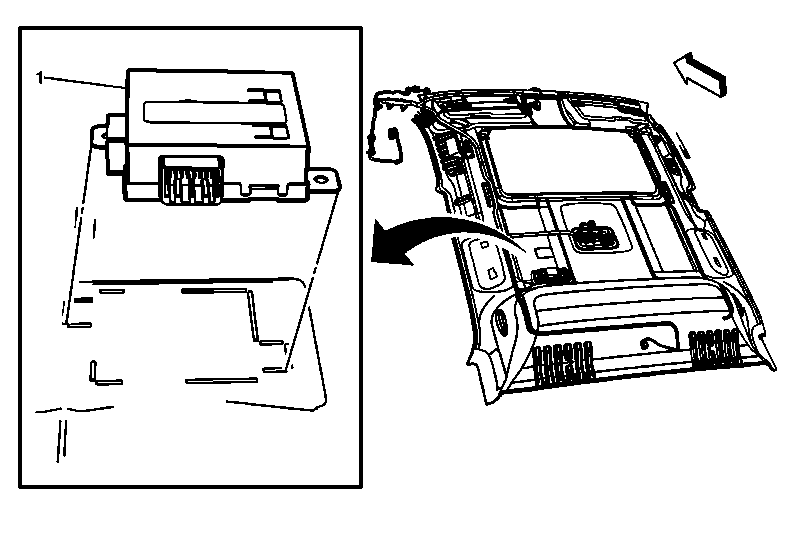

| 1 |
Video Disc Player Signal Splitter Procedure
- Disconnect the electrical connectors.
- Remove the splitter from the headliner secured by adhesive.
- For programming and set up information, refer to Control Module References
.
|
