Radio Power, Ground, Serial Data, and Antenna Signals

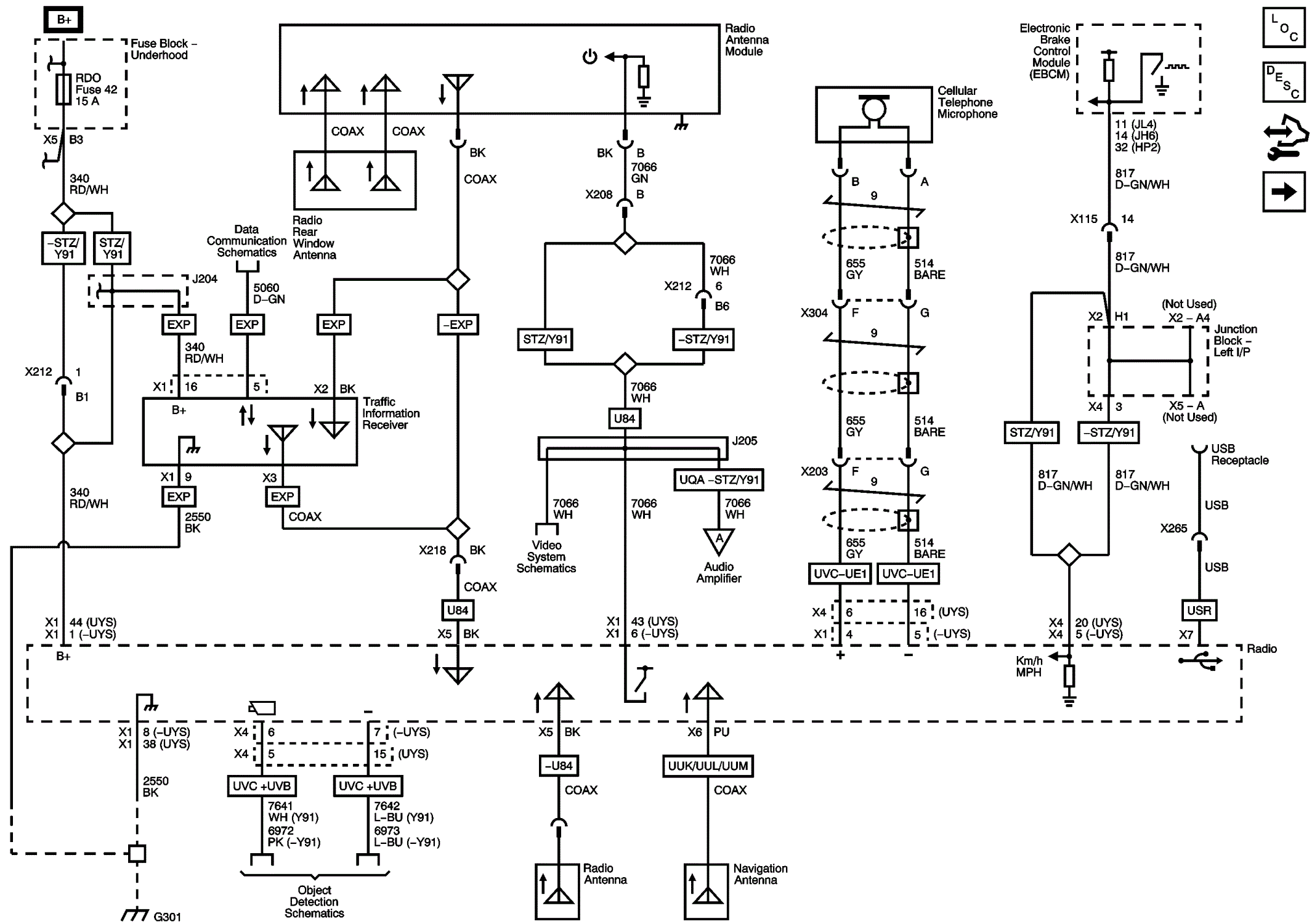

Fig 1: Radio Power, Ground, Serial Data, and Antenna Signals Wiring Schematic
GM2759118Courtesy of GENERAL MOTORS COMPANY
