Electronic Brake Control Module (EBCM) (JH6 Over 8600 GVW)

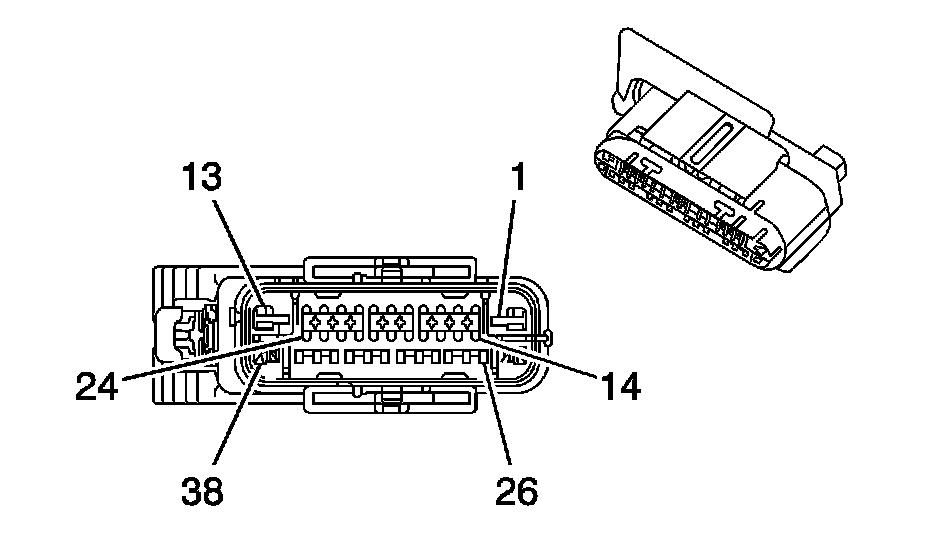

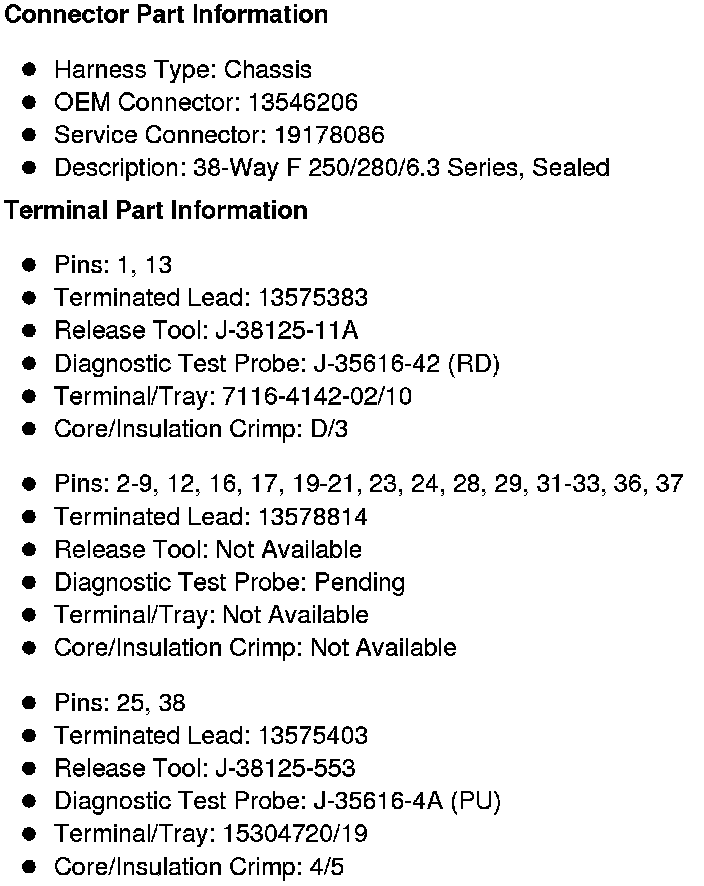

Component Connector End Views

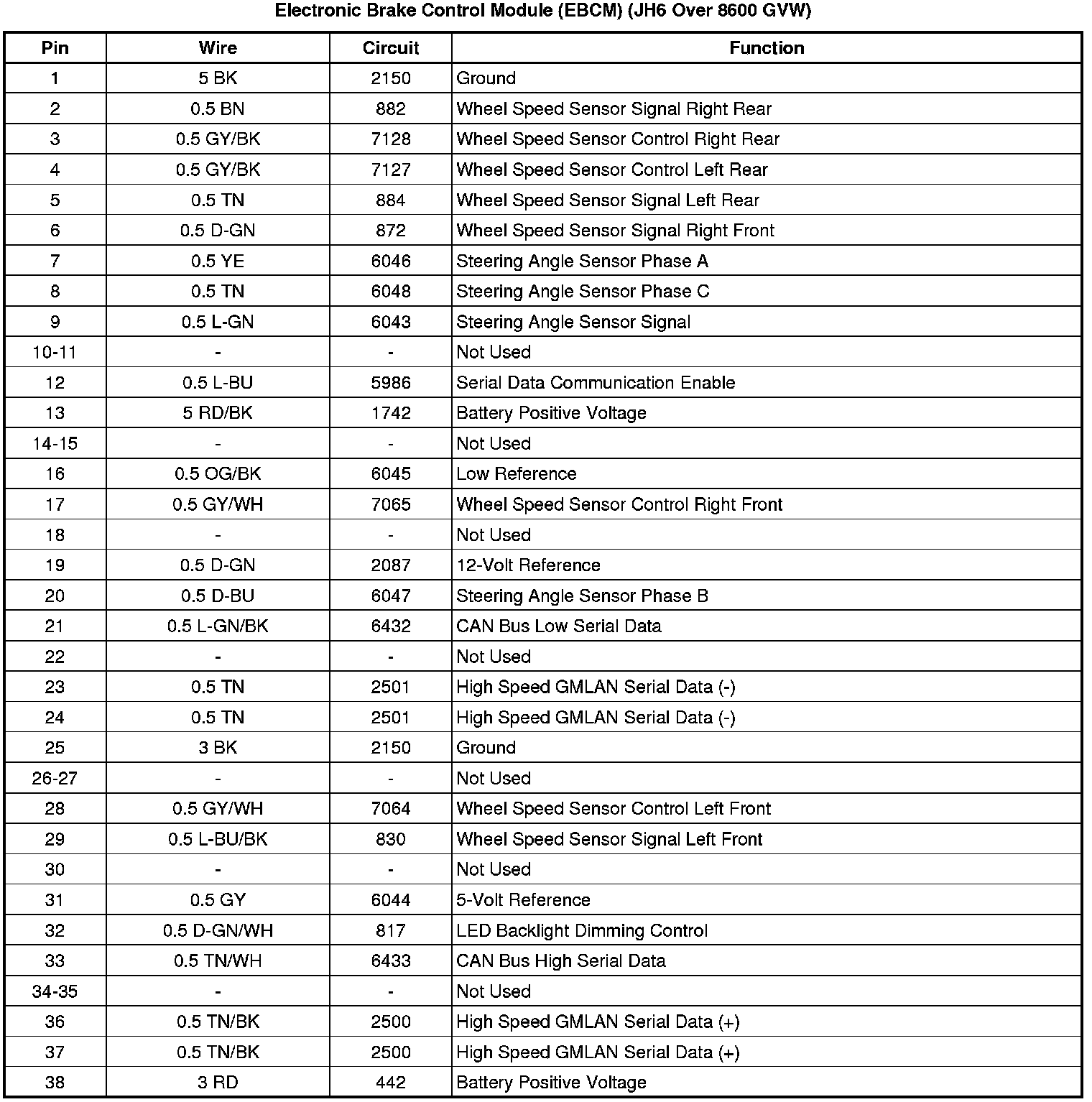

Electronic Brake Control Module
(EBCM) (JH6 Over 8600 GVW)
