Trailer Brake Control Module
Component Connector End Views

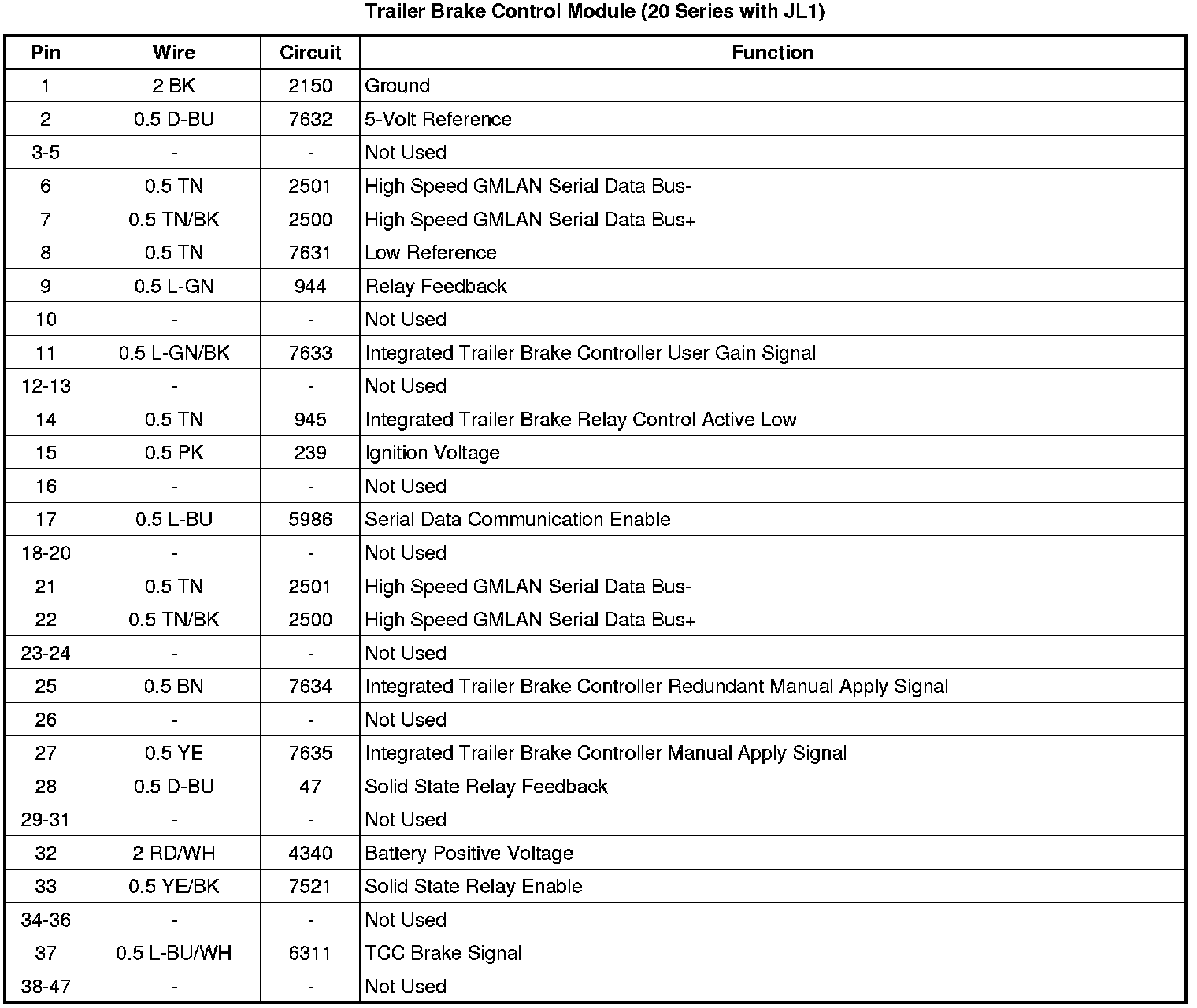

Trailer Brake Control Module
(20 Series with JL1)
