Passive Entry Power, Ground, Serial Data, and Antennas (ATH)

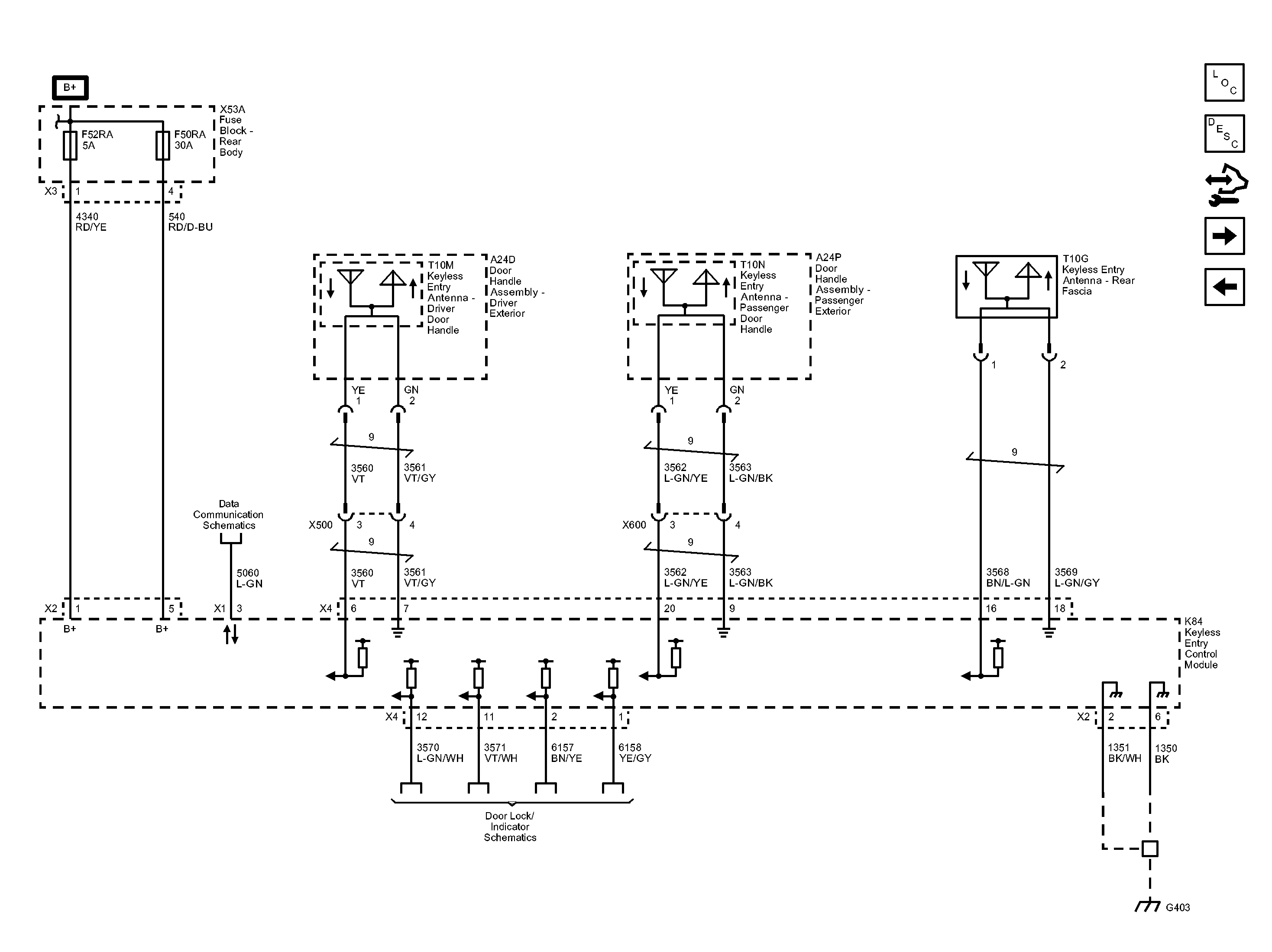

Fig 1: Passive Entry Power, Ground, Serial Data, and Antennas Wiring Schematic (ATH)
GM2838128Courtesy of GENERAL MOTORS COMPANY
