Front Sensors (UD5)

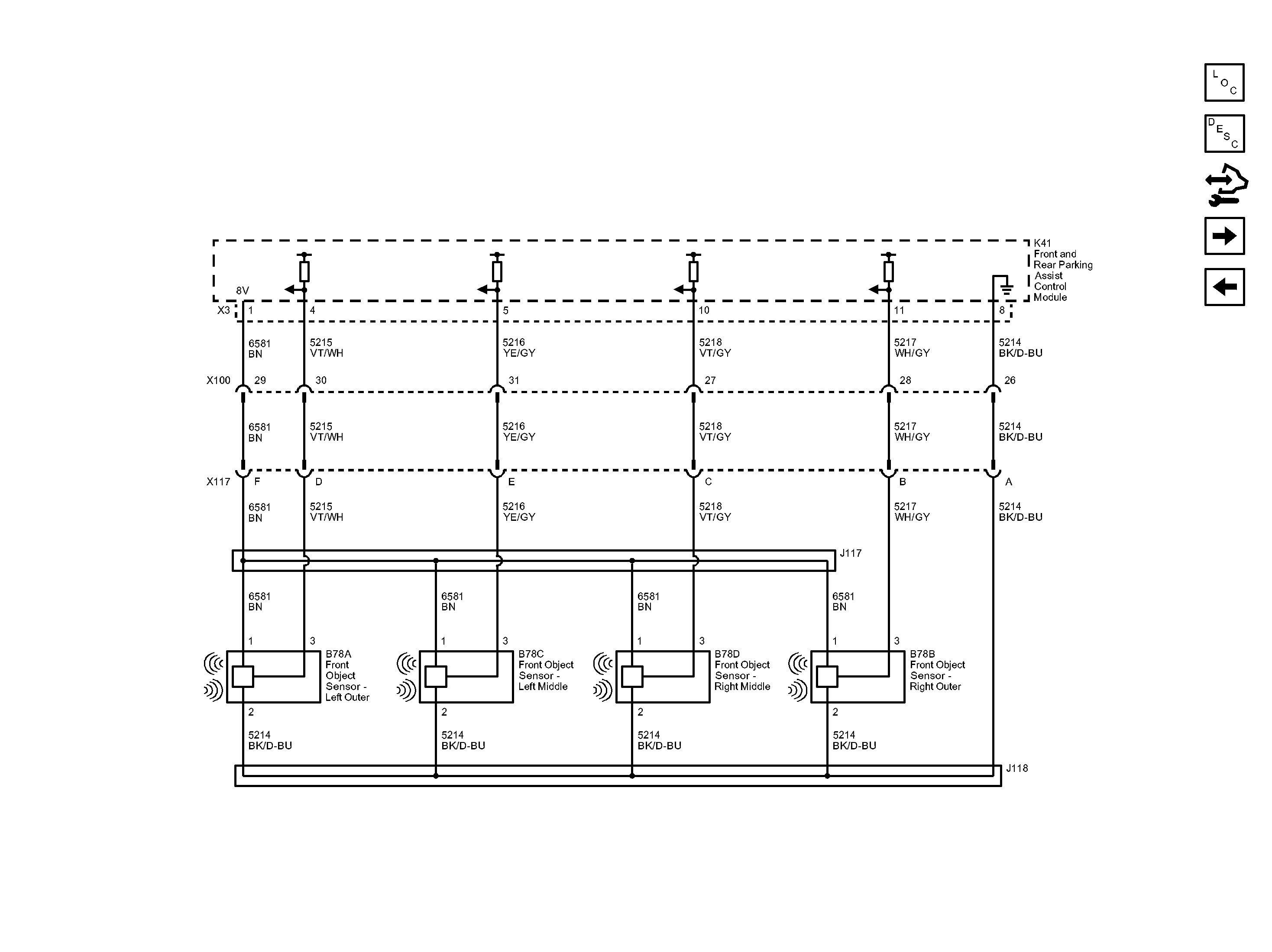

Fig 1: Front Sensors Wiring Schematic (UD5)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
