Secondary and Configurable Controls

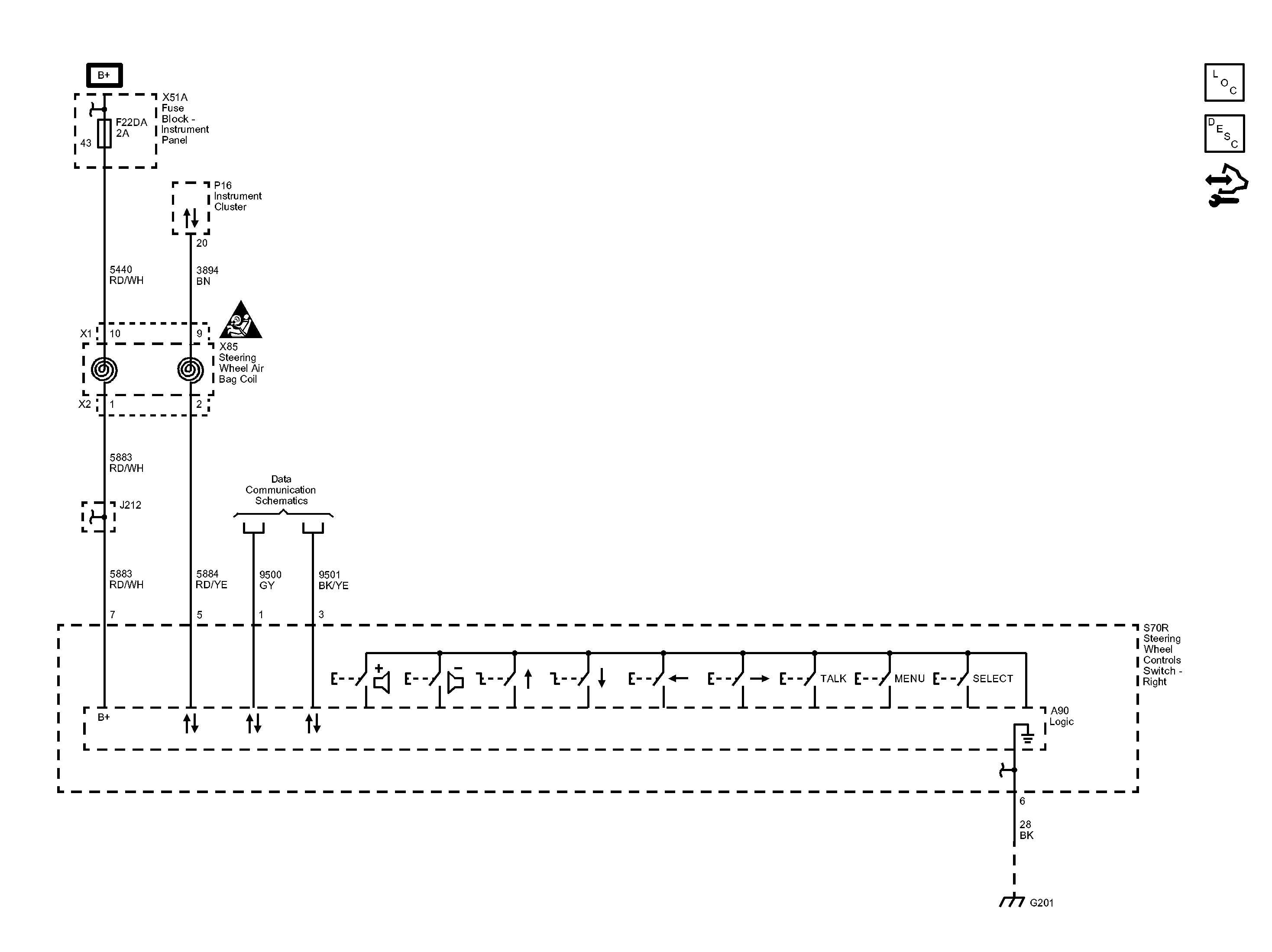

Fig 1: Secondary and Configurable Controls Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
