Battery Positive Fuse Block Cable Replacement

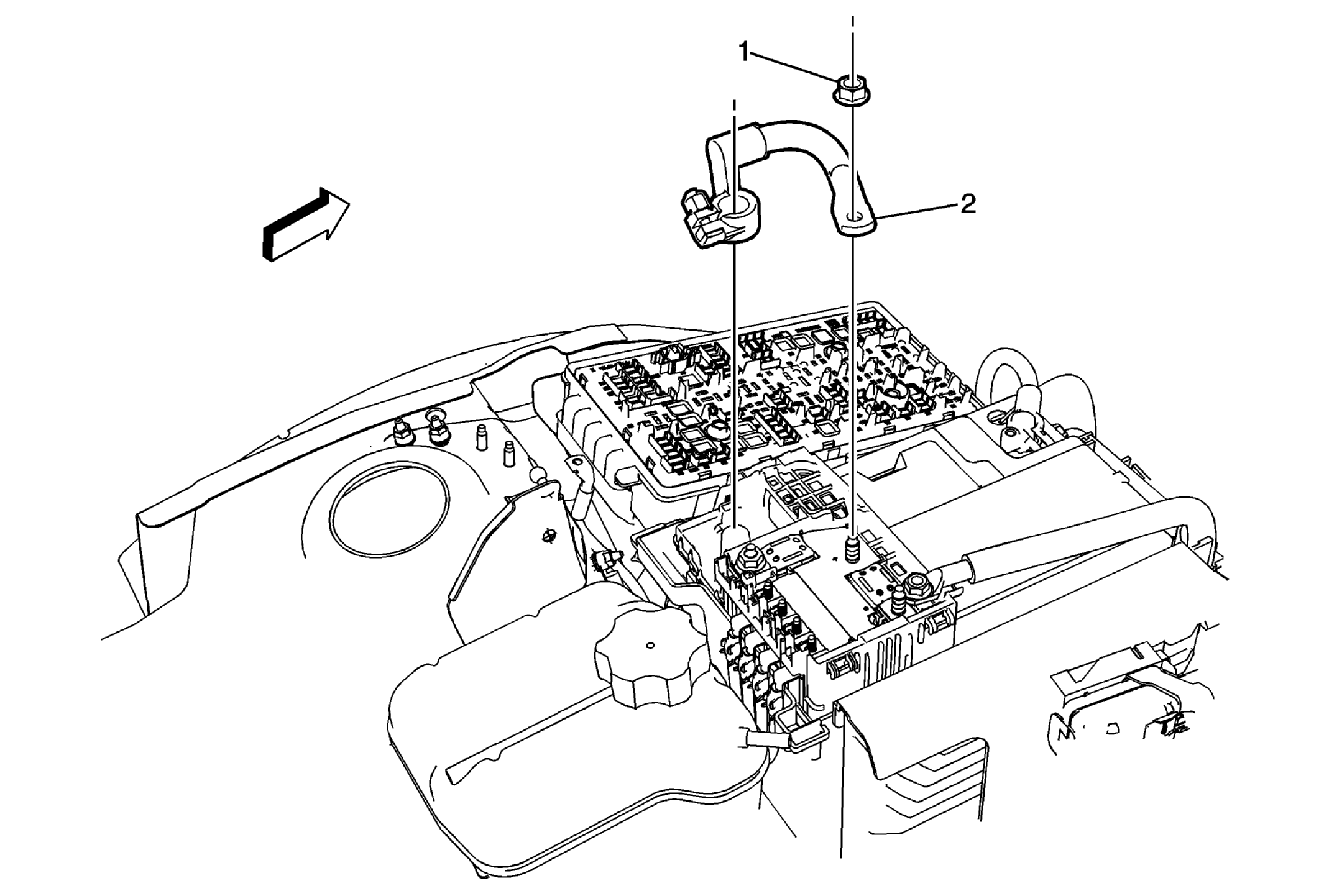

Fig 1: View Of Battery Positive Fuse Block Cable & Nut

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Open the battery fuse block cover. Remove the battery positive fuse block cable.
1	Nut CAUTION: Refer to Fastener Caution . Tighten 12 N.m (106 lb in)
2	Battery Positive Fuse Block Cable

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Open the battery fuse block cover.
Remove the battery positive fuse block cable.

Nut

CAUTION:

Tighten
12 N.m (106 lb in)

Battery Positive Fuse Block Cable
