Installation Procedure

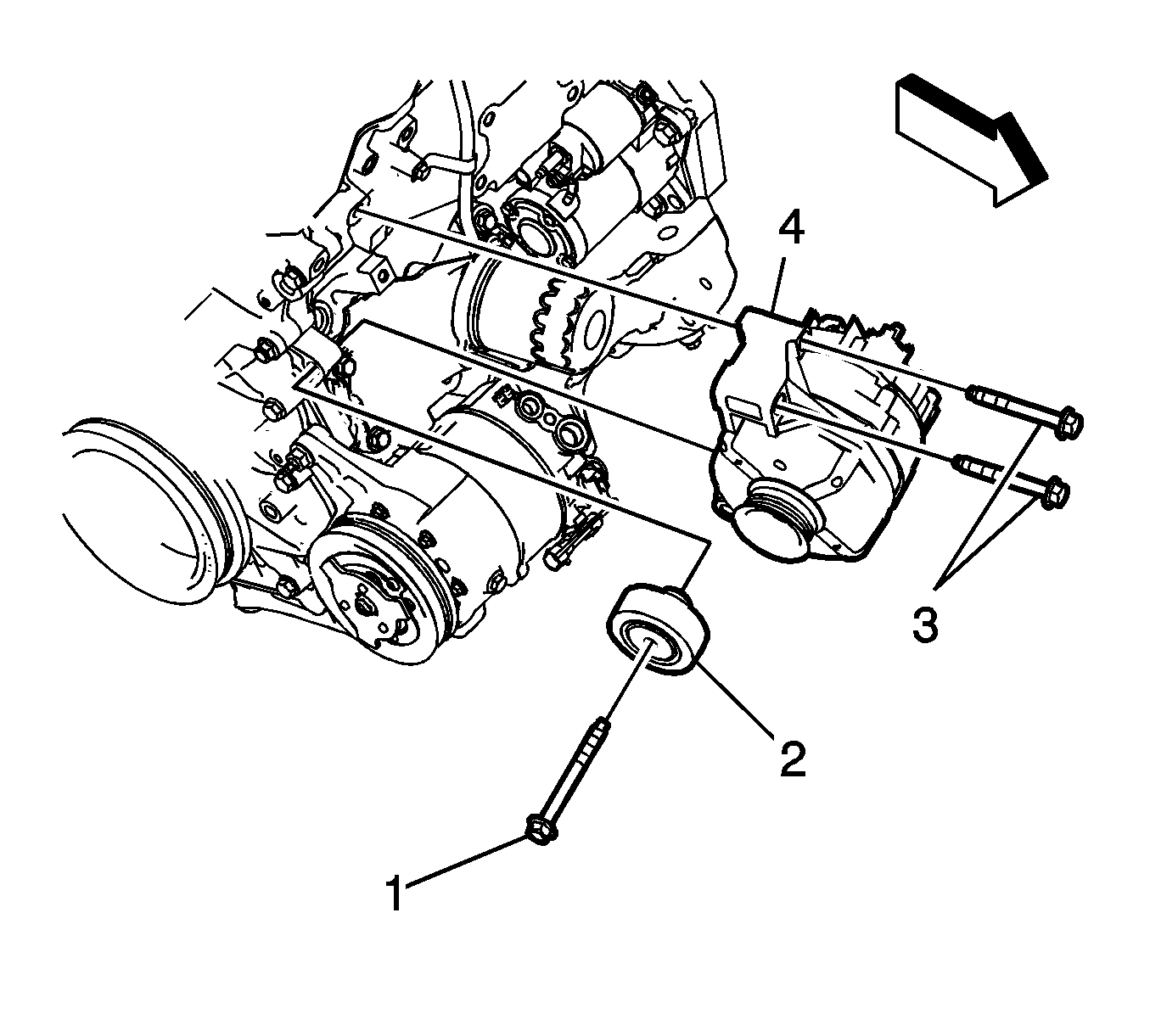

    Fig 1: Idler Pulley Bolt And Generator
    GM2196009Courtesy of GENERAL MOTORS COMPANY
  1. Position the generator (4) to the engine.
  2. Loosely install the generator fasteners (3).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the idler pulley (2) and tighten the fastener (1) to 58 N.m (43 lb ft).
  4. Tighten the generator fasteners (3) to 58 N.m (43 lb ft).

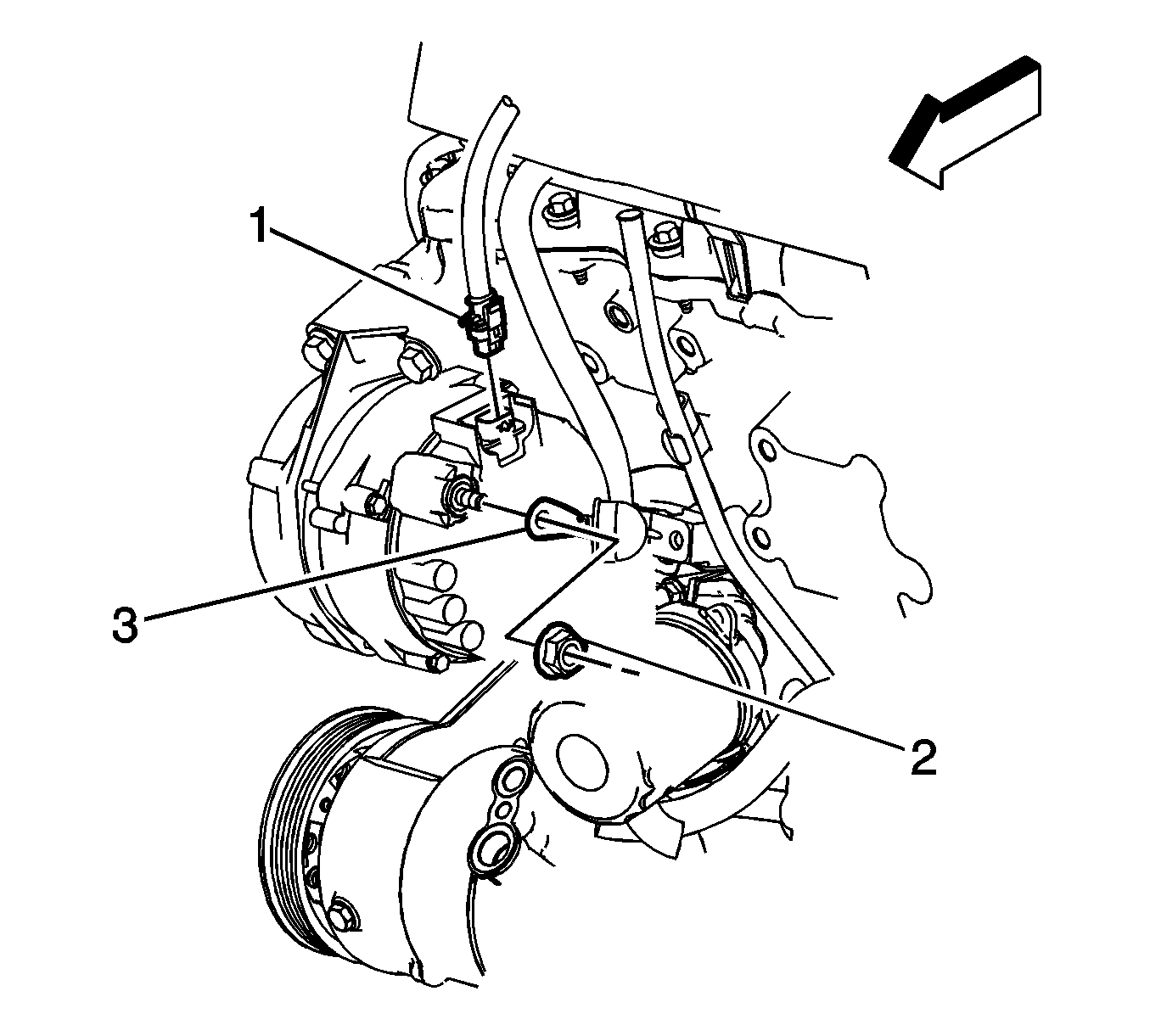

    5. Fig 2: Identifying Generator, Electrical Harness Connector & Nut
    GM2196013Courtesy of GENERAL MOTORS COMPANY
  5. Install the drive belt. Refer to Drive Belt Replacement .
  6. Connect the engine harness electrical connector to the generator (1).
  7. Install the positive battery cable terminal to the generator.
  8. Install the positive battery cable nut at the generator and tighten to 15 N.m (11 lb ft).
  9. Position the positive battery cable boot at the generator terminal.
  10. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
