Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

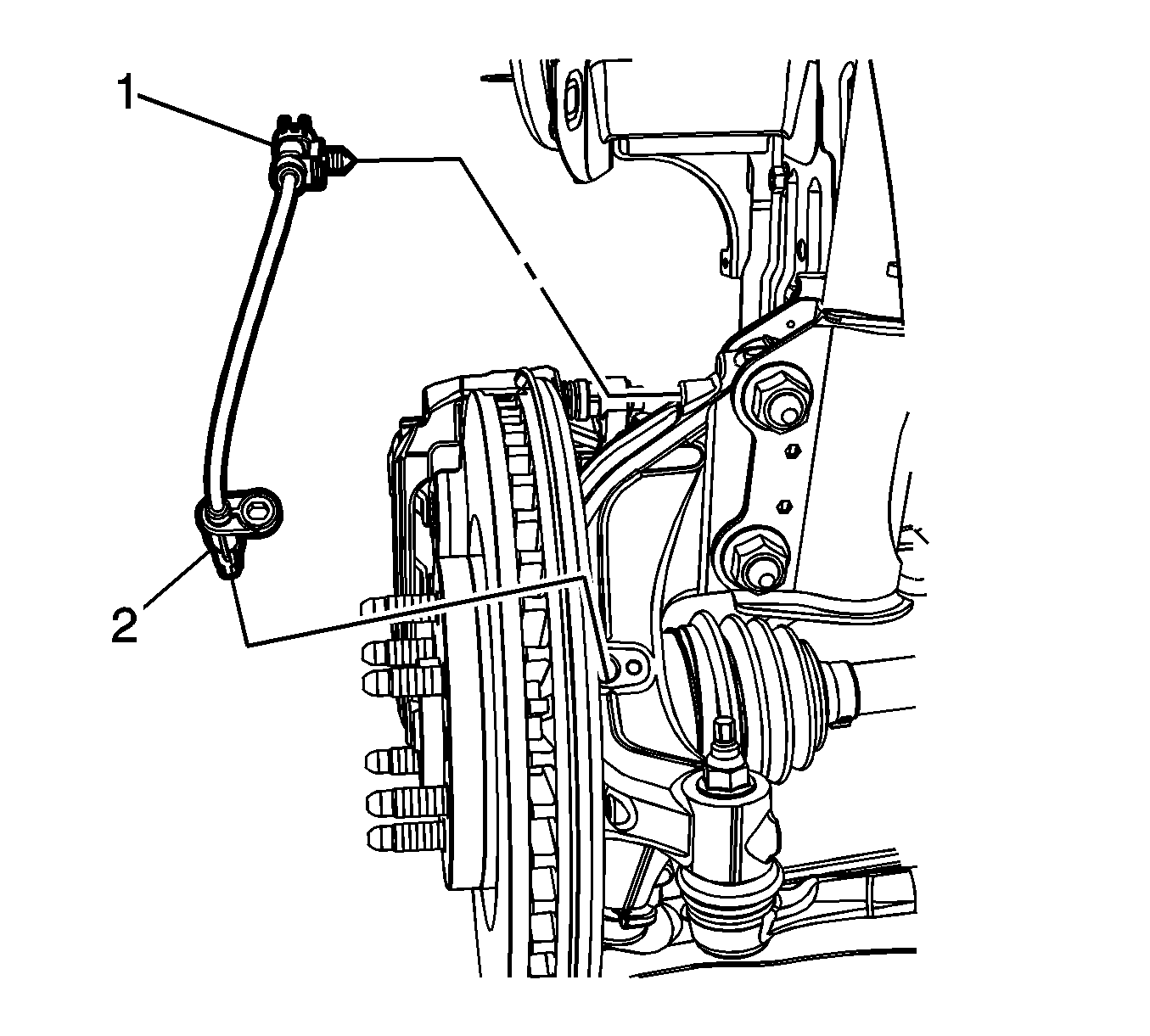

    Fig 1: View Of Wheel Speed Sensor & Electrical Connector
    GM2217492Courtesy of GENERAL MOTORS CORP.
  1. Connect the wheel speed sensor electrical connector (1) and secure the connector to the steering knuckle.
  2. Install the wheel speed sensor (2) to the steering knuckle.

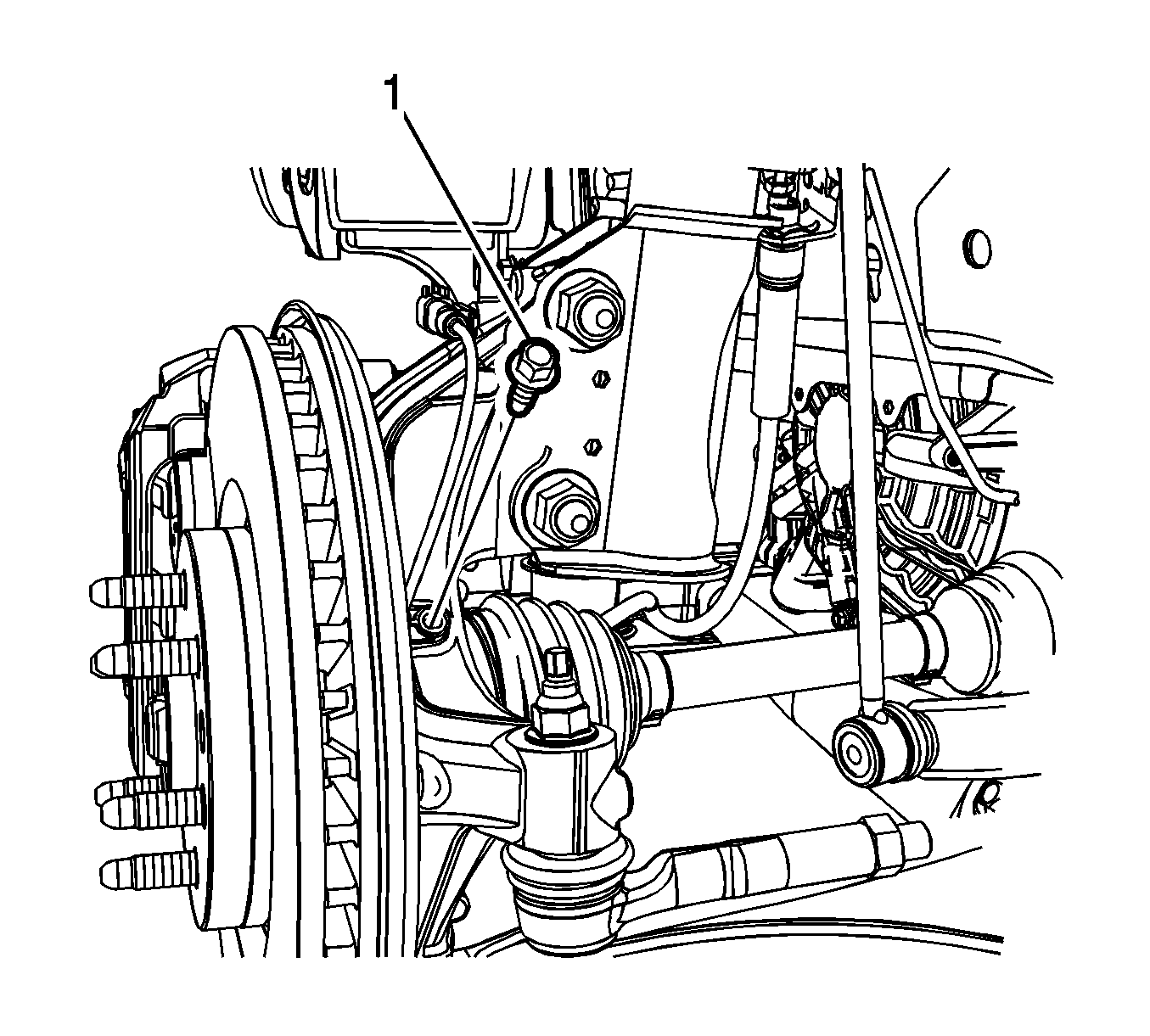

    3. Fig 2: Identifying Wheel Speed Sensor Bolt
    GM2217490Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Install the wheel speed sensor bolt (1) and tighten to 9 N.m (80 lb in).
  4. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  5. Perform the Diagnostic System Check - Vehicle .
