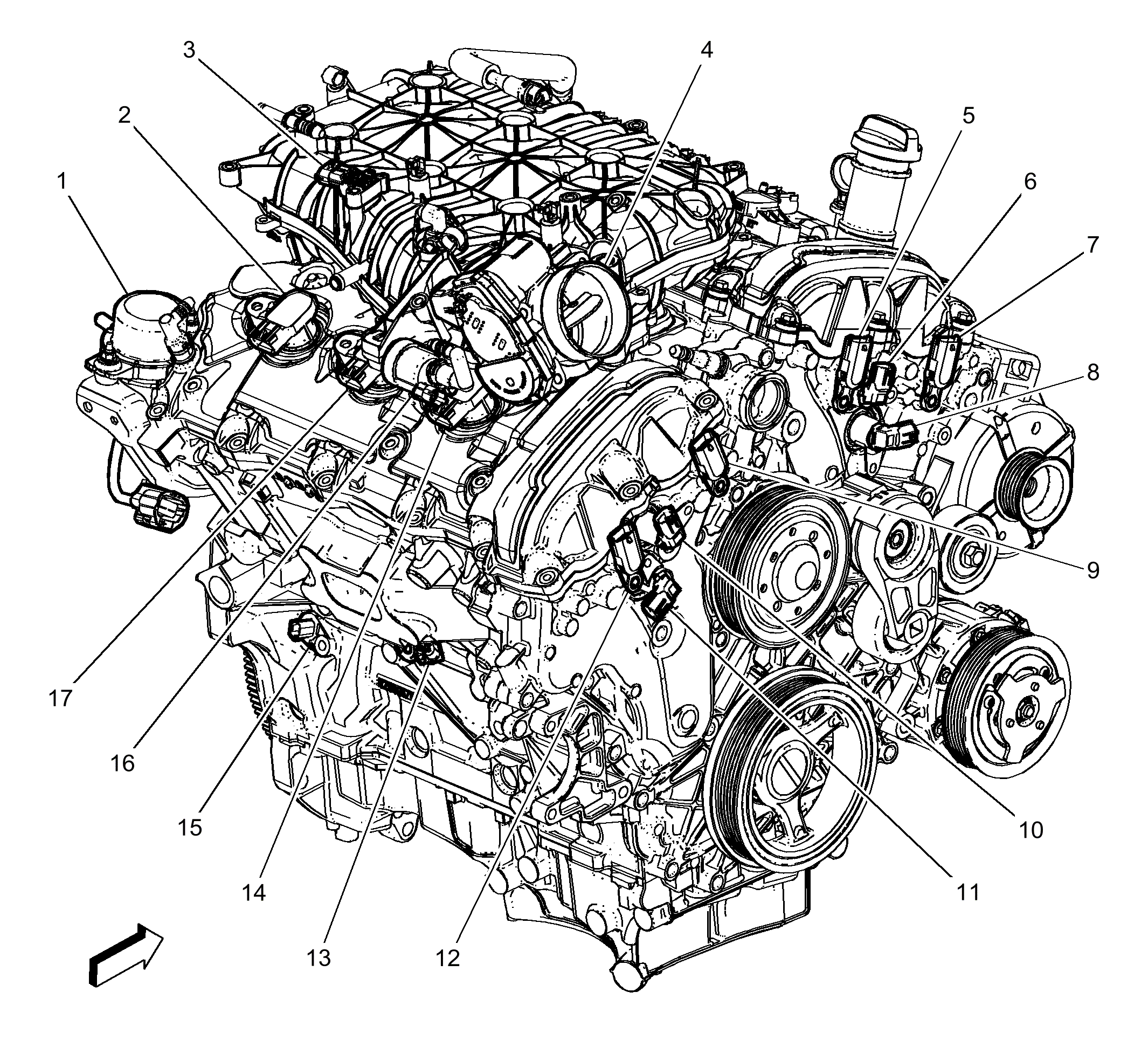

Right Rear of the Engine Components
Right Rear of the Engine Components
| Items |
|---|
| 1: M9 Brake Booster Pump Motor M9 Brake Booster Pump Motor |
| 2: T8E Ignition Coil 5 T8E Ignition Coil 5 |
| 3: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 4: Q38 Throttle Body Q38 Throttle Body |
| 5: B23D Camshaft Position Sensor - Bank 2 Intake B23D Camshaft Position Sensor - Bank 2 Intake |
| 6: Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake |
| 7: B23C Camshaft Position Sensor - Bank 2 Exhaust B23C Camshaft Position Sensor - Bank 2 Exhaust |
| 8: Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust |
| 9: B23B Camshaft Position Sensor - Bank 1 Intake B23B Camshaft Position Sensor - Bank 1 Intake |
| 10: Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake |
| 11: Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust |
| 12: B23A Camshaft Position Sensor - Bank 1 Exhaust B23A Camshaft Position Sensor - Bank 1 Exhaust |
| 13: B68A Knock Sensor 1 B68A Knock Sensor 1 |
| 14: T8A Ignition Coil 1 T8A Ignition Coil 1 |
| 15: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor |
| 16: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 17: T8C Ignition Coil 3 T8C Ignition Coil 3 |
