Audio Disc Player and USB Receptacle Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

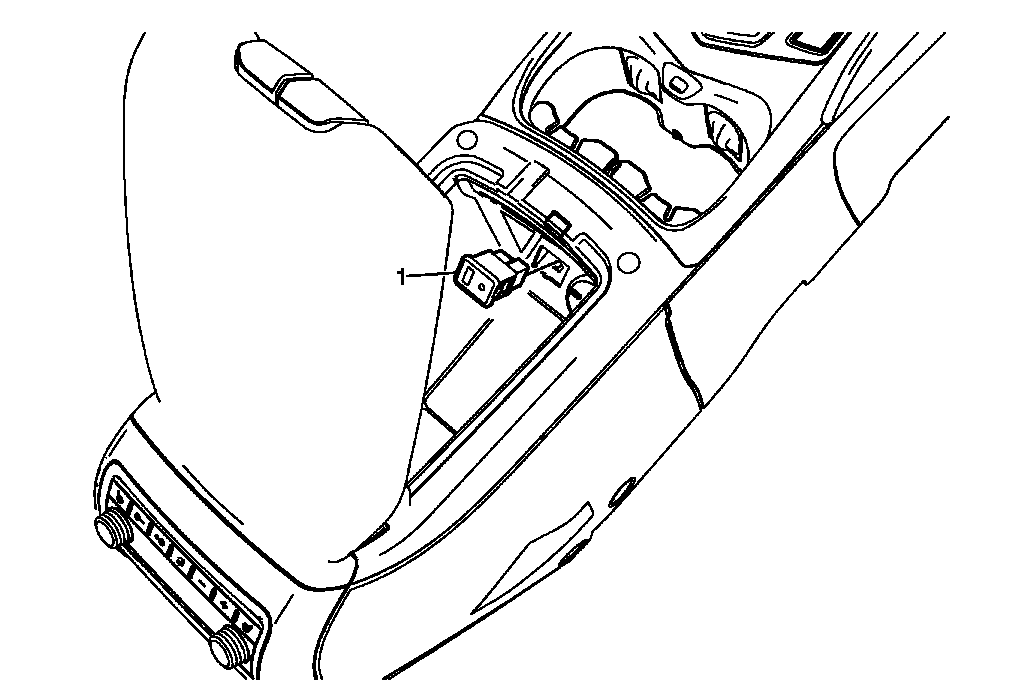

| Callout |
Component Name |
| 1 |
Audio Disc Player and USB Receptacle
Procedure:
Open arm rest and using a small flat bladed tool, release the receptacle. |
