Radar Sensor Module - Short Range Left Front

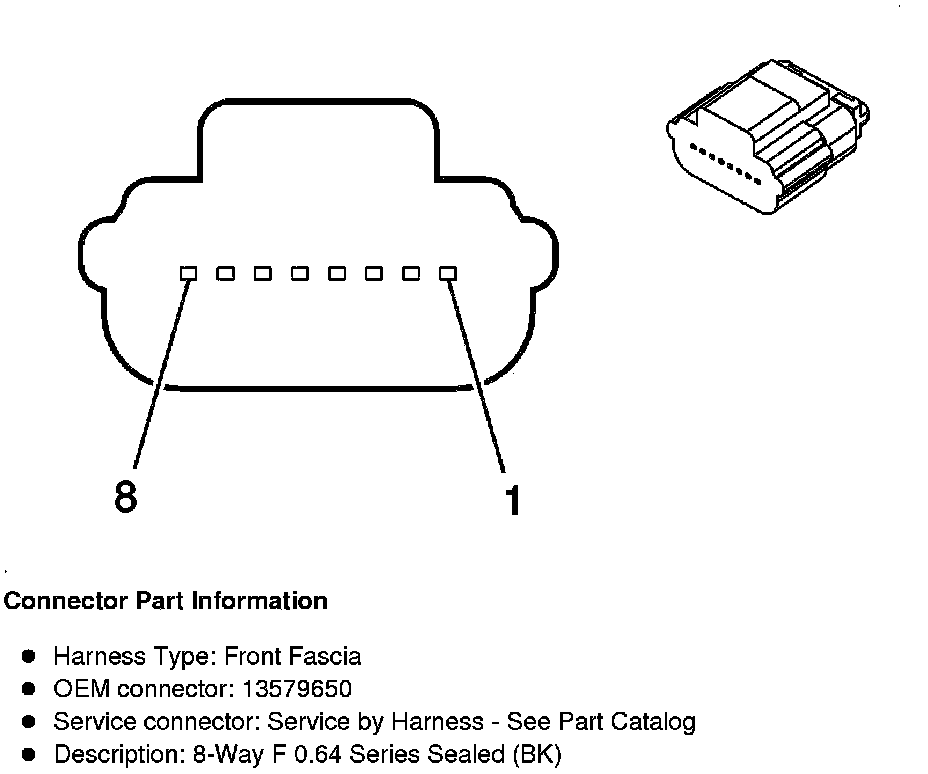

Component Connector End Views

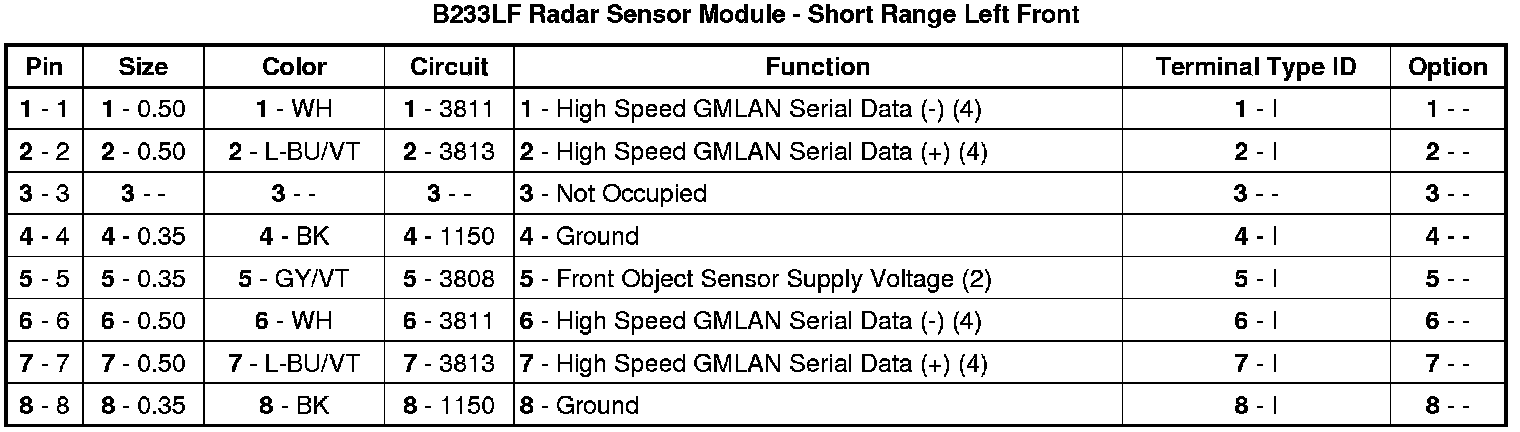

B233LF Radar Sensor Module - Short Range Left Front
