Front and Rear Parking Assist Control Module X1 (UD5/UD7)

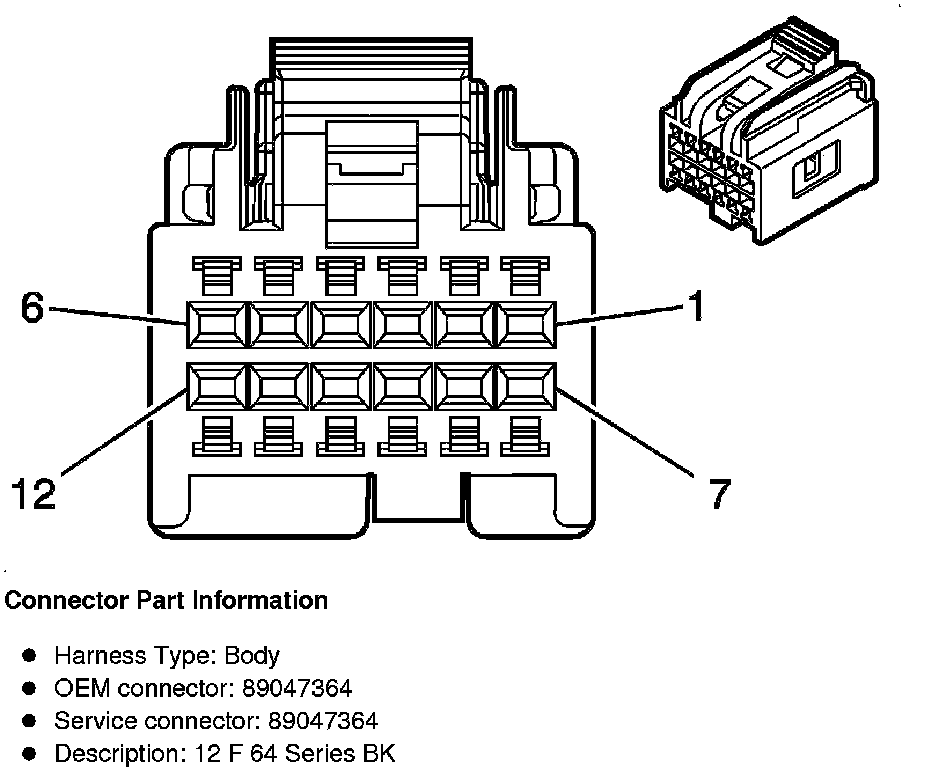

Component Connector End Views

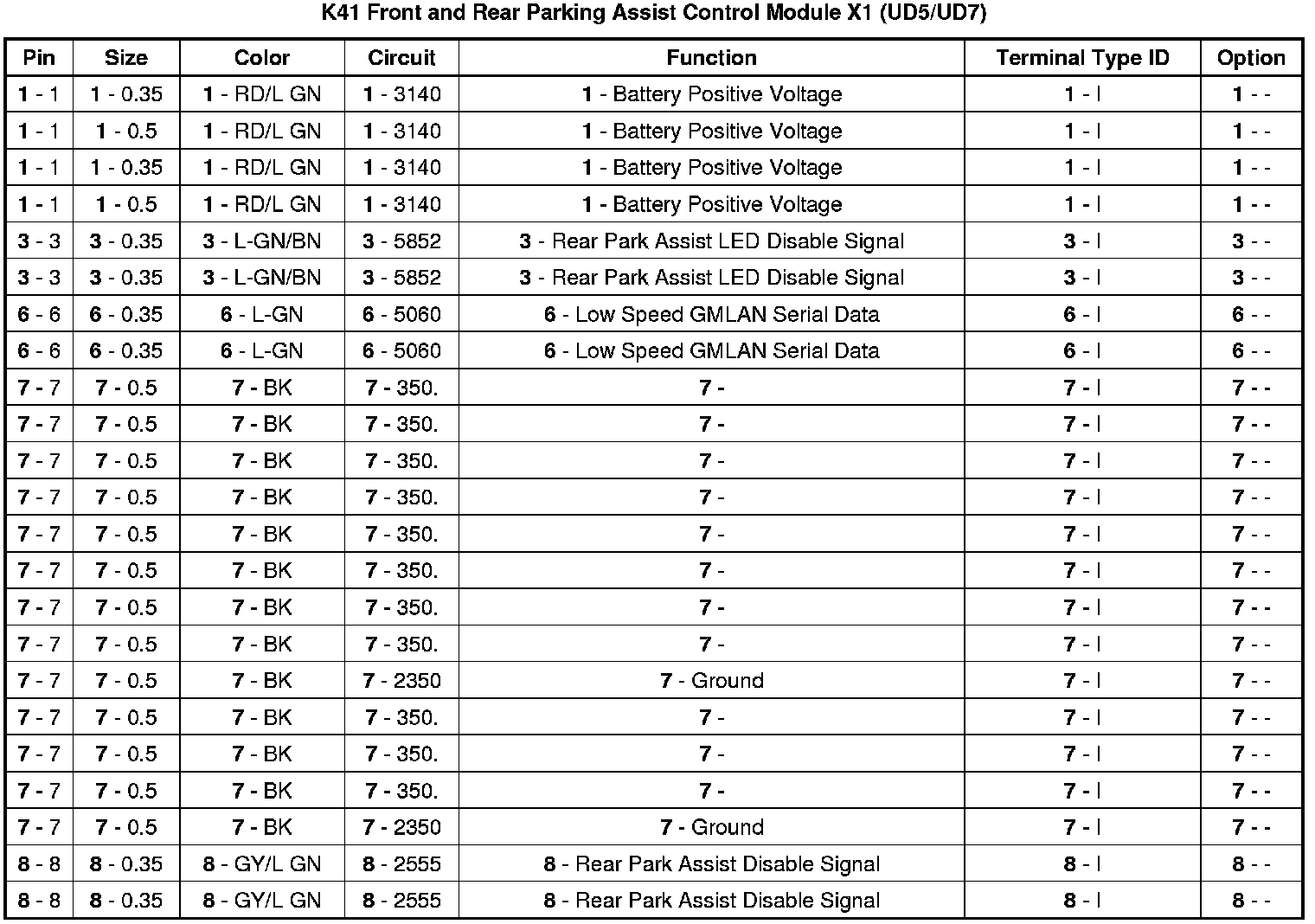

K41 Front and Rear Parking Assist Control Module X1 (UD5/UD7)
