Pedestrian Impact Detection Sensor - Upper Beam Front

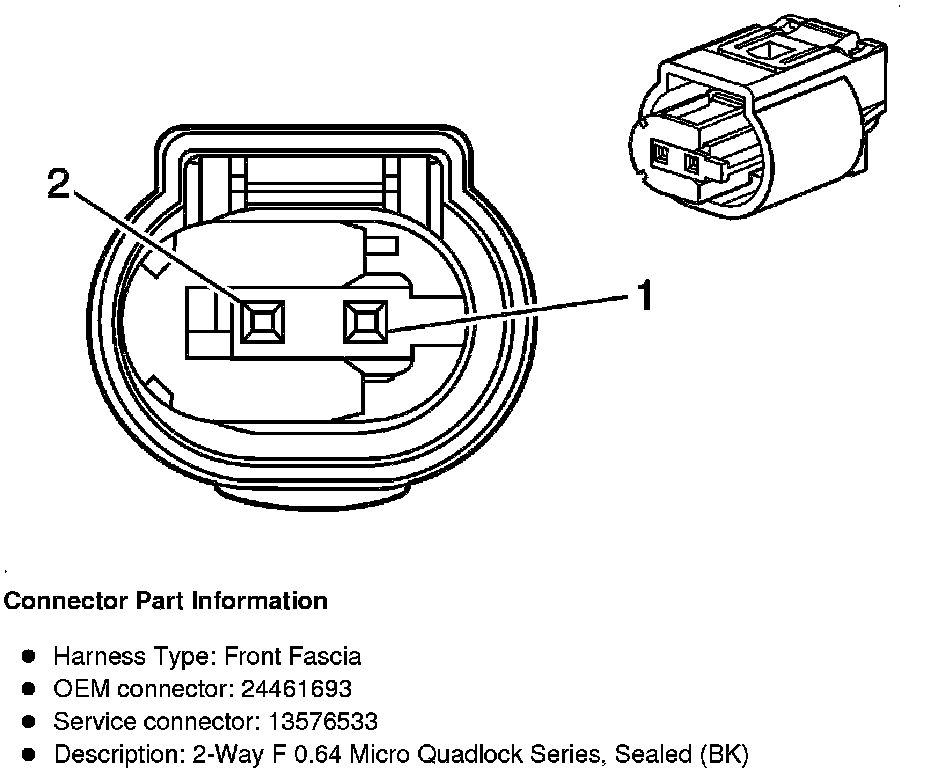

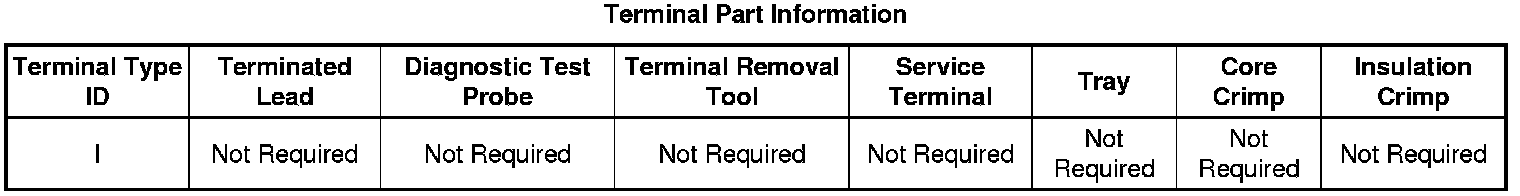

Component Connector End Views

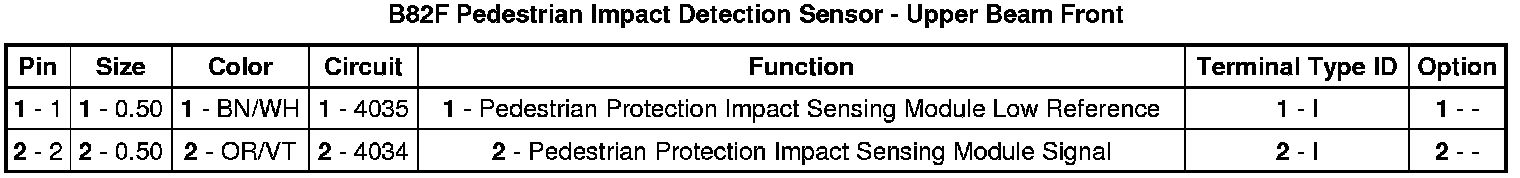

B82F Pedestrian Impact Detection Sensor - Upper Beam Front
