Steering Wheel Controls Switch - Left

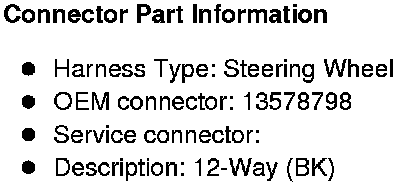

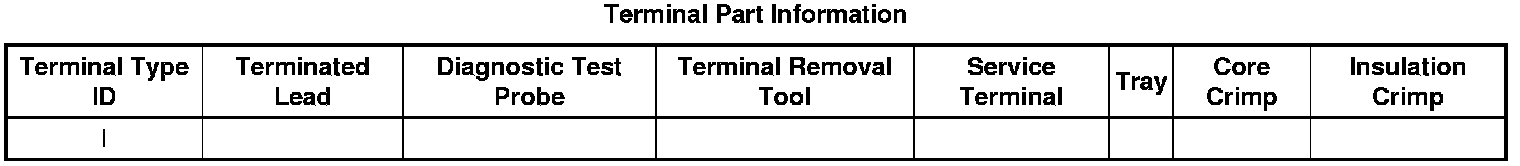

Component Connector End Views

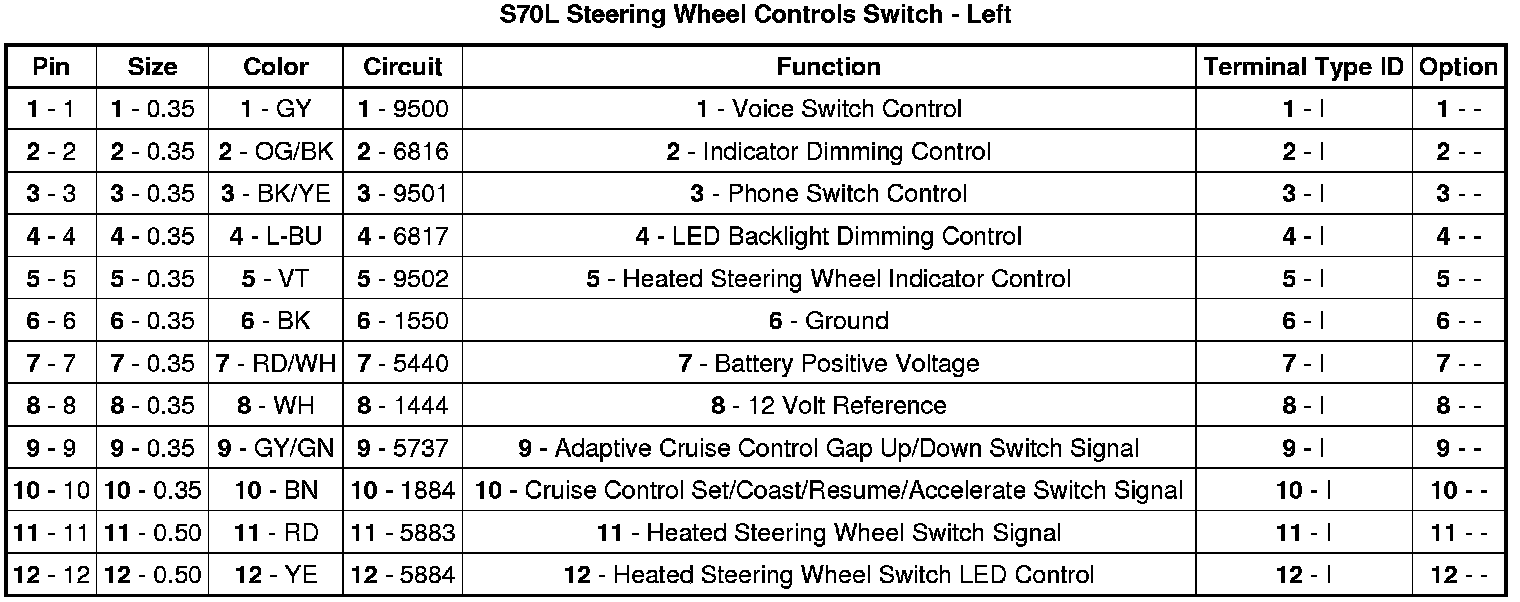

S70L Steering Wheel Controls Switch - Left
